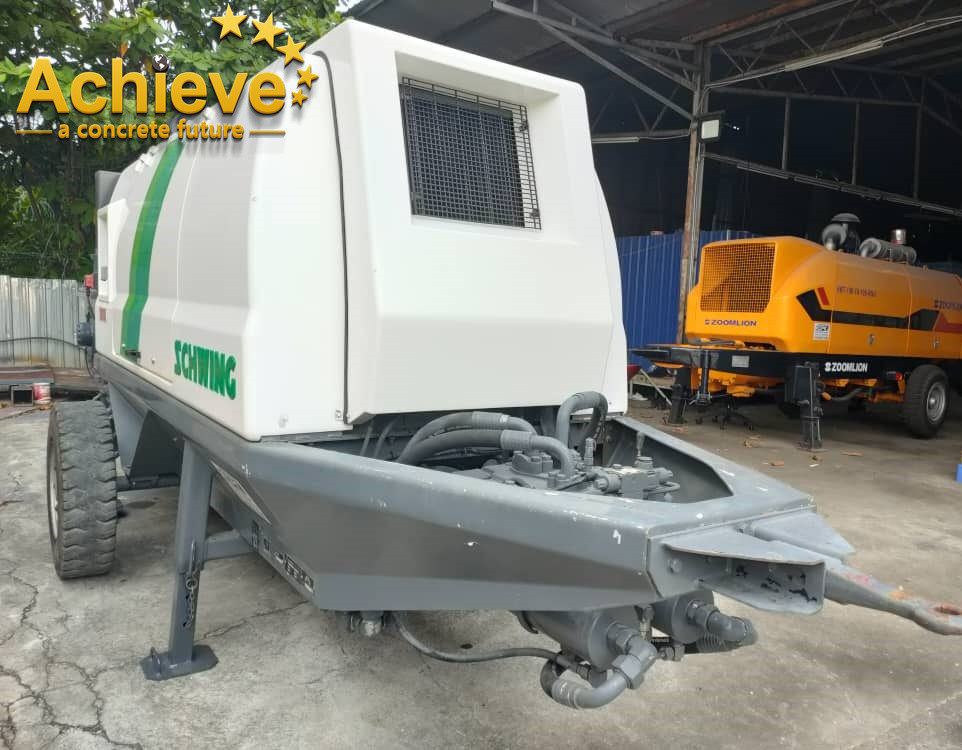

Second Hand Concrete Static Pump Schwing SP1800 German Made

Product Details:
Place of Origin: Germany
Brand Name: SCHWING
Model Number: SP1800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD26,000 FOB
Packaging Details: Export standard.
Delivery Time: 15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1

Detail Information

High Light:

Second Hand Concrete Static Pump


Schwing concrete static pump



Product Description

Usage/Application Buildings
Model Name/Number SP 1800 D
Brand/Make Schwing Stetter
Dead Weight Incl Oil Fuel 5200 Kg
Engine / Motor Capacity 81 kW
Nominal Speed 2100 rpm
Pumping Cylinder Diameter x Stroke 200 x 1600 mm
Differential Cylinder Drive Piston and Rod Side
Maximum Strokes 14 (Piston Side),24 (Rod Side) Per Minute
Maximum Concrete Pressure 112 (Piston Side),62 (Rod Side) bar
Capacity of Charging Hopper 600 Litres
Delivery Line 150 mm
Maximum Theoretical Concrete Output 42 (Piston Side),73 (Rod Side) m cube/hr.

All SCHWING concrete pumps have an output governed hydraulic pump that ensures that the prime mover is never overloaded, the automatic governor splits available engine output optimally into oil flow and oil pressure and allows the concrete pump to run at the best possible output level. At the same time, the manual de-stroker valve can be used to set the pump to a required fine tuning to set stroke rate and output independent of the automatic governor. The open circuit, combined with the SCHWING designed “Hi-flow” spool block ensures minimum heat generation in the hydraulics, therefore there are negligible output losses and minimum stress on the hydraulic components.
