China Putzmeister Concrete Pump Parts manufacturer

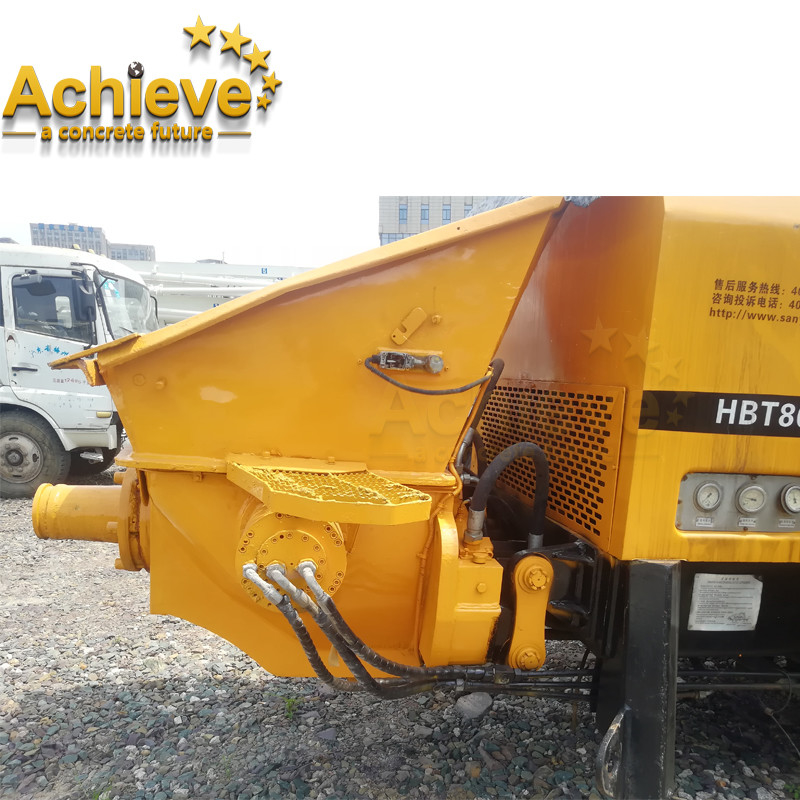

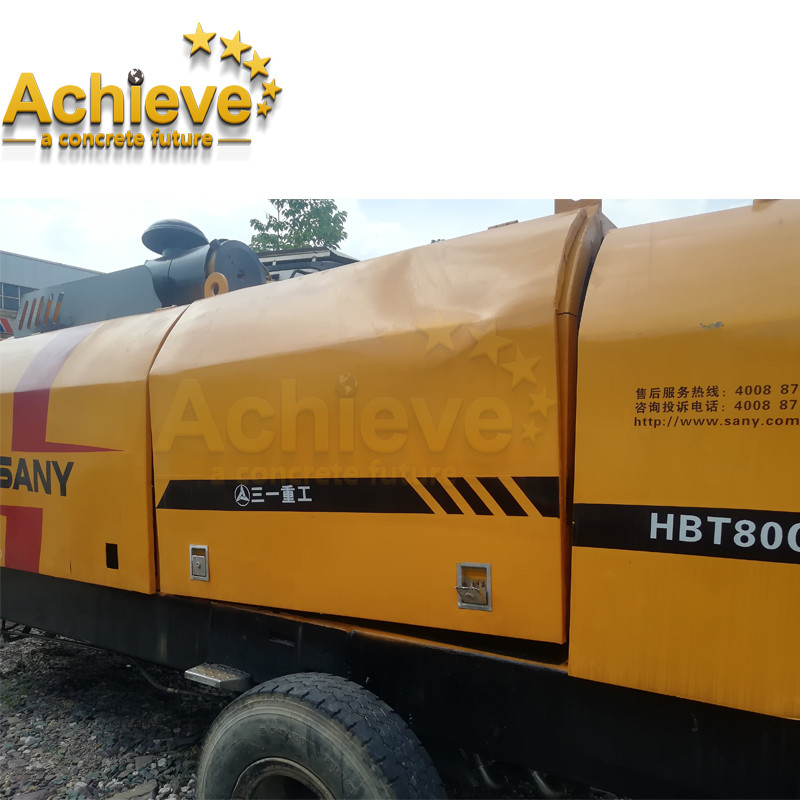

Trailer Mounted Used SANY Concrete Pump Powered Delivery 7300kg

Product Details:
Place of Origin: Hunan, China
Brand Name: SANY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $20,000.00/Pieces >=1 Pieces
Delivery Time: 30 DAYS
Supply Ability: 5 Unit/Units per Month

Detail Information

Condition: Used Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Concrete Pumping
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Warranty: Unavailable
After Warranty Service: Video Technical Support, Online Support, Spare Parts Local Service Location: None
After-sales Service Provided: Video Technical Support, Online Support Port: All China Ports
High Light:

Powered Used SANY Concrete Pump

,

Delivery Used SANY Concrete Pump

,

7300kg trailer mounted concrete pump

Product Description

12h Continuous Pumping:



SANY Trailer-mounted Concrete Pump Lives up to Its Mission During the Wushan River Bridge Steel Pipe Concrete Pumping project, Sany trailer mounted concrete pumps set three world records. Steel pipe concrete pumping: length of 560m, continuous volume of 600m3 and continuous pumping time of 12 hours.



Continuous Pouring of 60,000m3 concrete completed in60h



During the concrete pouring of Shanghai Tower,reputed as China's tallest skyscraper (height:632m), the entire foundation pouring project employed 18 pieces of SANY equipment (including four trailermounted concrete pumps). The continuous pouring of 60,000 m3 concrete was completed within 60 hours.


Model

HBT8018C-5S(T3)



Place of Production



China



Max. Delivery Pressure (theoretical)

Low Pressure / High Pressure (Mpa)



10/18



Max. Concrete Output (theoretical)

Low Pressure / High Pressure (m3/h)



85/50



Motor Rated Power (kW/rpm)

180



Delivery Cylinder Bore (mm) × Strok (mm)

Φ200×1800



Hopper Capacity (m3) × Feeding Height (mm)

0.7×1420



Dimension (L*W*H)  (mm)

7330×2125×2685



Gross Weight (kg)

7300



Max. Aggregate Size (mm)



Delivery Pipe

Φ150 mm

50

Φ120 mm

40



Type



S-Valve



Slump of Concrete (mm)

100~230
