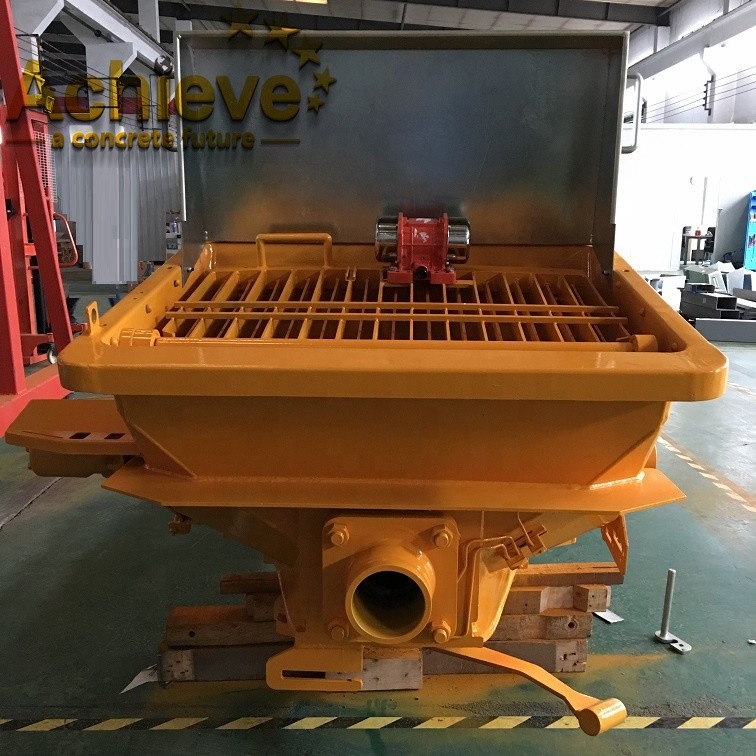

TK70 NEW Concrete Pump System Module For Putzmeister TK40 TK50 TK60 TK70

TK70 NEW Concrete Pump System Module For Putzmeister TK40 TK50 TK60 TK70

TK70 NEW Concrete Pump

TK40 NEW Concrete Pump

TK50 concrete pump system

Place of Origin:

Hunan, China

Brand Name:

ACHIEVE

Certification:

EXPORT

Contact Us

Request A Quote
Product Details
Applicable Industries:
Construction Works , Concrete Pumping
Showroom Location:
None
Condition:
New
Power Type:
Diesel
Weight:
1500KGS
Warranty:
1 Year
UNIQUE SELLING POINT:
Easy Maintenance
Max. Vertical Conveying Distance:
100M
Max. Horizontal Conveying Distance:
500M
Productivity:
58M3/H
Machinery Test Report:
Not Available
Video Outgoing-inspection:
Provided
Marketing Type:
New Product 2021
Warranty Of Core Components:
1 Year
Core Components:
Motor, Bearing, Gear, Pump
Brand:
ACHIEVE
OEM:
PUTZMEISTER
After Warranty Service:
Video Technical Support, Online Support, Field Maintenance And Repair Service
Local Service Location:
None
After-sales Service Provided:
Video Technical Support, Field Installation, Commissioning And Training, Online Support
Product Description

TK70 Concrete Pump Pumping System Module for Putzmeister TK40/TK50/TK60/TK70



TK70 Concrete Pump Pumping System Module for Putzmeister TK40/TK50/TK60/TK70



Technical Data Sheet

NO.1 ITEM SPECIFICATION
1 Model TK70
2

Maimum Concrete Volumn Output

74yd3/hr (57m3/hr)

3

Max. Concrete Pumping Pressure

1,130 psi (78bar)

4

Maximum Aggregate Size

1.50” (38mm)

5

Diesel Engine Model

Cummins/Duetz

6

Horse Power

100 hp (75kw)

7

Material Cylinders

7” x 39” (180x1,000 mm)

8

Maximum Stokes per minute

31

9

Variable Volume Control

0 to Full

10

S-Valve (cast)

7” x 5” (180x125mm)

11

Number of Shift Cylinders

2

12

Hydraulic Tank Capacity

44 gal (167L)

13

Hopper Height

49” (1,245mm)

14

Hopper Capacity

9.5 cu ft (270L)

15

Outlet Diameter

5” HD (125mm)

16

Cable + Radio Remote Controled (Optional with HBC or AUTEC)

17

Aluminum Hpper Cover + Hopper grate + Vibrator motor



TK70 Concrete Pump Pumping System Module for Putzmeister TK40/TK50/TK60/TK70

TK70 Concrete Pump Pumping System Module for Putzmeister TK40/TK50/TK60/TK70



PUTZMEISTER / SCHWING / CIFA / ZOOMLION / SANY Pumping System Customized are all available! Contact us soon to get your pump!^^
