Place of Origin:
Hunan, China
Brand Name:
SANY
Certification:
9001-2000
Model Number:
HBT80
Contact Us
Video

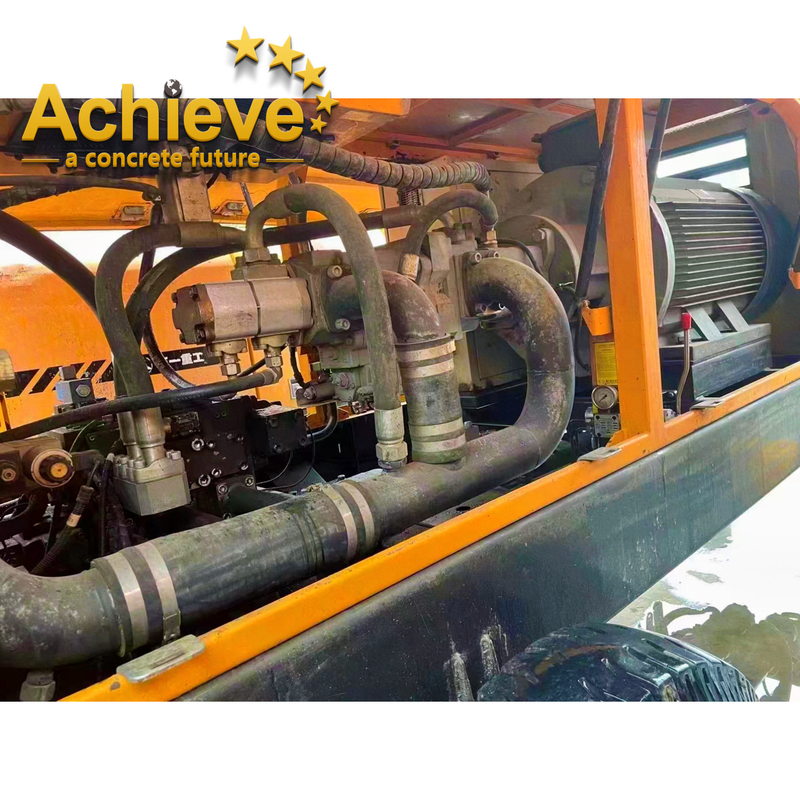

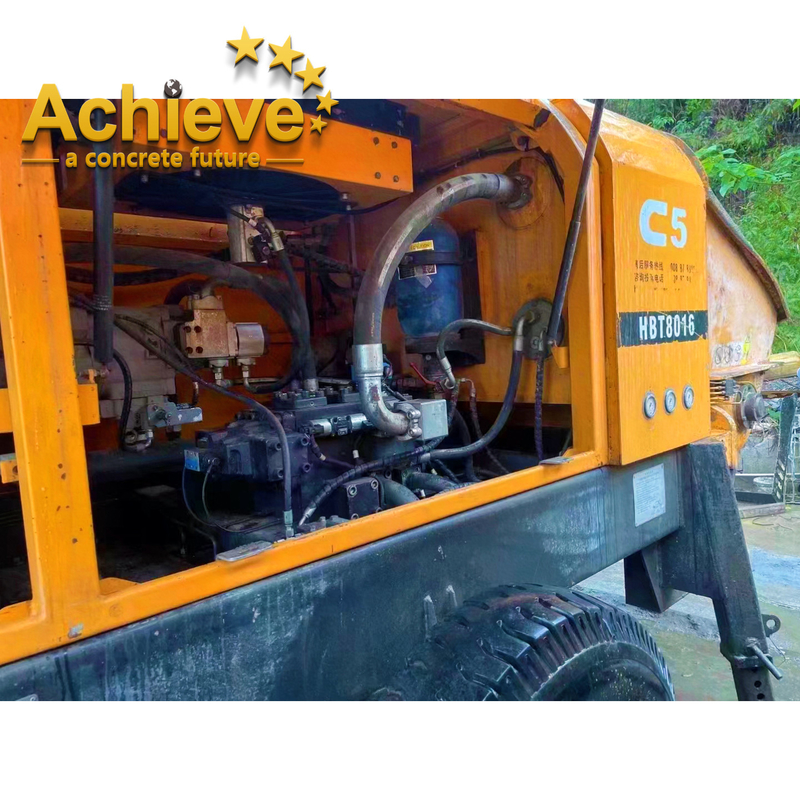

Used Construction Machinery Second Hand SANY HTB60C HBT80 Small Stationary Concrete Pump For Sale
|
Model |
HBT8018C-5S(T3) |
||
|
Place of Production |
China |
||
|
Max. Delivery Pressure (theoretical) Low Pressure / High Pressure (Mpa) |
10/18 |
||
|
Max. Concrete Output (theoretical) Low Pressure / High Pressure (m3/h) |
85/50 |
||
|
Motor Rated Power (kW/rpm) |
180 |
||
|
Delivery Cylinder Bore (mm) × Strok (mm) |
Φ200×1800 |
||
|
Hopper Capacity (m3) × Feeding Height (mm) |
0.7×1420 |
||
|
Dimension (L*W*H) (mm) |
7330×2125×2685 |
||
|
Gross Weight (kg) |
7300 |
||
|
Max. Aggregate Size (mm) |
Delivery Pipe |
Φ150 mm |
50 |
|
Φ120 mm |
40 |
||
|
Type |
S-Valve |
||
|
Slump of Concrete (mm) |
100~230 |
||
Send your inquiry directly to us
