China Putzmeister Concrete Pump Parts manufacturer

HZS180 Stationary Mini Ready Mix Concrete Plant 278kw 180 M3/H

Product Details:
Place of Origin: Changsha,China
Brand Name: Achieve
Model Number: HZS180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD120,000--200,000 per set
Packaging Details: nude
Delivery Time: 10-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month

Detail Information

Power(w): 278kw Power Type: Electric
Warranty: 12 Months Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Installation, Commissioning And Training Color: Customized, Blue, Changable, Yellow, Etc
Discharging Height: 4.1m Capacity: 180 M3/h
Product Name: Ready Mixed Concrete Batching Plant Type: Fixed Concrete Batching Plant
Application: Building Works, Construction Projects, Bridges, Docks, Airport Control System: Automatic PLC Control
Max. Aggregate Size(mm): 60/80mm Name: HZS180 Stationary Ready Mixed Concrete Batching Plant
Cement Silo: 100t,150t,200t Productivity: ≤180m3/h
Mixer: SICOMA MAO3000
High Light:

278kw Mini Ready Mix Concrete Plant

,

180 m3/h Mini Ready Mix Concrete Plant

,

HZS180

Product Description

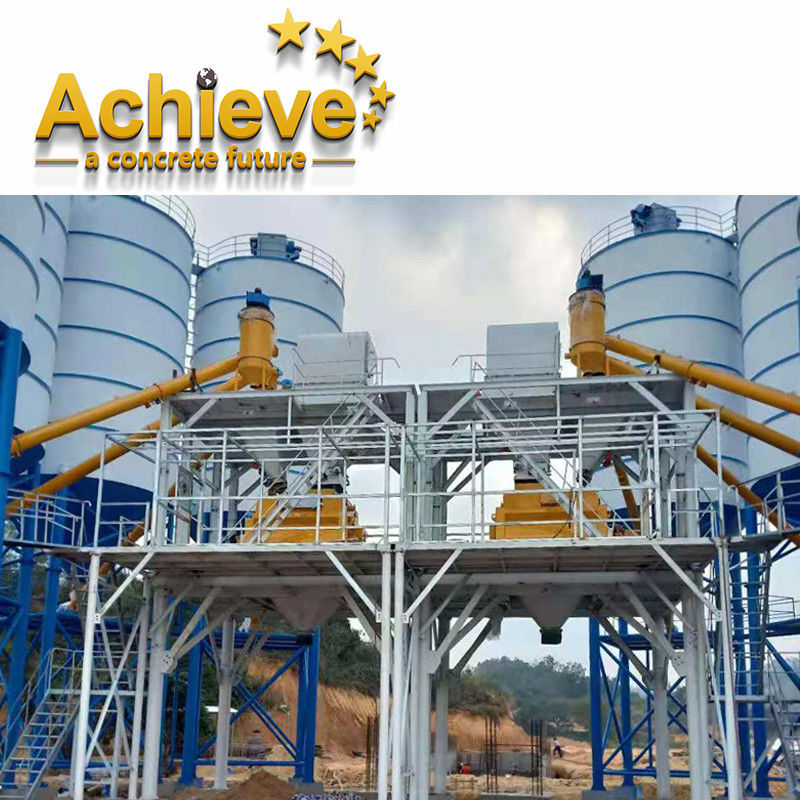

HZS180 stationary ready mixed concrete batching plant

HZS180 Stationary Mini Ready Mix Concrete Plant 278kw 180 M3/H 0

HZS180 concrete batching plant Product installation:
HZS180 Stationary Mini Ready Mix Concrete Plant 278kw 180 M3/H 1

HZS180 concrete batching plant Product configuration:
1. ready mix concrete plant SICOMA MAO3000 Mixer
HZS180 Stationary Mini Ready Mix Concrete Plant 278kw 180 M3/H 2

2. PLC Control system for fully automatic concrete batching plant
HZS180 Stationary Mini Ready Mix Concrete Plant 278kw 180 M3/H 3

3. Aggregate batching machine

HZS180 Stationary Mini Ready Mix Concrete Plant 278kw 180 M3/H 4

4. Belt Aggregate conveyor for belt type concrete batching plant
HZS180 Stationary Mini Ready Mix Concrete Plant 278kw 180 M3/H 5


5. Bolted Cement SILO

HZS180 Stationary Mini Ready Mix Concrete Plant 278kw 180 M3/H 6HZS180 Stationary Mini Ready Mix Concrete Plant 278kw 180 M3/H 7


6. cement screw conveyor

HZS180 Stationary Mini Ready Mix Concrete Plant 278kw 180 M3/H 8



7. The main structure

HZS180 Stationary Mini Ready Mix Concrete Plant 278kw 180 M3/H 9





HZS180 concrete batching plant Specification:
Parameter of HZS180
Theoretical Production 180m3/h
Mixer Model JS3000
Mixing Power 2×55Kw
Cycle Time 60s
Aggregate Size ≤80mm
Cement Silo Volume 4×150T
Capacity of Grading Station 4200L
Aggregate Bin Volume 4×22m3
Max.Production Rate of Belt conveyor 500t/h
Max.Production Rate of Spiral Conveyor 180t/h
Discharge Height 4m
Installed Capacity 300kw
Weighing Accuracy of Aggregate (600-3000)±2%kg
Weighing Accuracy of Cement (200-900)±1%kg
Weighing Accuracy of Fly Ash (150-600)±1%kg
Weighing Accuracy of Water (150-400)±1%kg
Weighing Accuracy of Additive (10-30)±1%kg


HZS180 Stationary Mini Ready Mix Concrete Plant 278kw 180 M3/H 10
