HZS35 Stationary Concrete Batching Plant Ready Mixed JS750 3.8m

Product Details:
Place of Origin: Changsha,China
Brand Name: Achieve
Model Number: HZS35
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000--60000 per set
Packaging Details: nude
Delivery Time: 10-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month

Detail Information

Application: Building Works, Construction Projects, Bridges, Docks, Airport Power Type: Electric
Mixer: JS750 Condition: New
Material: Steel After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Installation, Commissioning And Training
Color: Customized, Blue, Changable, Yellow, Etc Discharging Height: 3.8m, 3800 Mm, 0.8--1.2m, 3800mm /3900mm, 4m
Capacity: 35m3/h Product Name: Concrete Batching Plant
Control System: Automatic PLC Control Cement Silo: 50t,100t
Productivity: ≤35m3/h
High Light:

JS750 Stationary Concrete Batching Plant

,

3.8m Concrete Batching Plant

,

HZS35

Product Description



HZS35 concrete batching plant Product configuration:
1. mixer

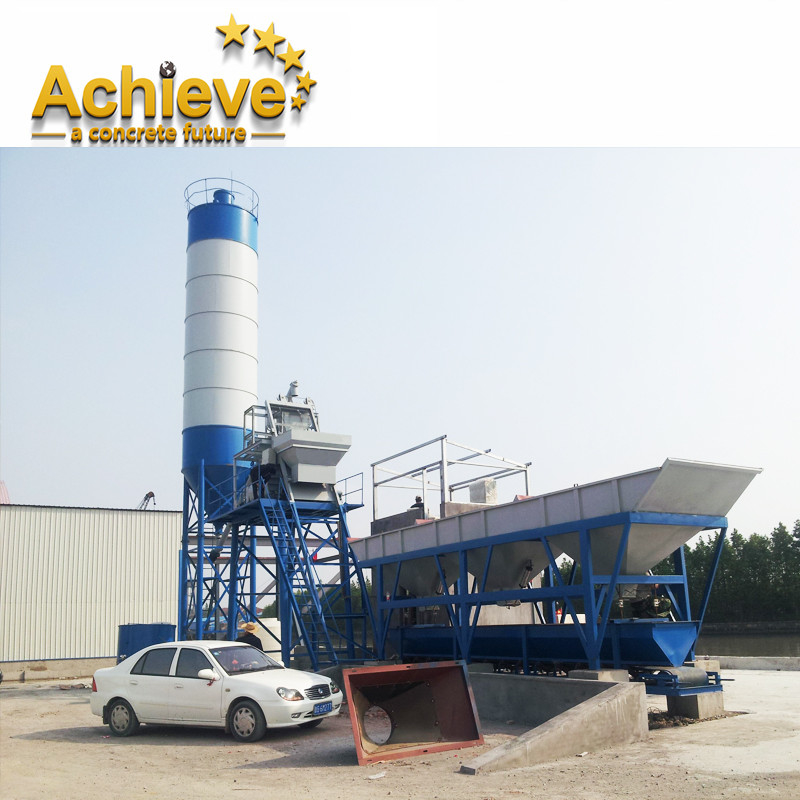

HZS35 Stationary Concrete Batching Plant Ready Mixed JS750 3.8m 0
Achieve HZS35 ready mixed concrete batching plant Configure the JS750 mixer,
Double horizontal shaft forced mixing mixer.


2. Control system

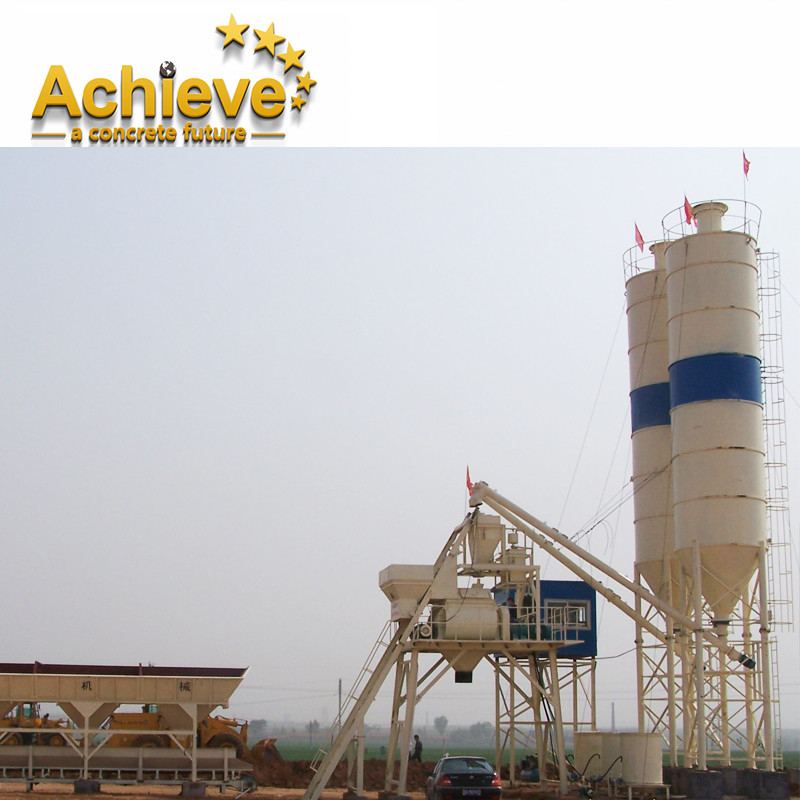

HZS35 Stationary Concrete Batching Plant Ready Mixed JS750 3.8m 1
Achieve HZS35 batching plant Configure the Manual operation panel

3. Aggregate conveyor

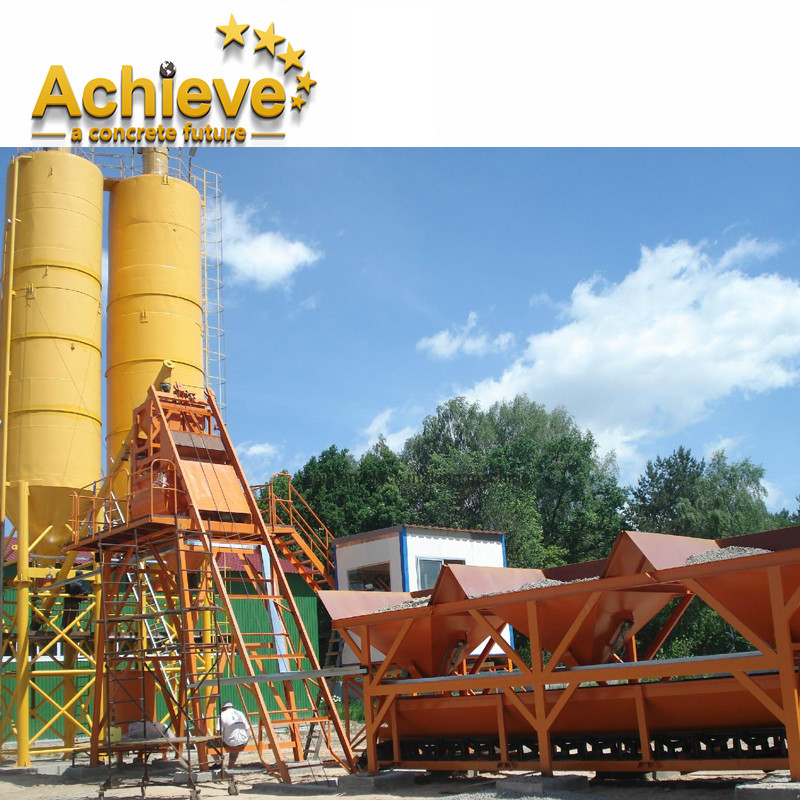

HZS35 Stationary Concrete Batching Plant Ready Mixed JS750 3.8m 2
Achieve HZS35 bucket lift type concrete batching plant ,adopts the bucket lifting system.

4. Aggregate batching machine

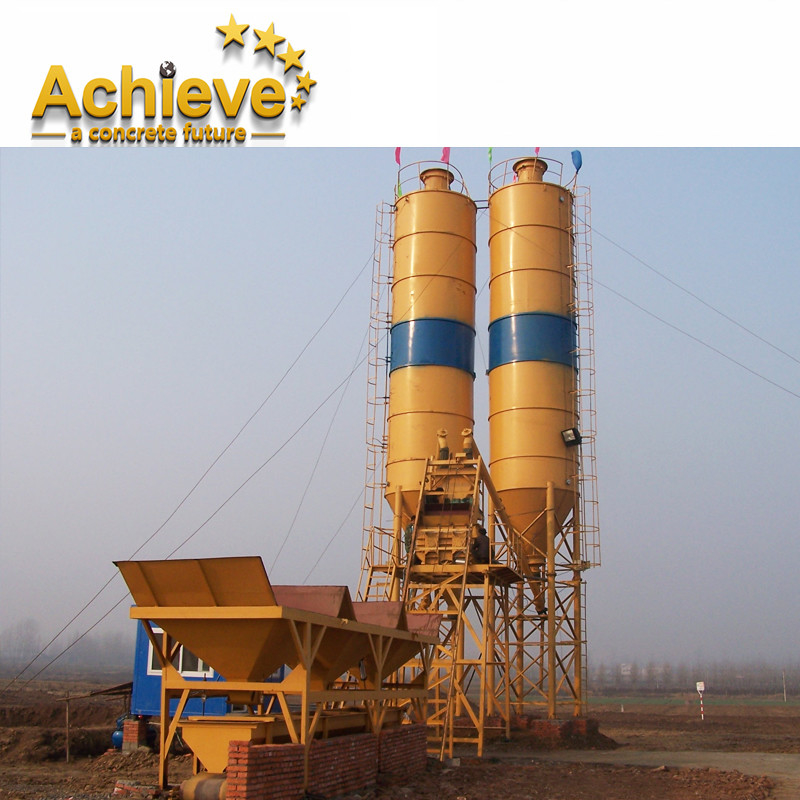

HZS35 Stationary Concrete Batching Plant Ready Mixed JS750 3.8m 3

Achieve stationary concrete batching plant HZS35 aggregate batching machine

consists of: aggregate silo, weighing hopper, aggregate conveyor, sensor, etc.





5. Bolted Cement SILO

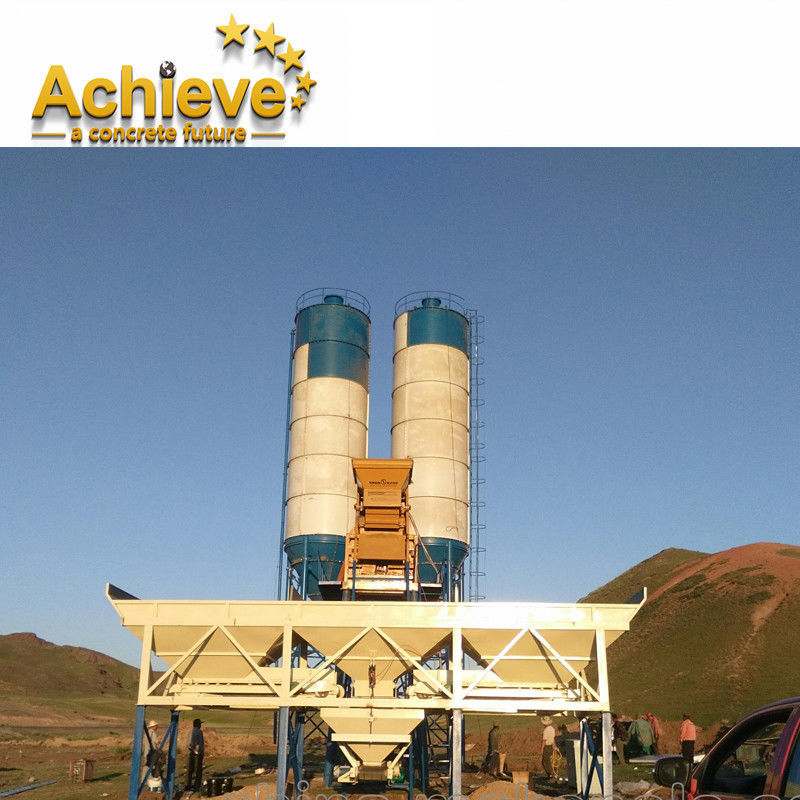

HZS35 Stationary Concrete Batching Plant Ready Mixed JS750 3.8m 4



6. cement screw conveyor



HZS35 Stationary Concrete Batching Plant Ready Mixed JS750 3.8m 5



HZS35 concrete batching plant basic Specification:




HZS35 concrete batching plant quotation and main Configuration
No. Name specifications Brand QTY UNIT
1 JS750 double horizontal shaft mixer, 3.8m discharge height(pneumatic door) mixer JS750 Achieve 1 set
main gearbox   Achieve 1 set
main motor 30Kw Zhengzhou Deshengxiang 1 set
lift gearbox   Achieve 1 set
lift motor 7.5Kw local famous brand 1 set
Manipulating Fuel Pump   local famous brand 1 set
sewage pump 3Kw   1 set
pneumatic door   Aikesi 1 set
Lining and blade high-strength alloy Achieve 1 set
underframe   Achieve 1 set
leg   Achieve 1 set
Aggregate receiving hopper   Achieve 1 unit
Walking platform   Achieve 3 set
track   Achieve 1 set
protective guard   Achieve 1 set
Ladder   Achieve 1 set
2 PLD1200 two bins batcher belt conveyor width 500 Achieve 3 set
steel frame   Achieve 1 set
conveyor motor 4Kw yuxing 3 set
scale hopper 1.2m³ Achieve 1 unit
aggregate bin 2.5m³ Achieve 2 unit
leg   Achieve 4 set
weighing sensor 1000Kg keli 3 unit
3 Bucket lift air cylinder   AKS 1 set
4 screw conveyer 9m Φ219mm Domestic reducer 3 set
5 Cement measuring system scale hopper 400Kg Achieve 1 unit
steel frame   Achieve 1 unit
sensor 500Kg keli 3 unit
Pneumatic Butterfly Valve Ф250mm boerte 1 unit
pneumatic component   aikesi 1 set
air compressor 0.25 shanghai jingbao 1 set
solenoid valve     1 set
Oil water separator     1 unit
ball valve     1 unit
connection and pipeline.     1 set
6 silo electric dust removal 50T Customer optional 2 set




HZS35 Stationary Concrete Batching Plant Ready Mixed JS750 3.8m 6
