Place of Origin:
Changsha, China
Brand Name:
ACHIEVE
Model Number:
LT3500
Contact Us

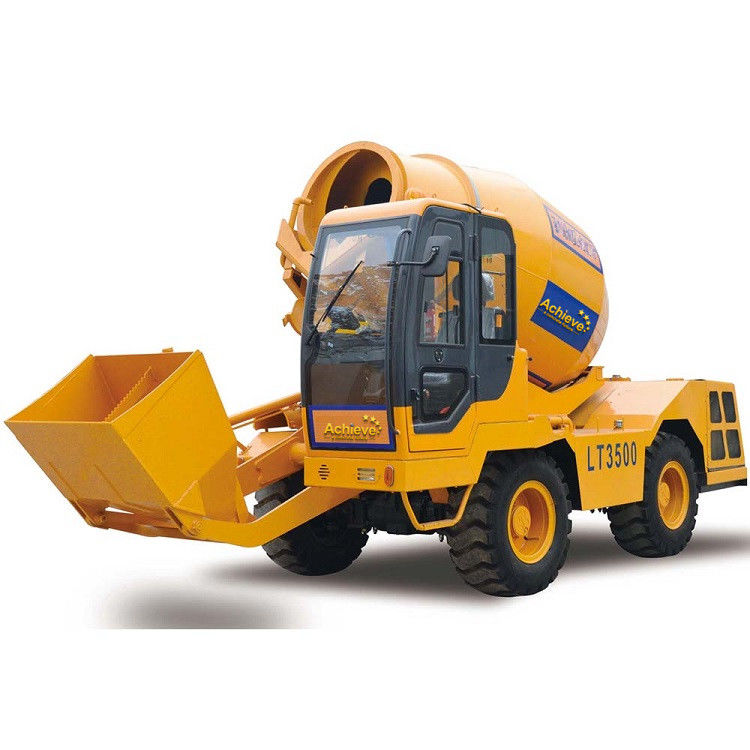

3.5m3 Capacity Self Loading Mobile Concrete Mixer With Diesel Engine
| DRUM CAPACITY | 5.3m3 |
| OUTPUT | 3.5m3 |
| FILLING RATIO | 66% |
| DRUM STEERING | slewing 300° on horizontal direction, discharging height 1.8m to the four sides of the vehicle |
| PRODUCTIVITY | up to 4 batches per hour.14 m3 /hour |
| ENGINE | YUCHAI YC4125Z,diesel,water-cooled, 4 cylinders. Rated power 92kw/2200rpm |
| TRANSMISSION | full hydraulic driving. 4 drive, 4 steering. |
| SLOPE | 30% |
| SPEED | Low: 0-10km/h, high: 0-25km/h |
| DRIVING SEAT | Front cab on side of loading shovel. ROPS-FOPS type complete |
| HYDRAULIC SYSTEM | 2 variable pumps for hydraulic transmission and drum rotation.2 gear pumps for work |
| JOYMIX | All hydraulic functions of shovel controlled by a single - fully servo controlled Joystick. |
| SHOVEL | 650L, complete with hydraulic opening gate |
| CHUTE | Slewing. Fitted with two pins easily detachable to increase the discharge height. |
| WATER SYSTEM | Self contained, hydraulic driven water pump, high pressure water pump & washing gun |
| BRAKE | Wet brake, dual independent hydraulic circuits. |
| TYRES | construction tyres 16/70-20 |
| ELECTRIC SYSTEM | 24 volt. |
| TANKS | Water:2x350L, diesel:165L, hydraulic oil:150L |
| WEIGHT | 8600KGS |
| OVERALL DIMENSTION | Length:7.2m width:2.5m height:3.3m |
| WHEEL BASE | 2.3m |
