PLC Control Dry Concrete Mixing Plant 120 CBM Per Hour MAO2000

Product Details:
Place of Origin: Changsha,China
Brand Name: Achieve
Model Number: HZS120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 100000--170000 per set
Packaging Details: nude
Delivery Time: 10-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month

Detail Information

Application: Building Works, Construction Projects, Bridges, Docks, Airport Power Type: Electric
Mixer: MAO2000 Condition: New
Material: Steel After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Installation, Commissioning And Training
Color: Customized, Blue, Changable, Yellow, Etc Discharging Height: 4.1m
Capacity: 120 CBM Per Hour Product Name: Concrete Mixing Plant
Control System: Automatic PLC Control Cement Silo: 100t,150t
Productivity: ≤120m3/h
High Light:

MAO2000 Concrete Mixing Plant

,

120 CBM Concrete Mixing Plant

,

PLC dry mix concrete plant

Product Description

120 CBM Per Hour Concrete Batching Plant Liquids Measuring And Supplying System

Liquids measuring and supplying system

- Provision of fine measurement hopper for higher measurement accuracy.

- Provision of stand-alone storage tank for easy installation.

- Provision of cleaning interface for conducting clear water to flush additive pipelines.

-Additives with agitators to ensure uniform agitation.



The liquids measuring and supplying system includes the water measuring & supplying system and additive(liquid) measuring &

supplying system.The water measuring & supplying system consists of the water tank (pond), fine measurement water tank, water

pump, water supply pipeline, valve, water measuring device, etc. The mixing water for use in the mixing plant is pumped at first from

the water tank and then conveyed into the water measurement hopper through one big and one small water supply pipelines. When

up to specified measurement values, the water pump will stop working. At this time, the big water pipeline will stop water supply to

complete coarse measurement. And the water in the fine measurement water tank will flow by gravity into the water measurement

hopper through the small water pipeline, when up to prescribed requirements, the electro-magnetic valve in the small pipeline will

be closed to achieve the purpose of fine measurement. The additive (liquid) measuring and supplying system has two sets. Each

set consists of the additive storage, valve, pipeline, additive pump, agitation device, fine measurement hopper and additive measuring

device. After additives have been evenly agitated, they will be pipelined to the fine measurement hopper by pump and then split into

two for entering the additive measurement hopper via two pipelines. In case of the additive up to specified measurement value,

the pump will stop working. At this time, the main pipeline will stop additive supply. And the additive in the powder measurement

hopper will flow by gravity from its bottom pipeline into the additive measuring hopper. If requirement met in prescription, the

electromagnetic valve will be closed to achieve the purpose of fine measurement. In addition, the flushing interface is provided to

conduct clear water for pipeline flushing so as to avoid pipeline blockage due to additive crystallization.The liquid measuring device

consists of the water measuring device and additive measuring device.



1. Water measuring device

- 11kW booster pump, featuring high pressure and fast water discharge

- Compensation of unbalanced sensor

- Measurement by coarse and fine scale



The water measuring device consists of the water measuring hopper, sensor, valve, and booster pump. Its function is to measure

the mixing-used water. The measuring hopper contacts the sensor via connection seat. The sensor produces signals, and then

outputs and amplifies them. The amplified signals are compared with pre-set values. In case of the water quantity up to the pre-set,

water supply will stop to complete water measurement. In case of the mixer requiring water addition, the valve at the water measuring

hopper bottom will open automatically. At the same time, the booster pump will start up to pump water into the mixing drum, supplying

water for mixing as well as for mixing shaft & drum liner flushing.





2 .Additive measurement device

-Compensation of unbalanced sensor.

-Pumping by stainless steel pump.

-Measurement by coarse and fine scales



After the additive measuring hopper has contacted the sensor via connection seat, the sensor produces signals, outputs and amplifies

them. The amplified signals are compared with pre-set values. If requirements met, the additive pump will stop working. After automatic

opening of the valve at the additive measuring hopper bottom, the additives will flow directly into already measured water scale hopper.

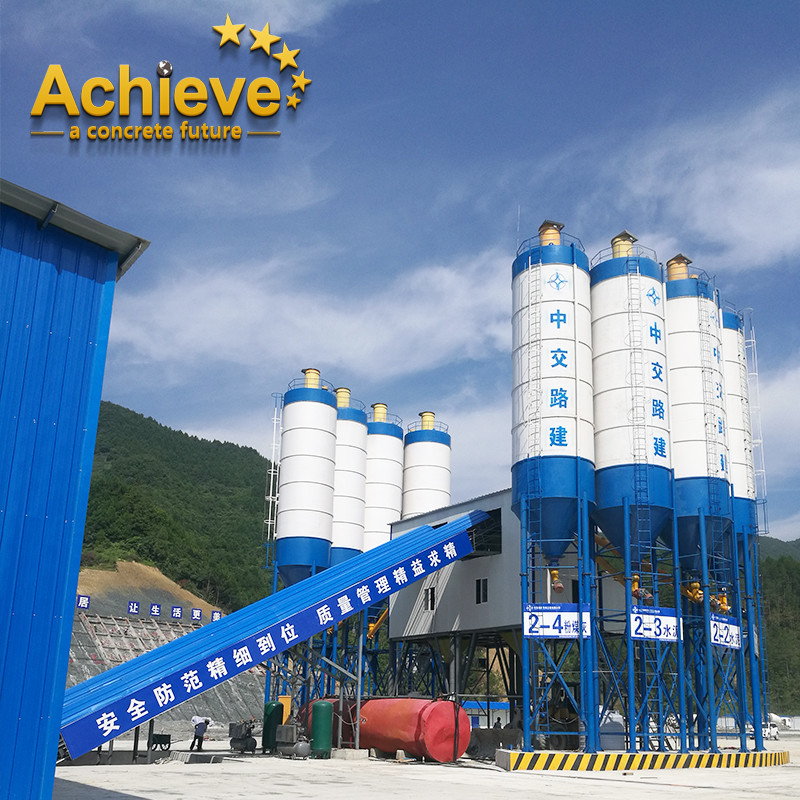

PLC Control Dry Concrete Mixing Plant 120 CBM Per Hour MAO2000 0

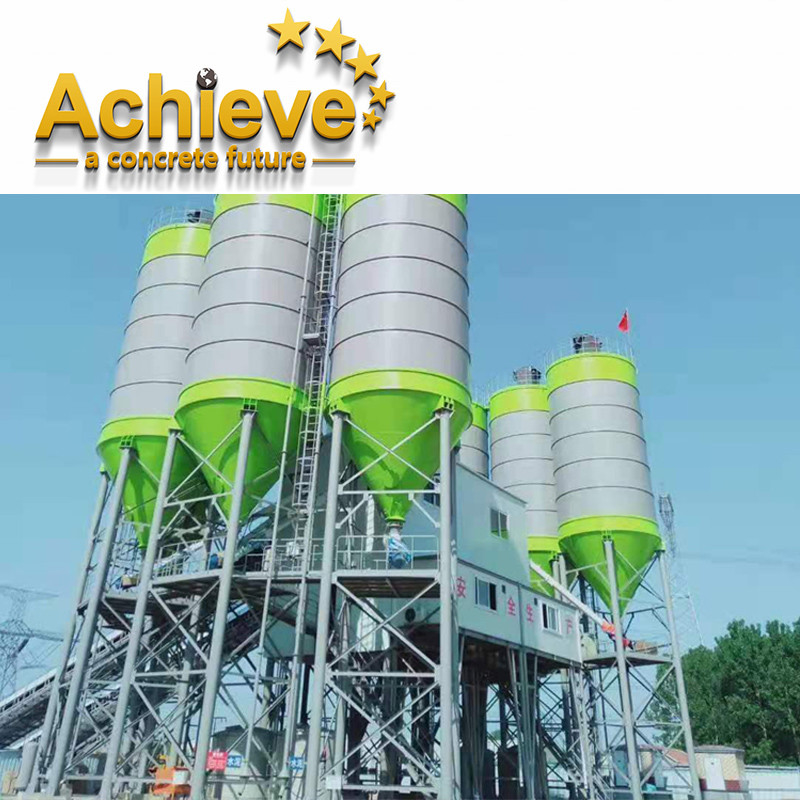

PLC Control Dry Concrete Mixing Plant 120 CBM Per Hour MAO2000 1

1.5 m3  SICOMA mixer concrete batching plant



HZS120 construction version configuration table
Name Specification Brand Qty Unit
JS2000 Mixer Mixer JS2000 self-made 1 unit
Main reducer JS2.0 self-made 2 unit
Main motor 37Kw self-made 2 unit
Electric concentrated oil pump 0.9Kw self-made 1 set
Hydraulic station group Motor 2.2Kw self-made 1 set
Tube cover and view hole device   self-made 1 unit
Lining plate and blade High wear resistant alloy self-made 1 set
Lift lower section of gantry frame 220 self-made 1 set
Lifting reducer     1 unit
Lifting motor 22KW   1 unit
Support leg   self-made 1 set
The framework   self-made 1 set
Receive material mouth   self-made 1 set
The ladder   self-made 1 set
PLD3200 aggregate batcher, three bins,Cumulative measurement Belt conveyor drum 7.5kw Zibo Jinshengxi 1 unit
Belt tailstock   self-made 1 set
Horizontal belt 800mm Baoding Shengyun 1 strip
Belt conveyor frame   self-made 1 set
Passive rolling   self-made 1 set
Trough-type roller group   self-made 1 set
Cleaning device   self-made 1 set
Weighing hopper   self-made 4 unit
Storage bin   self-made 4 unit
vibrator     6 unit
cylinder SC100×350 Zhejiang Jinneng 9 unit
The overall structure   self-made 1 set
Weighing sensor 2000Kg Anhui ZHIMIN 6 unit
Cleaning device   self-made 1 set
Overhaul aisle handrails   self-made 1 set
Electric roller support   self-made 1 set
leg   self-made 1 set
The buffer bucket   self-made 1 unit
Temporary storage hopper   self-made 1 unit
Bin gate   self-made 1 unit
Discharging cylinder 125×250 Zhejiang Jinneng 1 set
Water measuring system Scale hopper   self-made 1 unit
Frame   self-made 1 unit
Sensor 500Kg Anhui ZHIMIN 3 unit
Pneumatic butterfly valve Ф300mm/Ф150mm GREATWALL 各1 unit
Pipeline pump   Shanghai Pangding 1 unit
The water pump   Shanghai Pangding 1 unit
Water pump bracket   self-made 1 set
Upper water line, valve   GREATWALL 1 set
Cement measuring system Scale hopper 1200Kg self-made 1 unit
Frame   self-made 1 unit
Sensor 1000Kg Anhui ZHIMIN 3 unit
Pneumatic butterfly valve Ф300mm GREATWALL 1 unit
Additive weighing system Admixture measuring box 70Kg self-made 1 unit
The sensor 50Kg   1 unit
Frame   self-made 1 unit
Pneumatic butterfly valve Ф50mm GREATWALL 1 unit
Admixture pump   SHANGHAI RENMIN 1 unit
Admixture mixer   self-made 1 unit
Piping and valves     1 set
Pneumatic system Pneumatic components     1 set
Air compressor 0.9m³ JAGUAR 2 unit
Storage tanks 0.3m³ Zhengbo 2 unit
Solenoid valve   Zhejiang Julong 1 set
Oil-water separator   Zhejiang Bailtani 1 unit
Ball valve     1 group
Piping and fittings   self-made 1 set
Screw conveyor 9m Φ219mm self-made 2 unit
Control system PLY   self-made 1 set
Cable   Gb full copper Made in China 1 set

5 With Customers.jpg

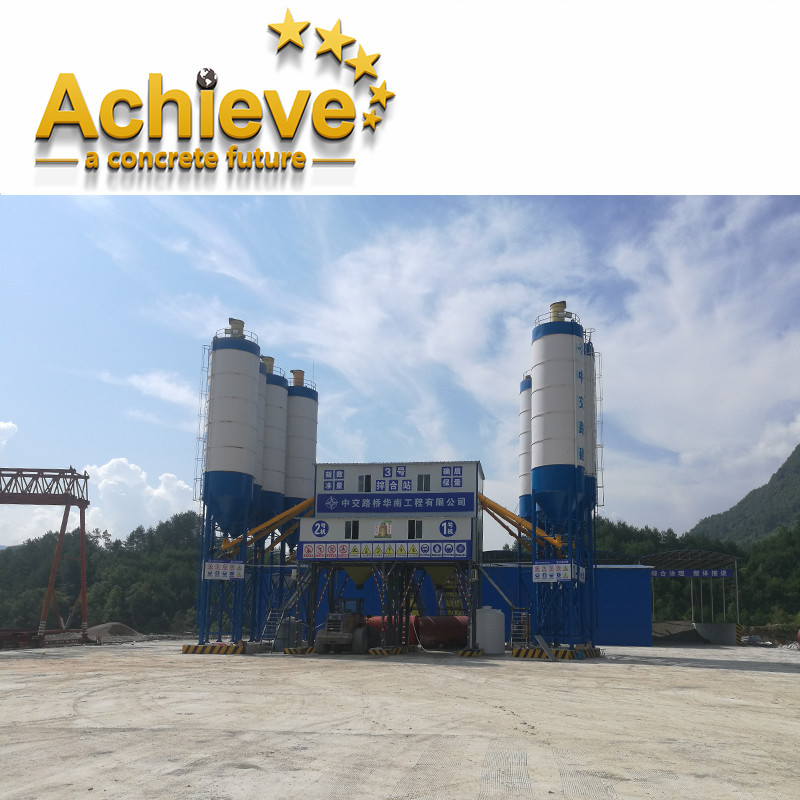

PLC Control Dry Concrete Mixing Plant 120 CBM Per Hour MAO2000 4

                     Achieve Innovations (Changsha) Co.,Ltd.

♥. A leading Supplier in the Construction Machinery Industry for Premium quality China-made Products
♥. Specializing in Concrete Machinery, Used & Recondition, Tailor-made Equipment & Parts
♥. We are a professional team, over 10 years experience in this industry.



♥.Achieve batching plant factory focused on the domestic market and sells more than 200 sets of batching

plants in the local market every year. It has participated in many major construction projects in China, and

ranked top five in sales of the batching plant,it is the largest buyer of SICOMA mixer, which is the domestic

first-class mixer brand. Chinese customers have a better understanding of Chinese products,The huge sales

in China help us accumulated rich experience in the production and quality of our batching plant, and the large

procurement also help us reduced the procurement costs. Now, with the professional international trade ability

of the Achieve overseas team, Achieve batching plant has been exported to more than 10 countries in

Southeast Asia, Central Asia and Africa.In the future, Achieve batching plant will serve more countries and customers.

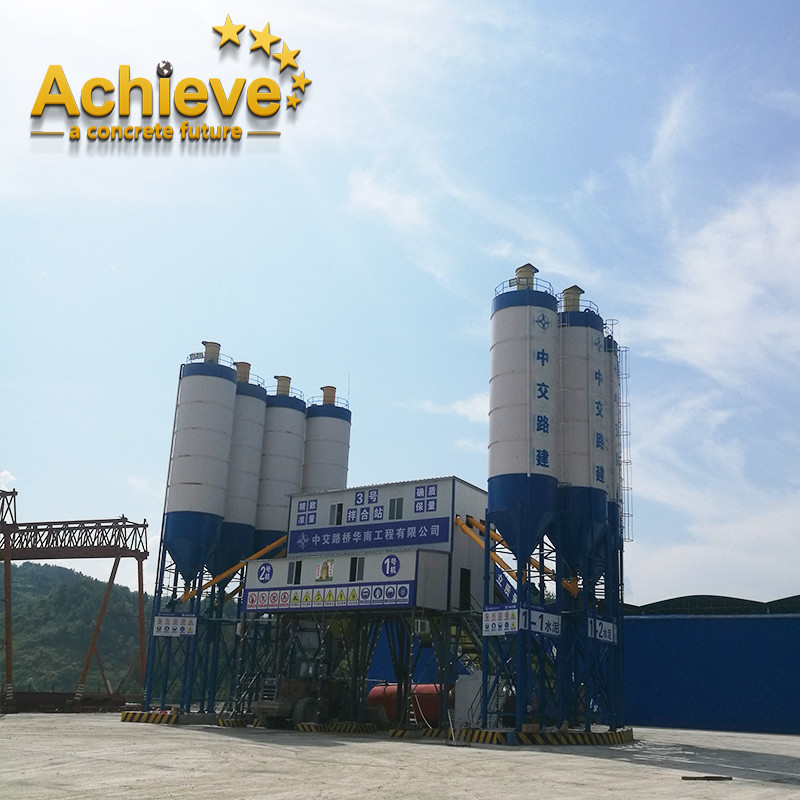

PLC Control Dry Concrete Mixing Plant 120 CBM Per Hour MAO2000 5
