PTO Driven Truck Mounted Concrete Line Pump AI-50CLPP 40M³/H For Australia

PTO Driven Truck Mounted Concrete Line Pump AI-50CLPP 40M³/H For Australia

PTO Truck Mounted Concrete Line Pump

40M3/H Mounted Concrete Line Pump

AI-50CLPP

Place of Origin:

Hunan

Brand Name:

ACHIEVE

Contact Us

Request A Quote
Product Details
Applicable Industries:
Building Material Shops, Home Use, Construction Works , Energy & Mining
Showroom Location:
Egypt, Canada, United Kingdom, United States, France, Germany, Viet Nam, Philippines, Peru, Indonesia, Mexico, Chile, UAE, Colombia, Sri Lanka, Kazakhstan, Ukraine, Uzbekistan, Japan, Malaysia, Australia, None
Condition:
New
Power Type:
Diesel
Weight:
4000 Kg
Dimension(L*W*H):
5500mmx1950 Mm X2550 Mm
Warranty:
3 Months
UNIQUE SELLING POINT:
Easy Maintenance
Max. Vertical Conveying Distance:
100
Max. Horizontal Conveying Distance:
300
Productivity:
40M³/H
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Marketing Type:
Hot Product 2021
Warranty Of Core Components:
Other
Core Components:
Pump, Engine
Engine:
CUMINS Engine
Main Hydraulic Pump:
KAWASAKI
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
None
After-sales Service Provided:
Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Port:
Any Ports In China
Product Description

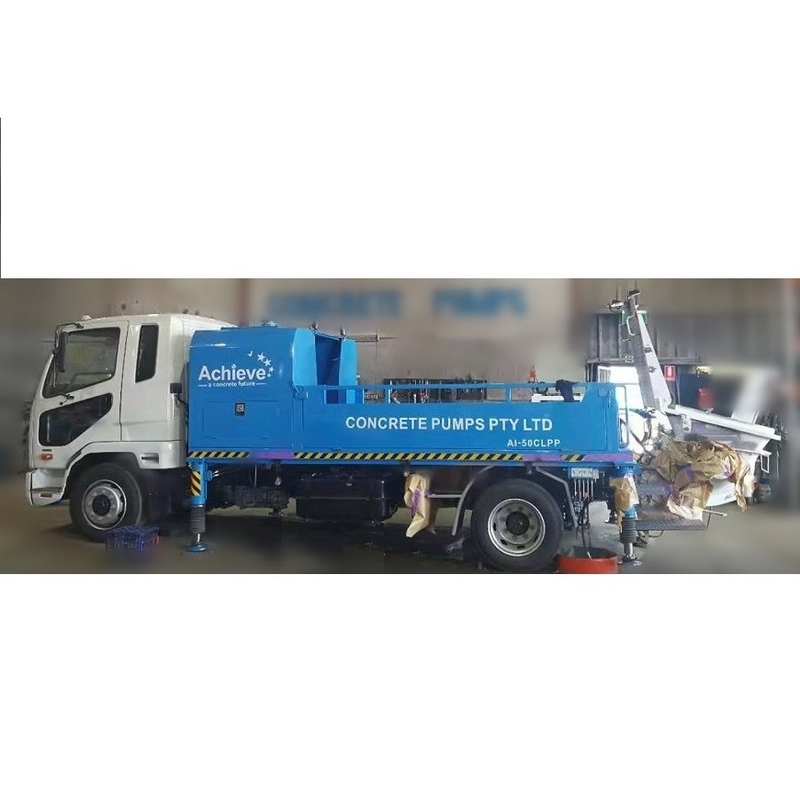

Truck Mounted Concrete Line Pump PTO Driven AI-50CLPP For Australia

Items   Model
AI-50CLPP
Pumping System Max. Pumping Volumn m3/h 50
Max. Pumping Pressure MPa 10
Pumping Frequency min-1 24.3
Swing Type   S Tube
Hydraulic Oil Cylinder Diameter * Stroke mm DN 100 * 1200
Concrete Cylinder Diameter * Stroke mm DN 180 * 1200
Hopper Capacity * Feeding Height L * mm 500 * 1400
Output Diameter mm DN 180
Max. Aggeateer Diameter mm 40
Slump cm 12~23
Upper- Weight kg 4900
structure Dimension(Length×Width×Height) mm 7515×2300×2589
Hydraulic System Hydraulic System Type   Open loop
Hydraulic System Pressure MPa 32
Hydraulic Oil Tank L 280
Hydraulic Oil Cooling Type   Air Cool
Cleaning Type   Water + Air Wash
Water Tank L 500

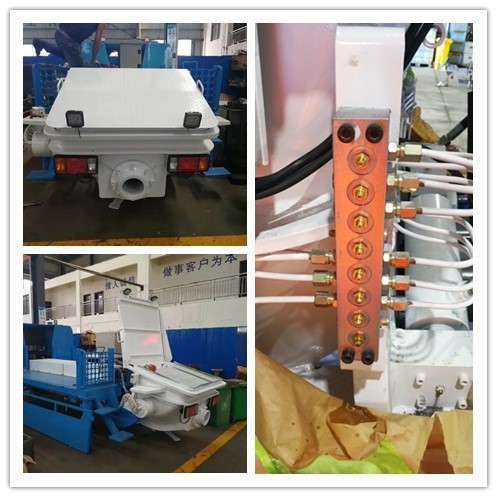

Others Lubrication System   Auto-lubirication

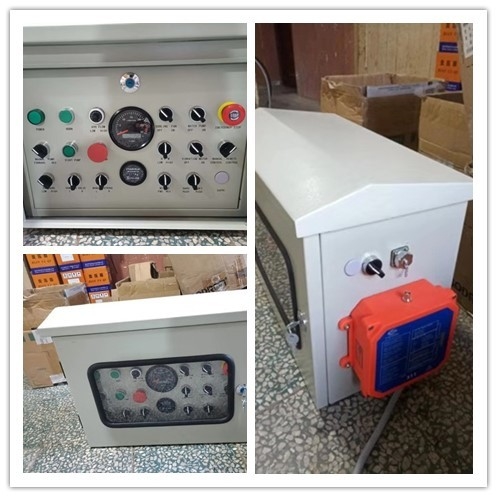

Control Sytem   Manual Control Box
+HBC Raido Remote Control
