CR-150 Concrete RECYCLE SYSTEM Ready Mix Reclaimer 7.5kw

Product Details:
Place of Origin: Hunan, China
Brand Name: ACHIEVE
Payment & Shipping Terms:
Price: $22,000.00 - $22,500.00/Sets
Supply Ability: 10 Set/Sets per Month

Detail Information

Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Batching Plant Condition: New
Power Type: Electric Power: 7.5
Dimension(L*W*H): 7500*2200*2800 Weight: 7000 Kgs
Warranty: 1 Year After-sales Service Provided: Video Technical Support, Online Support
High Light:

CR-150 Concrete RECYCLE SYSTEM

,

7.5kw Concrete RECYCLE SYSTEM

,

Ready Mix Reclaimer

Product Description

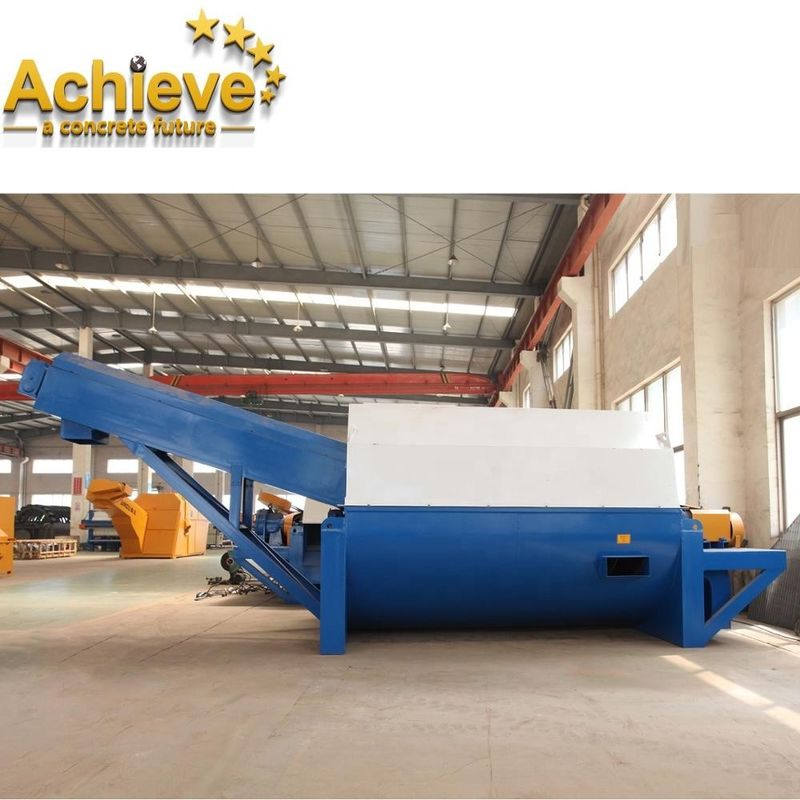

CR-150 CONCRETE RECYCLE SYSTEM Concrete Recycler Ready Mix Reclaimer



Concrete Reclaimer




 Ø CONCRETE RECLAIMR, MODEL CR-150

CR-150 concrete reclaimer is composed of spiral vanes and one sand screw.

CR-150 concrete reclaimer will handle all aspects of ready-mix companies’ waste concrete problem with its large washing capacity and it could be equipped with a pump washing device.



Technical Parameters

Model

CR-150

Screening Capacity (m3/h)

20

Dia. of Sand & Stone (mm)

<40

Total Power of Motors  (kw)

7.5

Weight (t)

7

Overall Size(mm)

7500*2200*2800

Qty. of Mixer Trucks

<40

No. of Washing Stinger

1-3

Electric Control System

PLC Auto Control



 Product Advantages

1,Lower or even no washing ramp, saving civil cost

2,1.8m high outlet, large stock



CONCRETE RECLAIMER CR-150

Item

Description

Specification

1. Concrete reclaimer system

Reclaimer CR-150

L7500mm*W2200mm*H2800mm

Gear motor

11.5kw

hopper

Available for 3 trucks

hopper connector

L800mm

Alarming Indicator

LTE-1081 DC24V

2. Truck Washing Pipelines

Truck Washing Pipe Set

2‘

Truck washing start Button



3. Water pump

Hopper pump

WQ20-25-3

Truck washing pump

WQ20-25-3

Screw bolt

M12*60

Pump Pipe Set

4. System pipelines

Pipeline (with thread)

2'

Bend ( with thread)

2'

Welding Bend

2'

Welding Flange (with pad)

2'

T joint

2'

Outside Thread

2'

Straight Union

2'

5. Electric Control System

PLC+Touch Screen

Delta

Other electrical elements

Scheinder

Screw bolt

M10*70

Wiring Cable

3x4+1

Wiring Cable

3x2.5+1

Signal Wire

0.75mm2,2core

6. Others

Pump Hanger



Steel wire rope

φ5

Steel wire rope cappel

Y-6

Bellows

30-40

Ribbon

350

Hand Chain hoist

1t-6m

Sealing Tape



Angle Iron

50*50

Out Hexagon Screw

M10*30

Screw Bolts

M12*40~45

Welding Rod



Welding gloves





CR-150 Concrete RECYCLE SYSTEM Ready Mix Reclaimer 7.5kw 1CR-150 Concrete RECYCLE SYSTEM Ready Mix Reclaimer 7.5kw 2

CR-150 Concrete RECYCLE SYSTEM Ready Mix Reclaimer 7.5kw 4CR-150 Concrete RECYCLE SYSTEM Ready Mix Reclaimer 7.5kw 6CR-150 Concrete RECYCLE SYSTEM Ready Mix Reclaimer 7.5kw 8
