TF-135 NEW Concrete Pump Recycler Ready Mix Reclaimer 7.5kw

Product Details:
Place of Origin: Hunan, China
Brand Name: ACHIEVE
Payment & Shipping Terms:
Price: $25,000.00 - $26,000.00/Sets
Supply Ability: 10 Set/Sets per Month

Detail Information

Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Batching Plant Condition: New
Power Type: Electric Power: 16
Dimension(L*W*H): 8800*2500*2300 Warranty: 1 Year
After-sales Service Provided: Video Technical Support, Online Support
High Light:

TF-135 NEW Concrete Pump

,

7.5kw NEW Concrete Pump

,

Ready Mix Reclaimer

Product Description

TF-135 CONCRETE RECYCLE SYSTEM Concrete Recycler Ready Mix Reclaimer



Concrete Reclaimer



 Ø CONCRETE RECLAIMR, MODEL TF-135

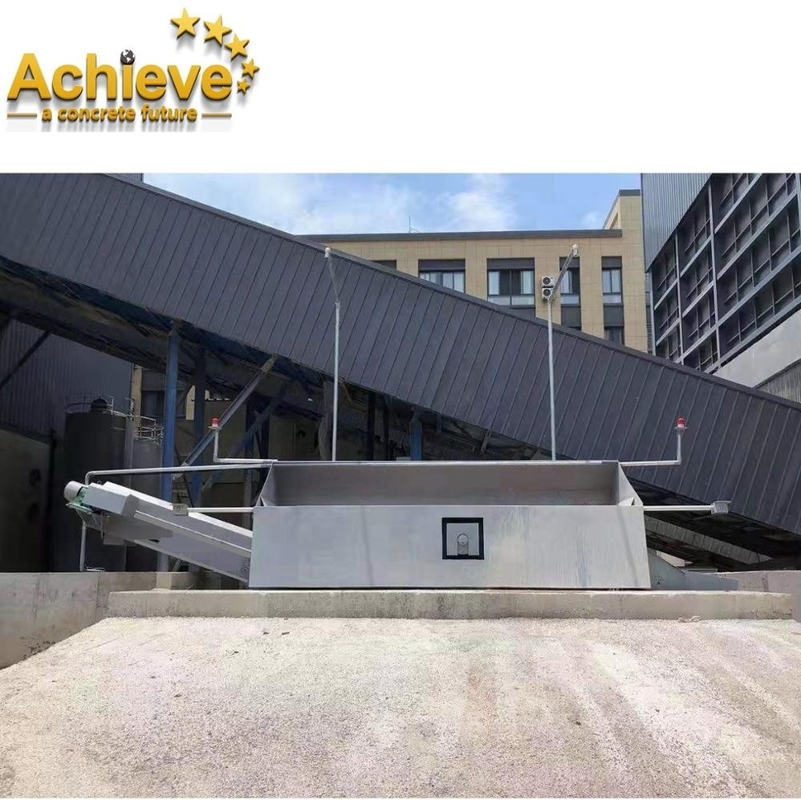

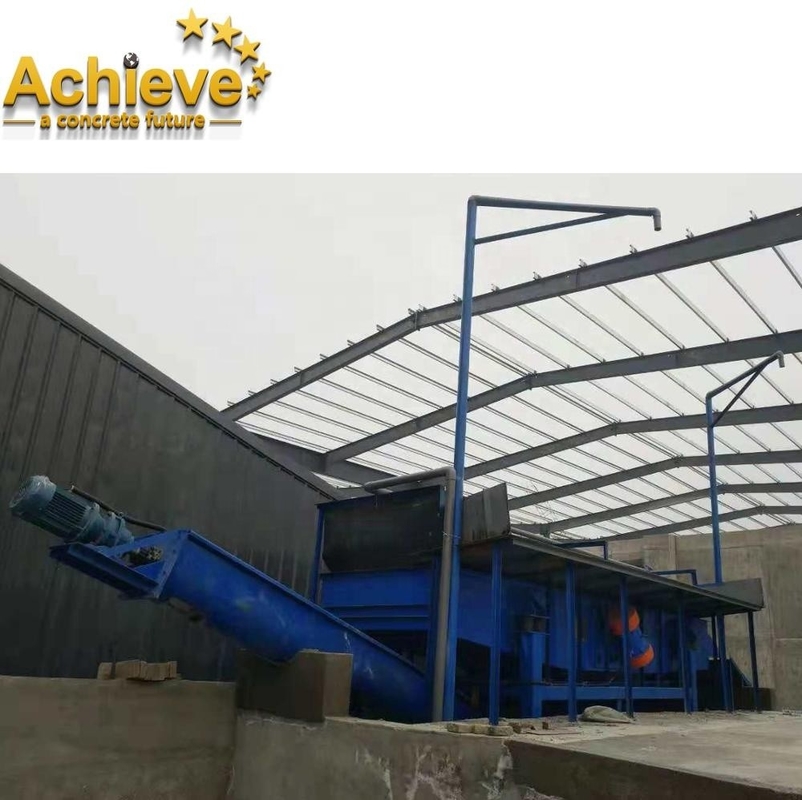

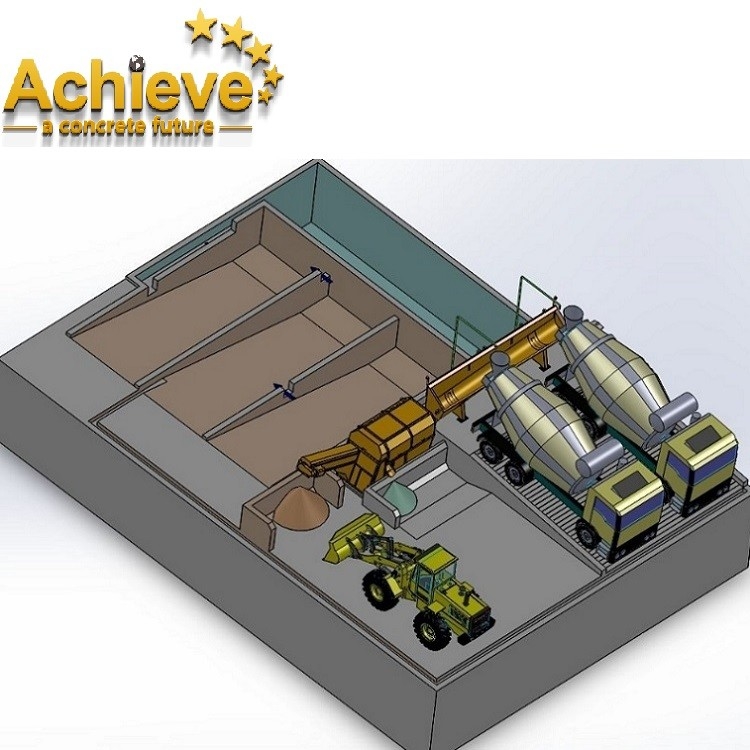

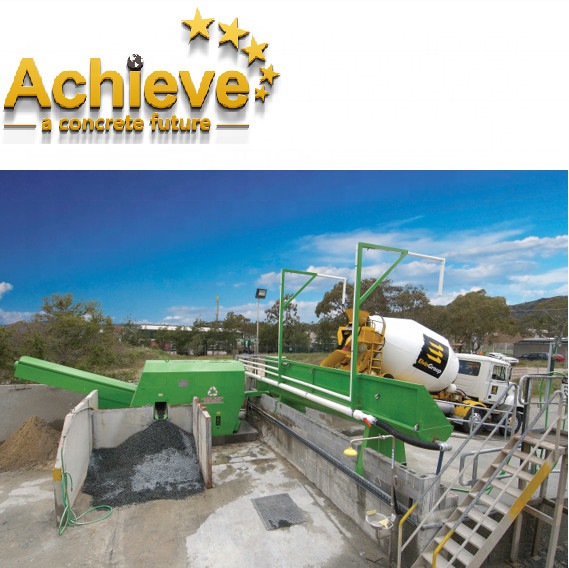

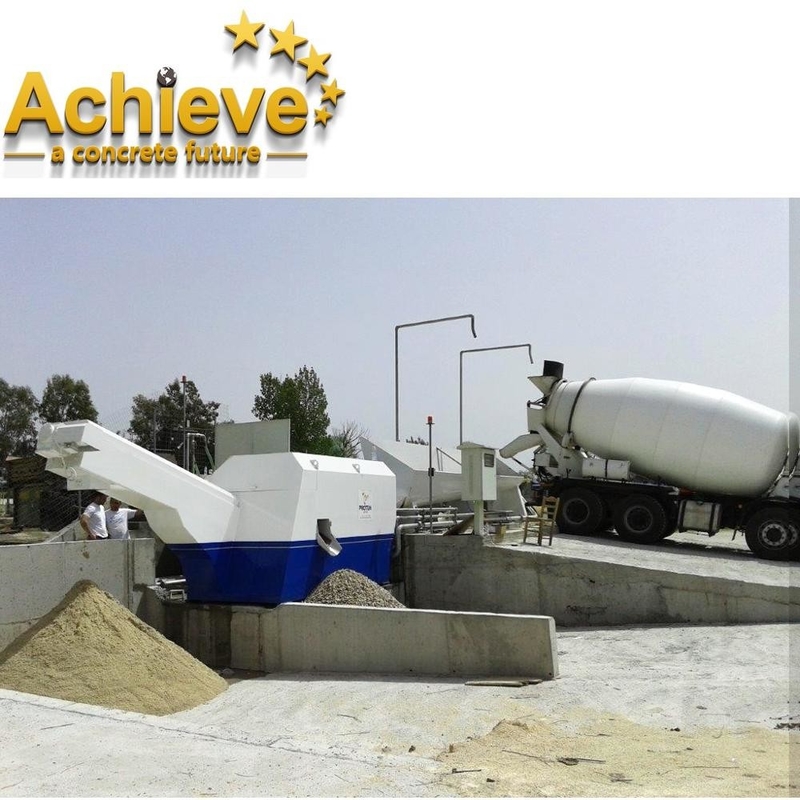

TF135 Vibrating Concrete Reclaimer is a new type of Concrete Reclaimer specially designed according to customers’ requirements for handling large waste concrete. The reclaimer and hopper is integrated designed using the principle of vibrating screening. The new model has the advantage of low fault rate, convenient maintenance and smaller land area. The separated stones could be discharged to the stone pile directly or carried to the aggregate yard through the belt. The sand falls down through the screen and is discharged through the screw conveyor. The slurry water is discharged to the slurry tanks.

Technical Parameters

Model

TF-135

Screening Capacity(m3/h)

30

No. of Washing Stinger

2

Sand Size(mm)

φ1~φ5

Stone Size(mm)

>φ5

Vibrator Power  (kw)

7.5

Sand Screw Power (kw)

5.5

Conveyor Belt Power (kw)

3

Weight (kg)

3400

Overall Size(m)

8.8×2.5×2.3

Qty. of Mixer Trucks

>30

Electric Control System

PLC Automatic Control

Product Advantages

1. The handling capacity is 30m3/h,  material is not blocking by using the separation of vibrating screening.

2. The discharge outlet chould be fixed according to the jobsite flexibly.

3. Easy process, small area, great separation effect

4. Good sealing, simple maintenance, low fault rate, long service-life

5. Simple operation, Automatic control (manual control is also available)

TF-135 NEW Concrete Pump Recycler Ready Mix Reclaimer 7.5kw 0

TF-135 NEW Concrete Pump Recycler Ready Mix Reclaimer 7.5kw 2TF-135 NEW Concrete Pump Recycler Ready Mix Reclaimer 7.5kw 4TF-135 NEW Concrete Pump Recycler Ready Mix Reclaimer 7.5kw 6TF-135 NEW Concrete Pump Recycler Ready Mix Reclaimer 7.5kw 7
