HGY36S-4R Concrete Placing Boom 25Ton 30kw

Product Details:
Place of Origin: Hunan, China
Brand Name: Achieve
Payment & Shipping Terms:
Price: $100,000.00 - $110,000.00/Units
Supply Ability: 5 Unit/Units per Month

Detail Information

Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining Condition: New
Voltage: 440V Power: 23
Dimension(L*W*H): 12*12*3M Weight: 25 Ton
Warranty: 1 Year UNIQUE SELLING POINT: High Operating Efficiency
After-sales Service Provided: Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
High Light:

25Ton Concrete Placing Boom

,

30kw Concrete Placing Boom

,

HGY36S-4R

Product Description

HGY36S-4R Concrete distributor Concrete Placing Boom



The counterbalance valve provides a locking function as an added safety measure.



The use of double-wall, wear-resistant delivery pipe has improved the service life up to 30,000-50,000m3.

This is 3-5 times longer than the life of ordinary pipe.

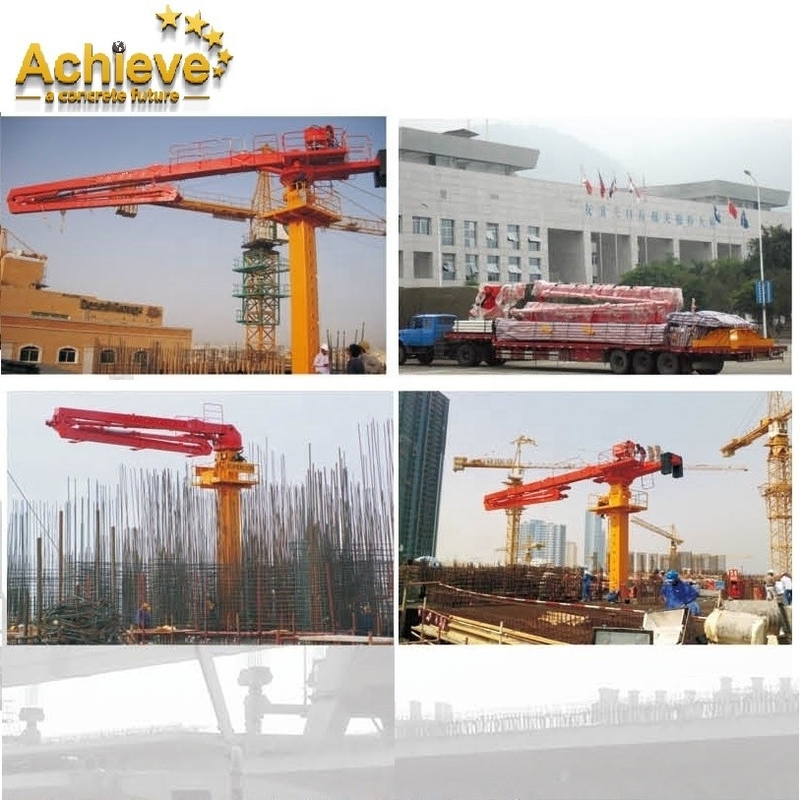

To enhance adaptability, the telescoping supports, designed by Sany, have an independent climbing system to accommodate installation in an elevator shaft or on curved walls of varying dimensions.

Cylinder jacking is used to 'climb' the placing booms within elevator shafts. The use of a fully automatic, 'stepless', lifting climbing frame with double electric hoists improves efficiency and safety by reducing the labor requirements of workers.

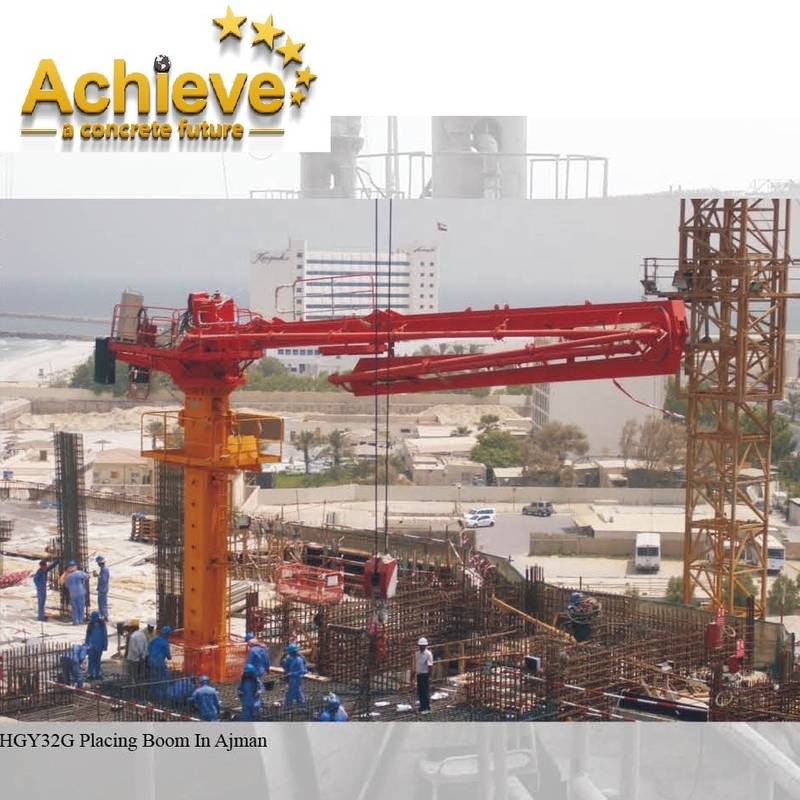

HGY36S-4R Concrete Placing Boom 25Ton 30kw 0





Technical Specifications

Model of Placing Boom

HGY36S-4R

HGY36P-4R

HGY36SC-4R

HGY36PC-4R







Performance

Max. Radius (m)

36

Free Standing Height,Slewing Range

22.7m,400°

Working temperature(℃)

0~60

Counter weight(kg)

/

2930

Total weight(kg)

25000

27930

Supply power to equipment

380V/50Hz



Electric motor

Motor Model

Y2-200L-4

Power(kw)

30



Hydraulic system

System pressure(MPa)

32

Flow(L/min)

34

47

34

47

Oil tank capacity(L)

280

Control mode

(Cable+Radio) remote control

Clearing mode for concrete pipe

Water clear / Dry clear

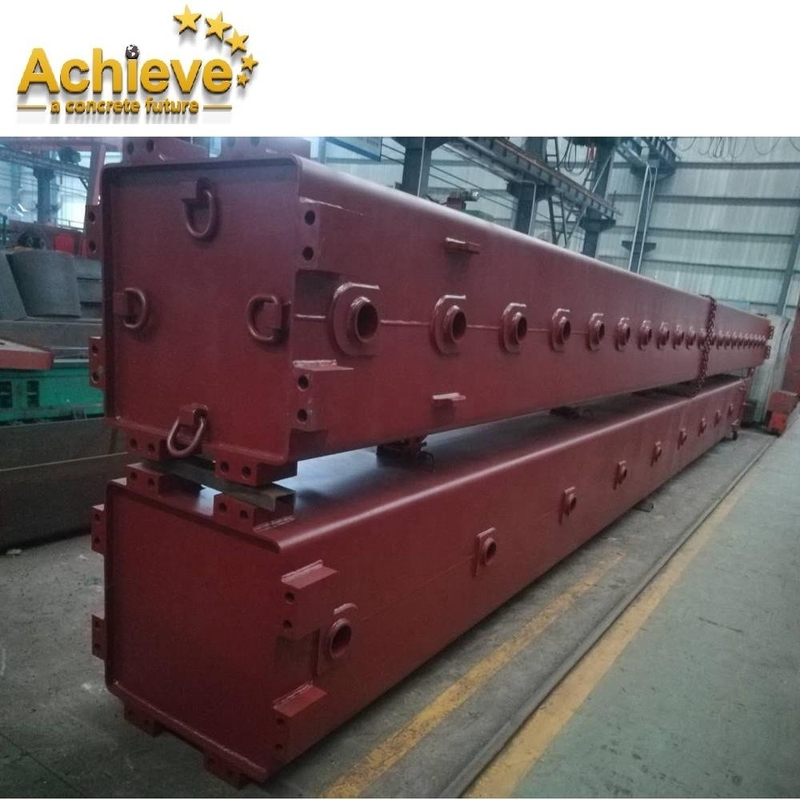

Section of tubular column (m×m)

0.75×0.75

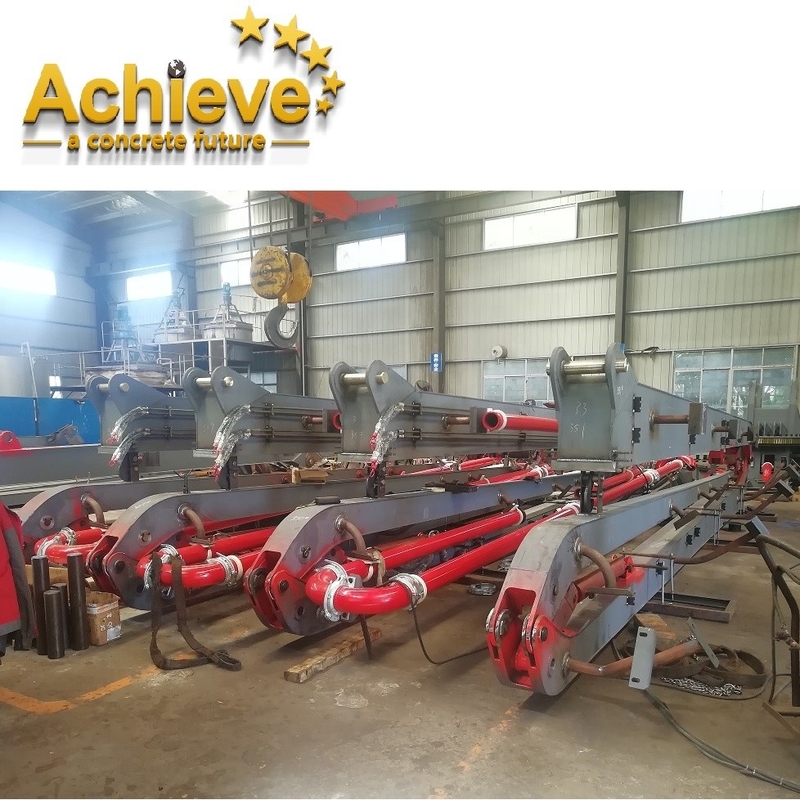

Arm(Booms)

Boom model

fully hydraulic foldable arms

Delivery pipeline diameter

DN125mm

Length of end hose

DN125mm ×3000mm



The first section

Length(m)

12.3

Articulation

-2.5°~82.5°

The second section

Length(m)

7.9

Articulation

~180°



The third section

Length(m)

7.9

Articulation

~180°



The forth section

Length(m)

7.9

Articulation

~180°









Climbing

Climbing Mode

Cylinder Jack Lifting

Internal Climbing Step Distance(m)

0.52

Floor Frame

Hole Prepared in Floor

Shaft Frame

Size of Climbing Shaft : 2.0m-2.7m

Min. Space Between Internal Climbing Frame

Climbing(m)

3

Placing Concrete(m)

6

Rest(m)

6

HGY36S-4R Concrete Placing Boom 25Ton 30kw 2
