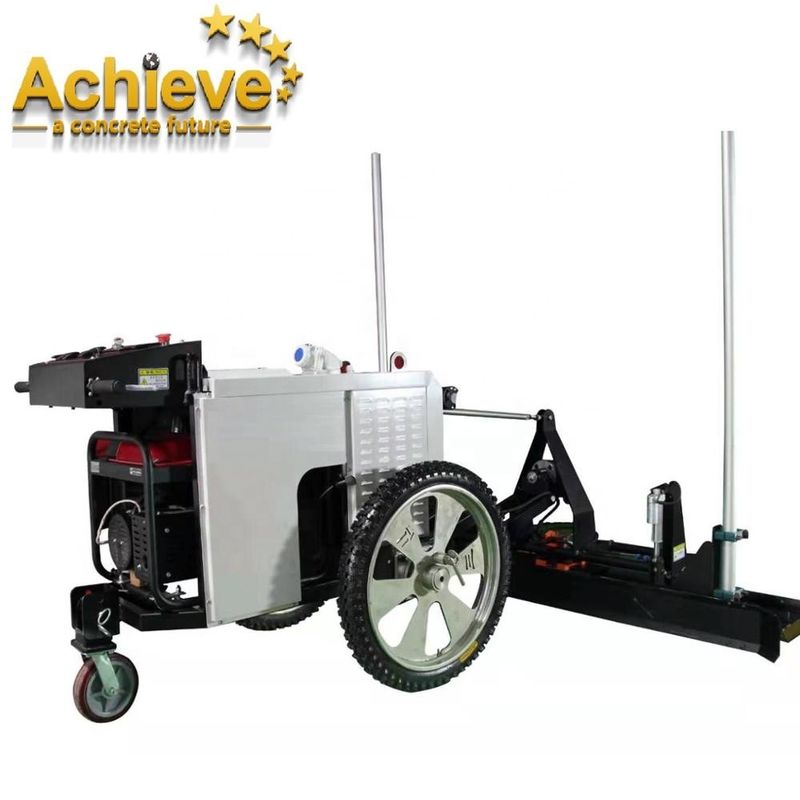

SRZP-21S CONCRETE LASER SCREED Concrete Level Screed Concrete Vibrating Screed
|
Model |
SRZP-21S |
Laser Application |
Plane,SLOPE&Double slope(3D) |
|
Engine |
HONDA 3KW |
Vibration Frequency |
50HZ |
|
Screed Head Width |
2000mm/2500mm/3000mm |
Vibration Force |
2KN |
|
Fuel Consumption |
1.2-1.4L/h |
Switching Mode |
Electric |
|
Control Mode |
AUTOMATIC/MANUAL |
Working Depth |
Less than 150mm |
|
Control System |
WATERPROOF DISPLAY(IP67) BUKE SERVO+CONSTRUCTION MACHINE CONTOLLER |
Pre-paving |
Manual work |
|
Operator |
2 |
||
|
Weight |
288(kg) |
Tire |
2 SETS (4 STAB RESISTANT TIRES) |
|
Outside Dim |
L2100xW2000xH1050(mm) |
Max. Speed |
60m/min |
|
Laser |
TOPCON,Leica |
|
|
|
With smaller size and light weight,Convenient turning control and transportation,Widely applied to narrow area,especially on the high building foundation casting and floor construction. |
|||
|
Independent R&D laser control system,specialized construction machine system,waterproof/dust-proof /Temperature resistant. |
|||
|
Optional screed head size,suitable for different complex sites. |
|||
