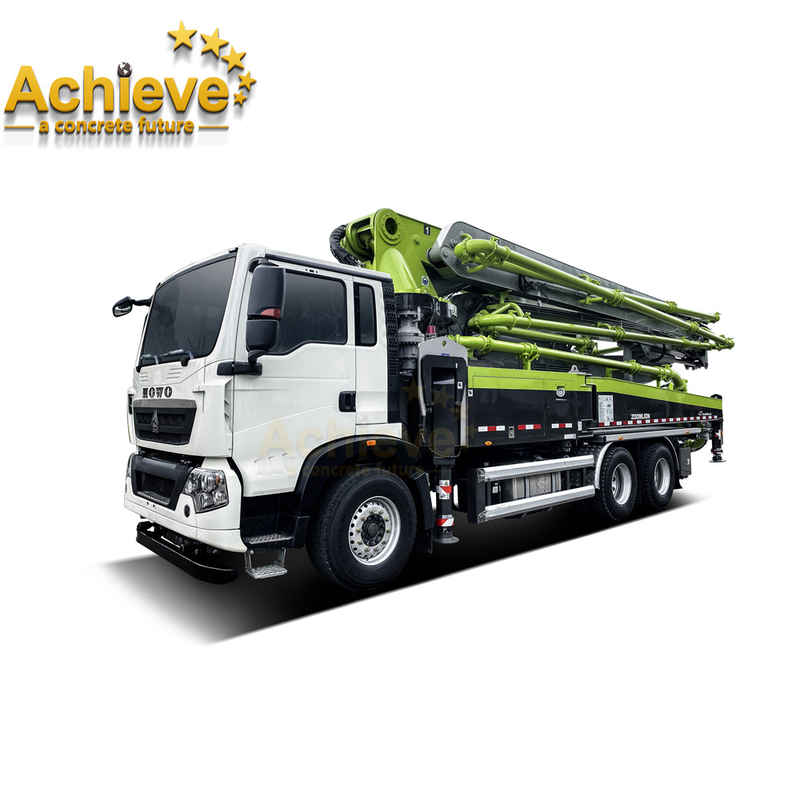

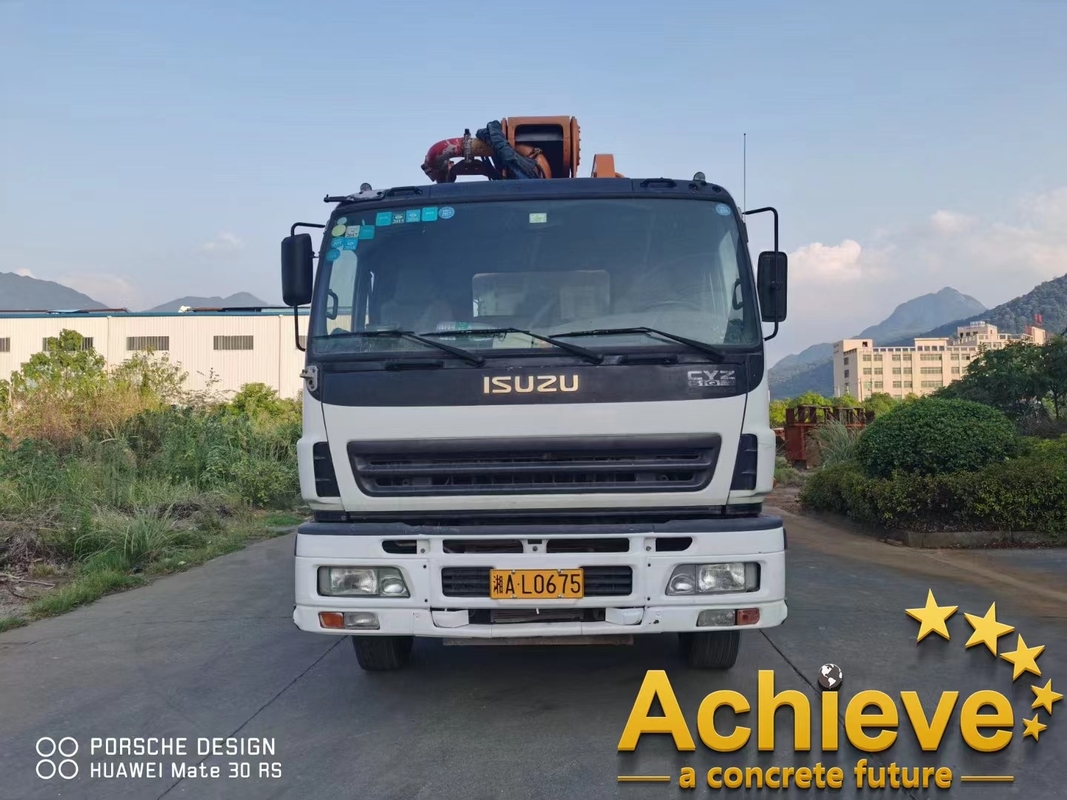

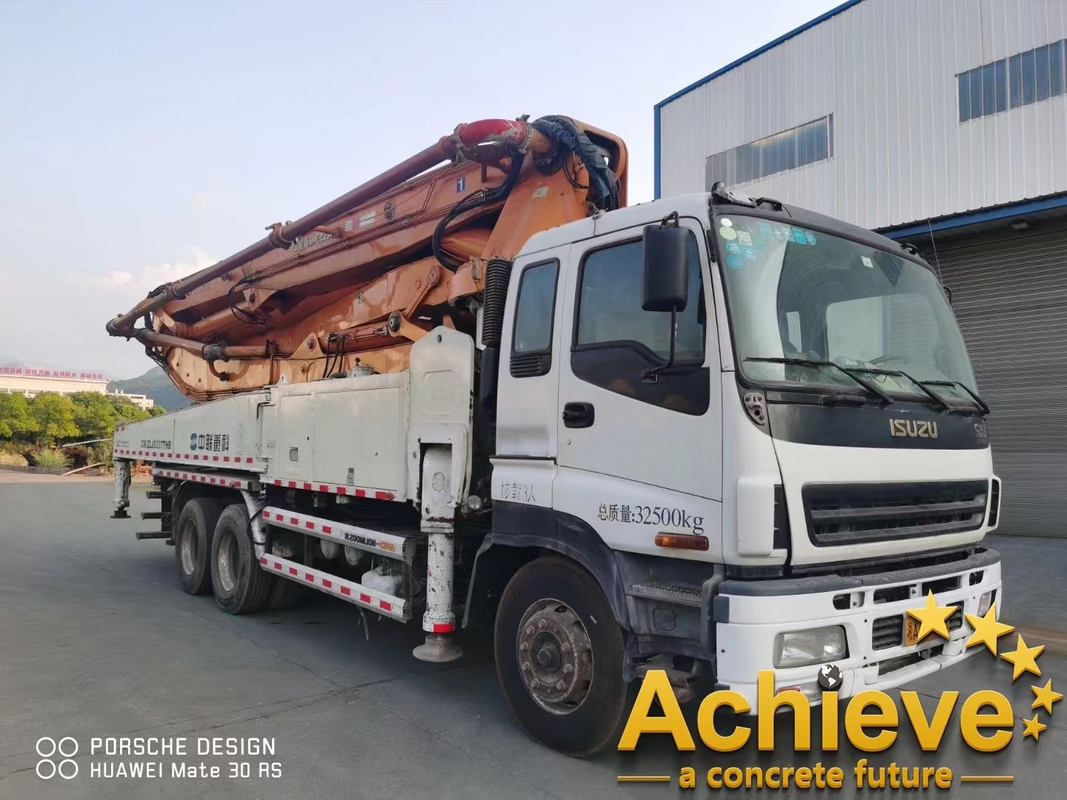

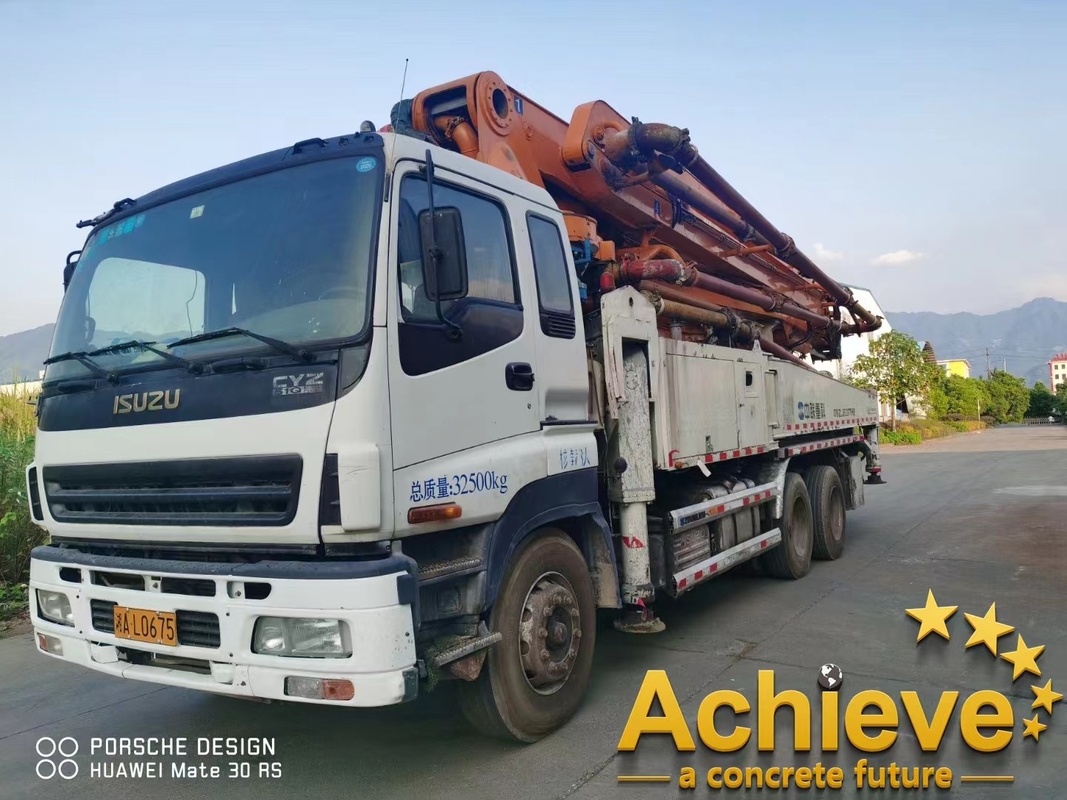

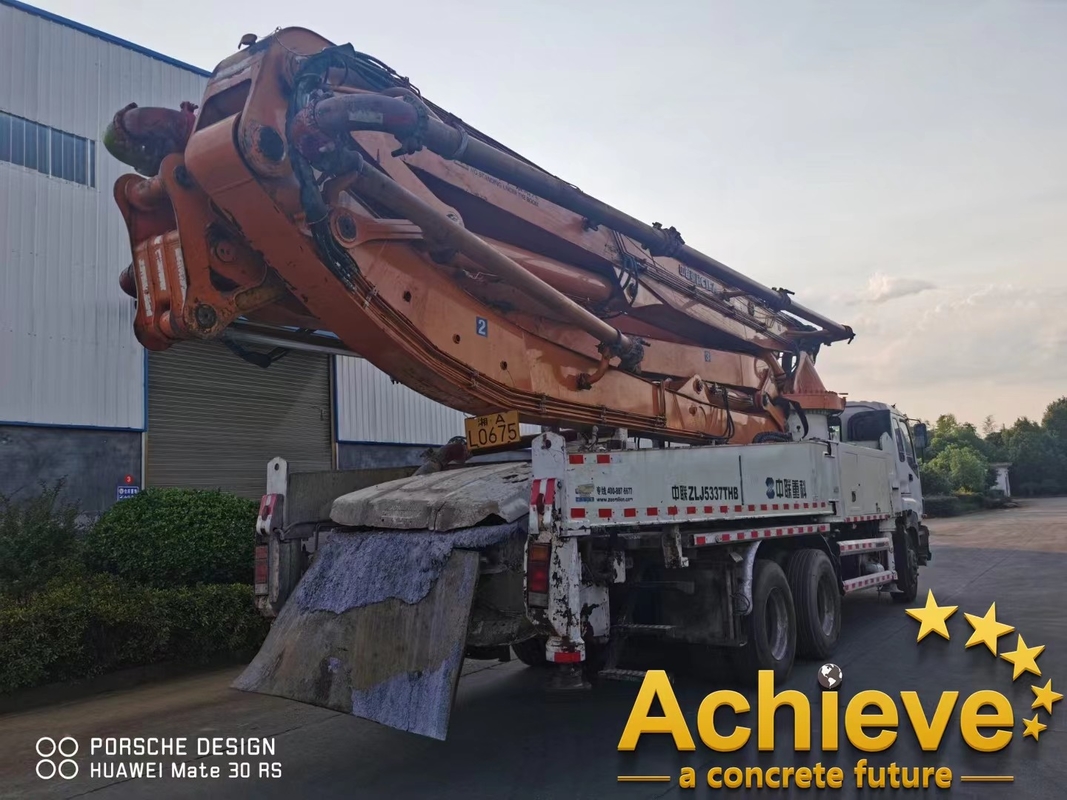

Reconditioned Zoomlion 47X-5RZ Concrete Pump Truck Pumping System End Hose
• Compact in design, 47m pump mounted on a 3-axle truck.
• Boom intelligent damping technology:The soft control of booms in starting, slewing and stopping reduces the impacting vibration of booms and therefore makes the vehicle operate more stably,
reliably and safely.
• Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.
• Adaptive concrete material pumping technology: Improve pumping control system for poor concrete with segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.
Main Parameters
| Model |
ZLJ5339THB 47X-5RZ |
| Pumping system |
Max. Theor. output |
m3/h |
170/120 |
| Max. Theor. concrete output Pressure |
MPa |
8.3/12 |
| Rated working pressure |
MPa |
35 |
| Pumping frequency |
min-1 |
25/18.5 |
| Hopper capacity |
L |
600 |
| Filling height |
|
1540 |
| Hydraulic system type |
|
Open loop |
| Distribution valve |
|
S valve |
| Oil cylinder dia.×stroke |
mm |
Φ150×2100 |
| Concrete cylinder dia.×stroke |
mm |
Φ260×2100 |
| Hydraulic oil cooling |
|
Air cooling |
| Recommended concrete slump |
cm |
12~23 |
| Max. aggregate dimension |
mm |
40 |
| Placing boom |
Structure type |
|
47X-5RZ |
| Placing depth |
m |
47 |
| Horizontal distance |
m |
42.7 |
| Placing depth |
m |
33.4 |
| Slewing angle |
|
±270° |
| Boom number |
|
5 |
| The length of boom section |
mm |
9380/8130/7930/8610/8950 |
| Sections folding angle |
|
90°/180°/180°/240°/180° |
| Pipe diameter |
mm |
125 |
| End hose length |
mm |
3000 |
| Min. height of opening placing boom |
mm |
9700 |
| Outriggers span (front×rear×side) |
mm |
9310×9675×9420 |
| Chassis and the whole machine |
Chassis model |
|
ACTROS 3341 6×4 |
| Wheelbase |
mm |
4500+1350 |
| Engine type |
|
OM501LA |
| Engine power |
kW/(r/min) |
300/1800 |
| Engine moment |
N.m/(r/min) |
2000/1080 |
| Maximum displacement |
cc |
11946 |
| Oil tank cubage |
L |
400 |
| Tail gas exhaust standard |
|
欧Ⅳ |
| Total weight |
kg |
34000 |
| Overall dimensions |
mm |
12020×2500×4000 |
| Others |
Lubrication mode |
|
Automatic lubrication |
| Oil tank volume |
L |
780 |
| Control mode |
|
Manual+remote control |
| Maximum water pressure |
MPa |
7 |
| Water tank volume |
L |
400 |
| Pipe cleaning mode |
|
Water cleaning/dry cleaning |
