ZOOMLION Group based in Changsha China, has more than 50 years of history of innovation. One of the major milestone in the history of the group is the foundation of the CICM, lately ZOOMLION, the Changsha Institute of Construction Machinery. The institute did concentrate all its activity in research and development of technologies applied to construction and in particular to concrete transportation and pumping. Today, ZOOMLION means great product portfolio, innovative solutions, best in class reliability and technology on top of an extended sales network and aftersales support.

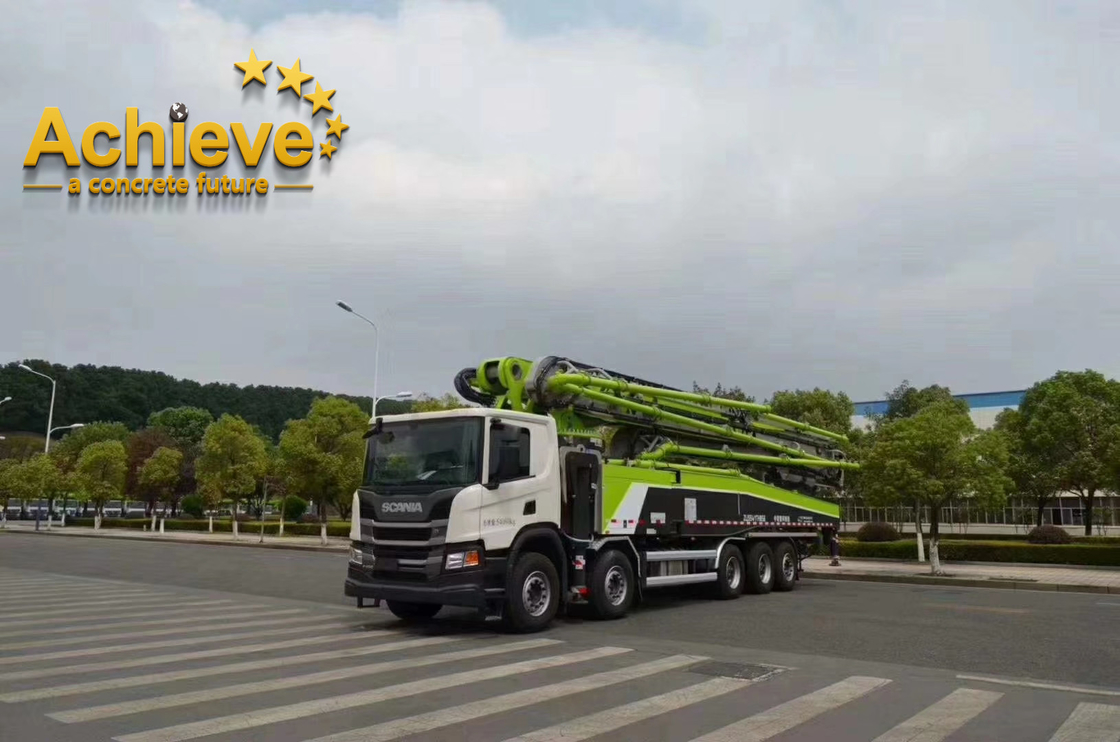

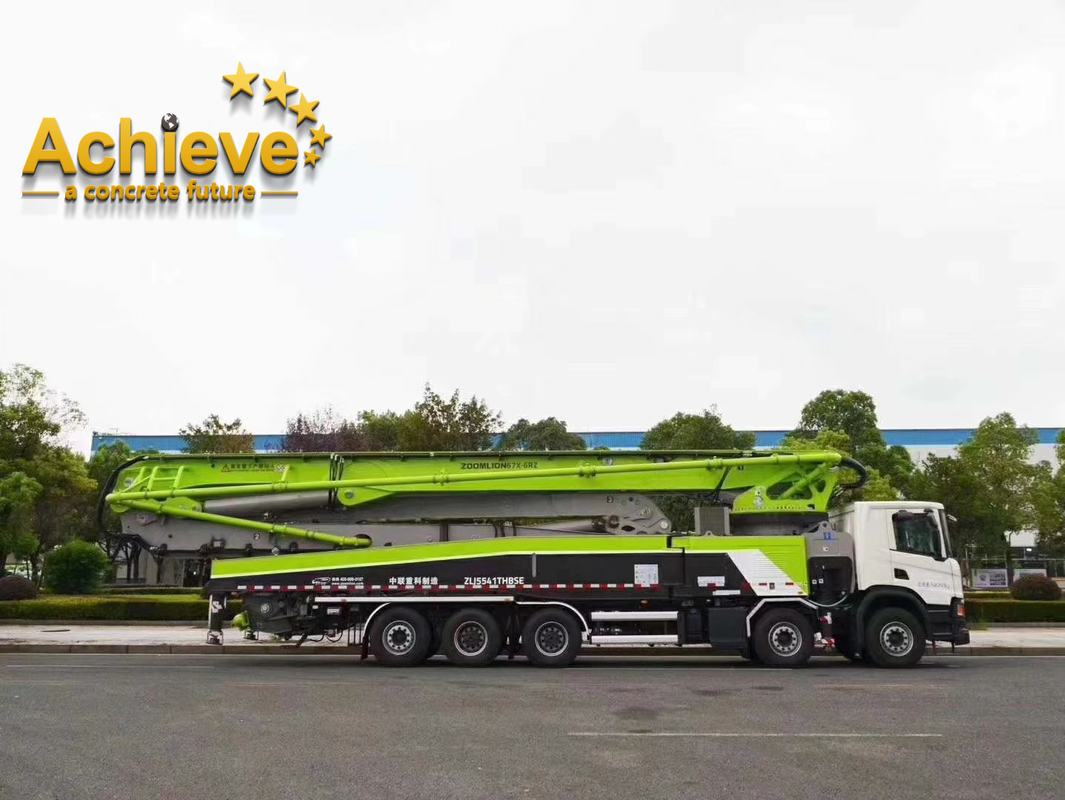

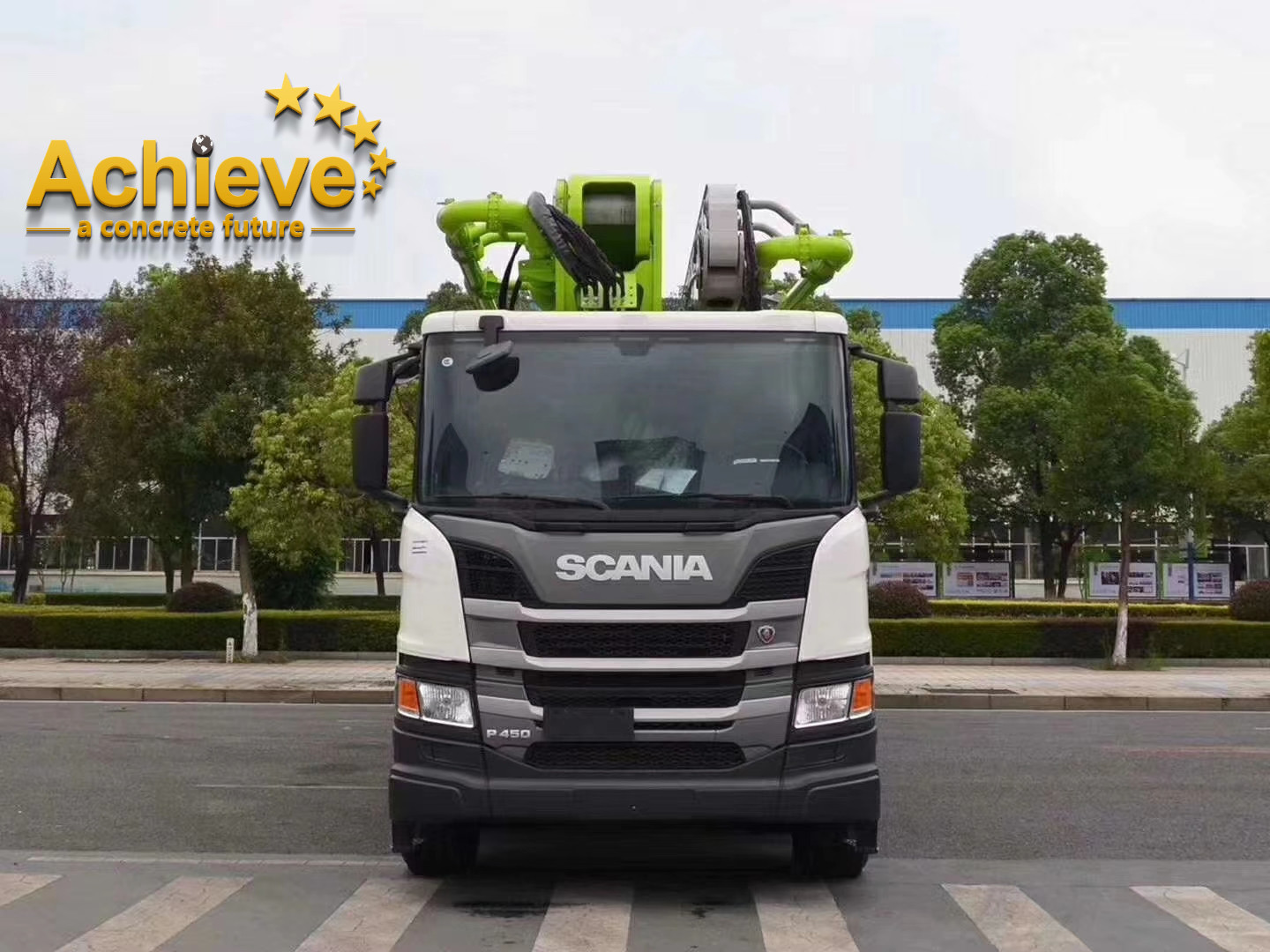

The range of truck-mounted concrete pumps developped for the European Market is only a selection of the technology and the product portfolio of the group. The best combination of features and specifications to work out all task at the job site.
| Pump Unit | Max. Output | 180 m3/h |
| Max. Concrete Output Pressure | 9 MPa | |
| Rated Working Pressure | 35 Mpa | |
| Pumping Frequency | 27 min-1 | |
| Hopper Capacity | 600 L | |
| Filling Height | 1540 mm | |
| Hydraulic System Type | Closed Loop | |
| Distribution Valve | S valve | |
| Oil Cylinder Dia.*Stroke | ψ130*2100 mm | |
| Concrete Cylinder Dia.*Stroke | ψ 230*2100 mm | |
| Hydraulic Oil Cooling | Wind cooling | |
| Max. Aggregatte Dimension | 40 m | |
| Boom Section | Placing Depth | 52 m |
| Max. Horizontal Distance | 48 m | |
| Max. Placing Depth | 37.6 m | |
| Slewing Angle | ±270° | |
| Boom Number | 6 | |
| The Length of Boom Section | 10410/9120/8690/9680/6600/3500 mm | |
| Sections Folding Angle | 90°/180°/180°/240°/195°/210° | |
| Pipe Diameter | 125 mm | |
| End Hose Length | 3000 mm | |
| Min. Height of Opening Placing Boom | 10900 mm | |
| Outriggers Span(front*rear*side) | 9300*11975*10422 mm |
