Used Putzmeister Concrete Pump Machinery M46-5 4141

Used Putzmeister Concrete Pump Machinery M46-5 4141

M46-5 Used Putzmeister Concrete Pump

M46-5 4141 Concrete Pump

Putzmeister Concrete Pump Machinery

Place of Origin:

China

Brand Name:

PUTZMEISTER

Model Number:

M46-5

Contact Us

Request A Quote
Product Details
Arms:
5
Folding Type:
RZ-Folding

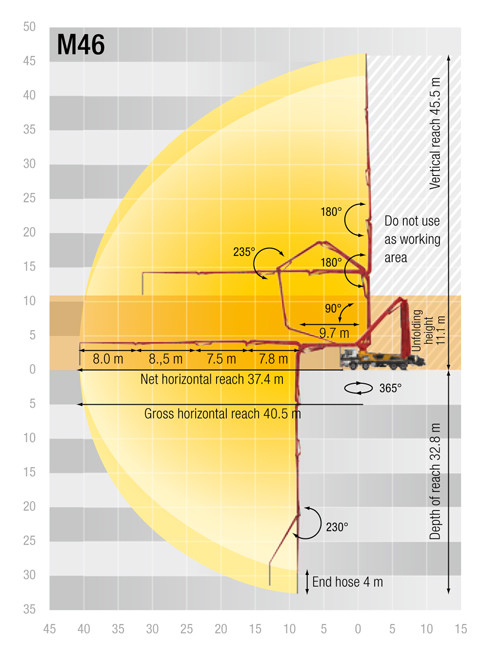

Vertical Reach:
45.5 M
Horizontal Reach Gross:
40.5 M
Horizontal Reach Net:
37.5 M
Reach Depth:
32.8 M
Unfolding Height:
11.1 M
Slewing Range:
365 Degree
End Hose - Length:
4 M
Delivery Line (DN, Pressure):
DN125/5.5 / 85 Mm/bar

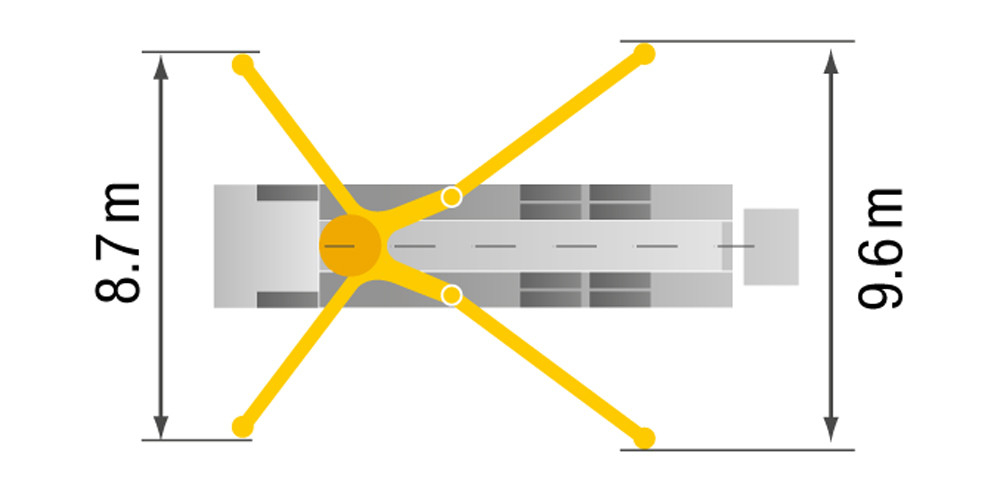

Support Width Standard (front-rear):
8.7 / 9.6 M
Support Width OSS (front-rear):
5.6 / 6.9 M
Support Width ESC (front-rear):
5.6 / 6.3 M

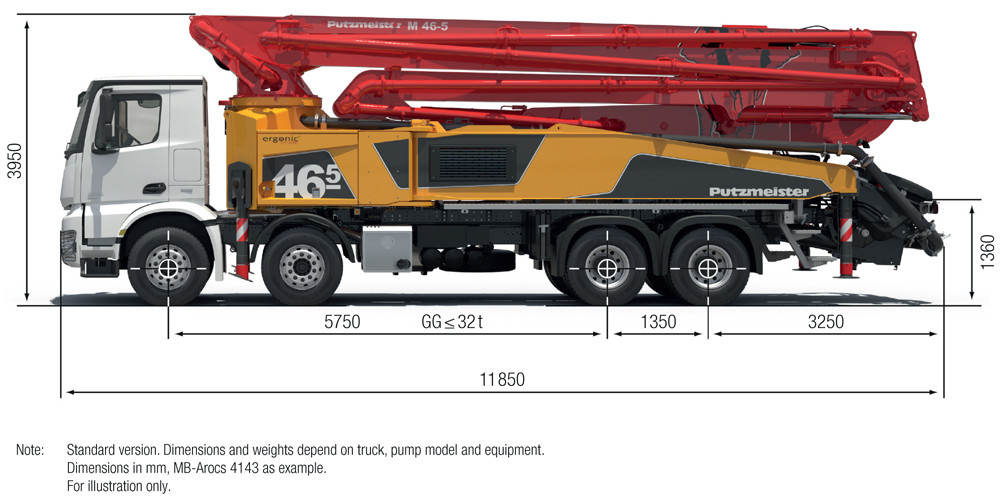

Length X Width X Height:
11.85 X 2.5 X 4 Mm
Total Weight (approx.) Under:
32000 Kg
Product Description

Used Putzmeister Concrete Pump Concrete MachineryM46-5 4141

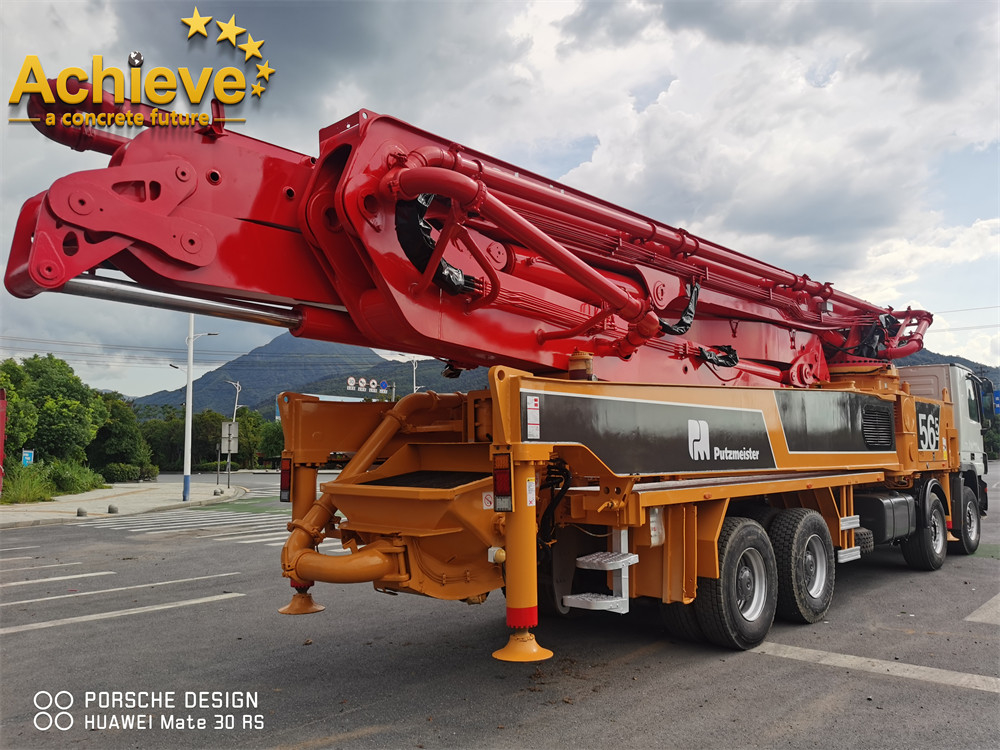

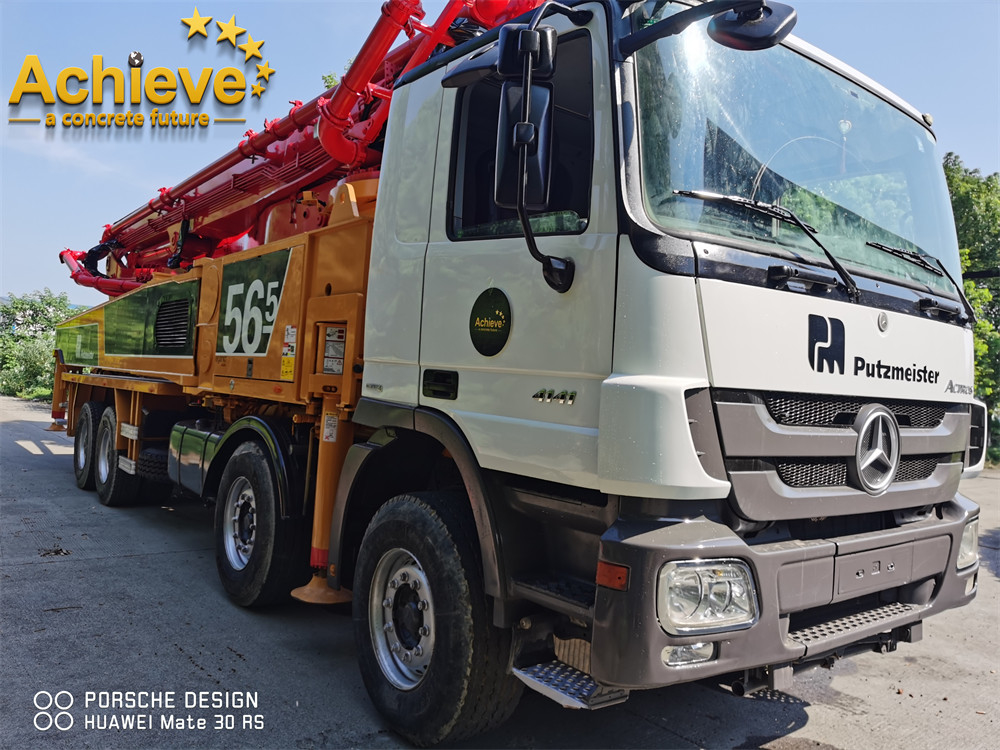

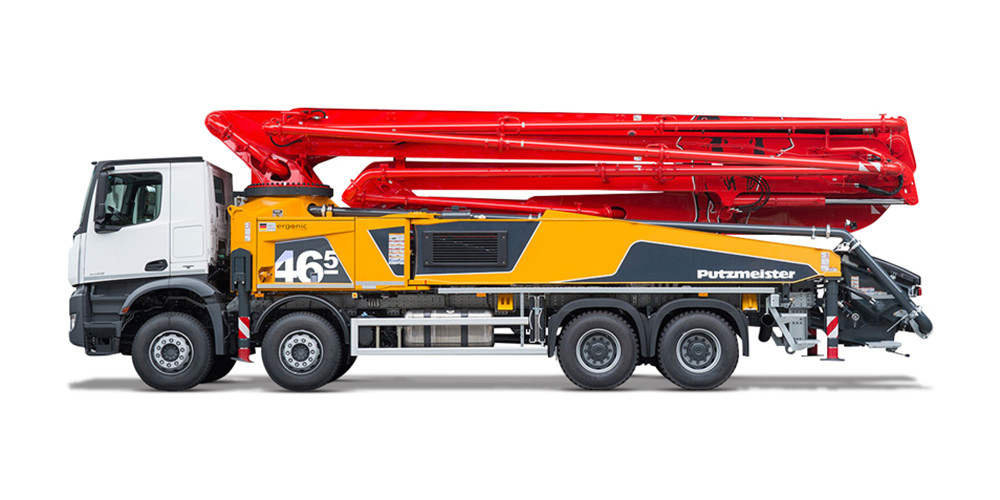

Putzmeister truck-mounted concrete pump M46-5 is a lightweight, high performance machine on 4 axles. Weighing less than 32 t, it is one of the lightest in its class and provides more than sufficient payload reserve. This truck mounted concrete pump can be used in medium and big sized sites and in sites with difficult setup situations. This truck mounted concrete pump can be mounted on 4-axles or 5-axles Chassis of various manufacturers.Used Putzmeister Concrete Pump Machinery M46-5 4141 0Used Putzmeister Concrete Pump Machinery M46-5 4141 1

Key Features

  • Efficient work with Ergonic operating system
  • Below 32 t total weight
  • TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (ESC and OSS, One Side Support optional)
  • Reduced service cost
  • Boom tip load 200kg
  • Smooth 5-section-boom with Roll-Z-foldingUsed Putzmeister Concrete Pump Machinery M46-5 4141 2Used Putzmeister Concrete Pump Machinery M46-5 4141 3Used Putzmeister Concrete Pump Machinery M46-5 4141 4Used Putzmeister Concrete Pump Machinery M46-5 4141 5Space-saving support

  • Both the M46 and the M47 are fitted with the support system developed and optimized by Putzmeister.This technology enables the telescopic front support legs to be adjusted to pre-defined support position.The rear support legs are fully flexible. This is particu- larly beneficial on construction sites where space is extremely limited.Used Putzmeister Concrete Pump Machinery M46-5 4141 6

  • Reliable safety

  • We have comprehensively taken into account all applicable standards and directives, pro- viding an exceptionally high level of safety This means that you are always driving and working on the right side of the law.

  • For example,iSC(Intelligent Setup Control) the support system from Putzmeister meets the DIN EN 12001:2012* standard.
