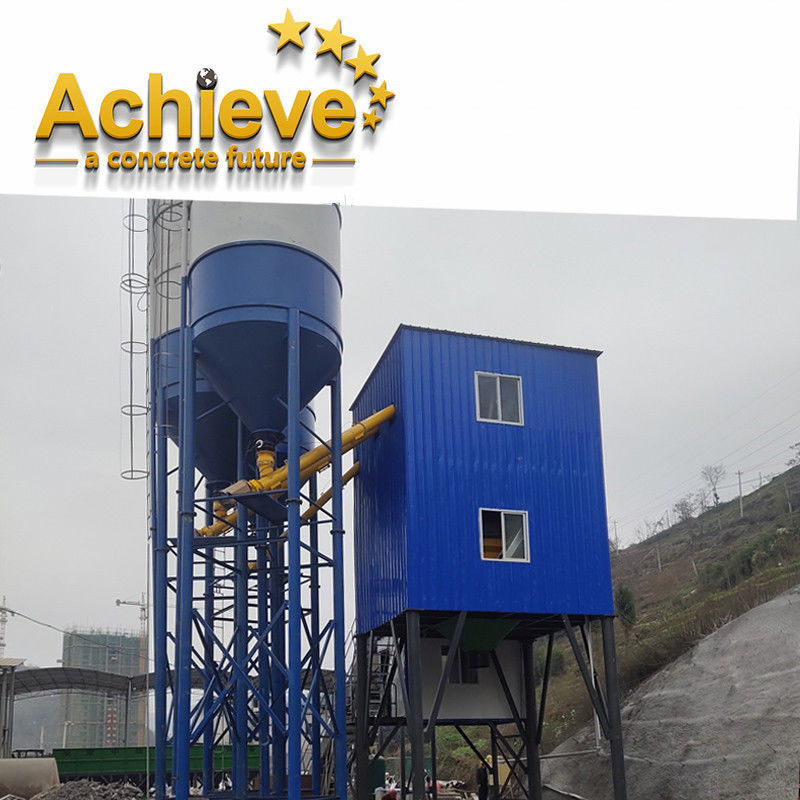

60 CBM Per Hour Ready Mixed Concrete Mixing Plant
HZS60 concrete batching plant | |||
No. | Name | specifications | remark |
1 |
Mixing system
|
1. Model:MAO1000 2. type:Double horizontal shaft 3. Charging Capacity:1600L 4. Discharge Capacity:1250L. 5. Unloading height :4m 6. Motor Power:18.5×2 7. Mixing Blade, liner plate:wear resistant material
|
SICOMA brand |
2 | electrical control system |
The electrical control system consists of computer host, monitor, cabinet, printer, communication cable, weighing instrument, bridge frame, etc. 1.Operation and management all in one, easy to operate. 2.The batching system is controlled by industrial integration. 3.The formula can be expressed in Numbers, easy for user identification and dozens of recipes. 4.It has the function of error analysis and automatic detection. 5.In the absence of automatic control, the manual operating system can still complete the control of the mixing station, such as ingredients, stirring, discharging and so on. 6,The strong electric part of the system is self-contained, which is completely separated from the weak current part, which improves the anti-interference ability of the weak current and makes the strong electric part greatly simplified and the maintenance is more convenient. 7,Equipped with four screen monitoring system.
|
1,printer:EPSON 2,monitor 19”
|
3 | Lift system |
The aggregate lifting system adopts the chevron belt conveyor. 1,chevron belt has high friction, transport speed is fast. 2,Angle:28degree 3,lift speed:best speed 4,transport capacity:500t/h
|
|
4 |
aggregate-weighing system
|
Aggregate weighing system consists of: bone silo, rack, weighing hopper, aggregate conveyor, sensor, etc. 1,aggregate bin (1)capacity:10m3×3 (2)discharge door:6sets (3) air cylinder:80×310 2,weighing hopper (1)capacity:1.2m3×3 (2)measuring type:cumulative measure (3)sensor:2000kg×4 3,belt conveyor (1)belt model:800mm (2)belt speed:1.6m/s 4, rolling power:11kw 5,vibrator:0.5KW*2 description: the aggregate loaded to aggregate bins by wheel loader, there are three bins, every bin has two discharge door, In order to achieve the measurement of rough and fine. The weighing hopper is the three positions on the belt, the aggregate discharge to the belt to measuring by four sensors on the belt. The signals sent by the four sensors are processed and sent to the microcomputer in the main control room.
|
|
5 |
cement-weighing system
|
cement-weighing system consists of: cement weighing hopper, pneumatic butterfly valve and sensor etc. 1,cement weighing hopper: (1)capacity:650L. (2)weighing scale:0~1000kg (3)weighing accuracy:±1% 2,sensor:1000kg×3 3,pneumatic butterfly valve:DN300 description: The cement weighing device is fully sealed, and the weighing hopper is measured by 3 sensors. The weighing hopper door adopts the typical pneumatic butterfly valve, which is flexible and tightly sealed. |
|
6 |
powder-weighing system
|
powder-weighing system consists of weighing hopper, pneumatic butterfly valve and sensor. 1,powder weighing hopper:: a)capacity:600L b) weighing scale:0~880 kg c) weighing accuracy:±1% 2,sensor:500kg×3 3,pneumatic butterfly valve:DN300 description: The powder weighing system is filled with a full sealing device, and the weighing hopper is measured by three sensors. The weighing hopper door adopts the typical pneumatic butterfly valve, which is flexible and tightly sealed. |
|
7 | Water weighing system |
Water weighing system consists of: water tank (customer own), water pump, water weighing hopper, pneumatic butterfly valve, etc.. 1,water supply pump:3kW 2,water injection pump:3kW 3,weighing scale:400L 4,sensor:500kg×3 5,pneumatic butterfly valve:DN200 6,weighing accuracy:±1% description: Under the control of the control system, the pump will be pumped into the water weighing hopper, and the pump will stop when the sensor is measured to the preset value. When the water is discharged, the pneumatic butterfly valve is opened, the discharge pump is started, and the pump is pumped into the mixer. |
|
8 | Liquid admixture measurement system |
The admixture weighing system consists of: admixture storage box, admixture, admixture pump, pneumatic butterfly valve, sensor and so on. 1,weighing accuracy:±1% 2,sensor:100kg×1 3,pneumatic butterfly valve:DN80×1 description: With the control of the control system, the admixture pump pumped out the admixture, and the pump stops when the sensor is measured to the preset value. The pneumatic butterfly valve is opened when unloading, so that the admixture flows to the water weighing hopper and flows into the mixer with the water. At the same time, the water pump continues to work on the circulating admixture, stirring, in case the admixture is precipitated, the pump is controlled by the microcomputer. |
|
9 | Air system |
Pneumatic system consists of air compressor, cylinder, solenoid valve and gas circuit element. 1,air compressor:12 Kw 2,air tank:warranty one year, 0.1m+0.6 m3 description: 1,control the discharge door. 2,control the butterfly valve. 3,control the broken arch of the cement silo. 4, Control the mixer double door.
|
|
10 | Main building | composed of ladder, platform, guardrail, steel frame and so on | |
11 | Screw conveyer |
Cement screw conveyer, powder and powder admixture screw conveyer. (1)model:Φ219 (2)number:2 sets (3)delivery capacity:65t/h (4)motor power:11 kw description: 1,The powder conveying adopts the whole sealing device. The soft connection between the outlet and the measuring bucket does not affect the measurement accuracy. 2,The feeding port is universal ball joint, adjustable Angle deviation and good sealing. The spiral blade has small clearance and high transmission efficiency..
|
|
12 |
Powder silo |
1)capacity:100T*2 description:The top of the powder bin is equipped with a dust collector, which reduces the load pressure of the powder bin and prevents the dust from contaminating the air. The broken arch device is installed in the cone, combined with the gas road system and control system, which can automatically break the arch of the cement in real time, and also can break the arch manually.
|
