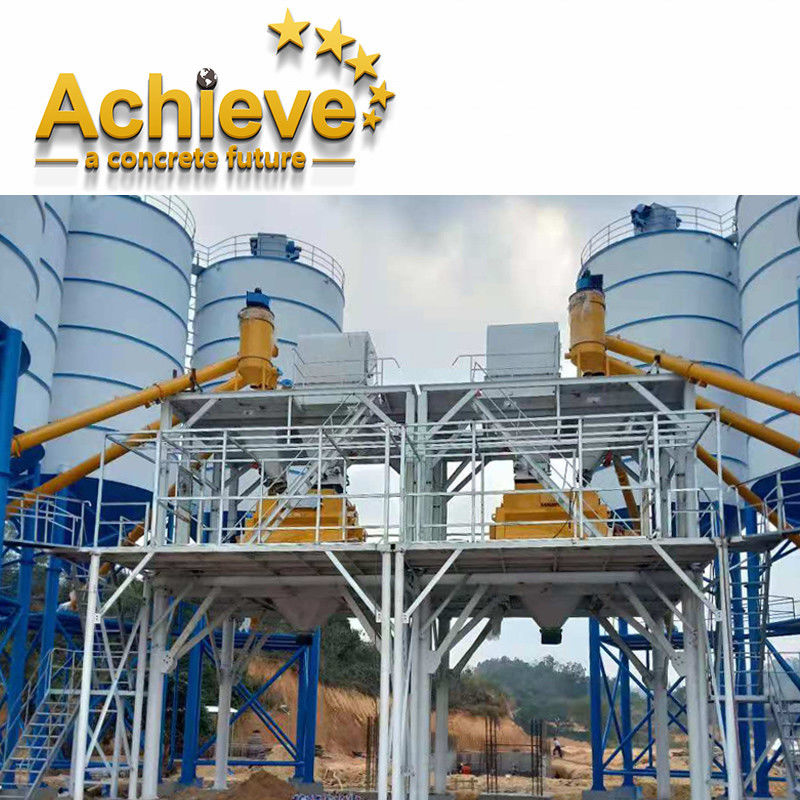

MAO3000 Small Concrete Batching Plant Ready Mixed 4.1m 180 CBM Per Hour

Product Details:
Place of Origin: Changsha,China
Brand Name: Achieve
Model Number: HZS180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 120000--200000 per set
Packaging Details: nude
Delivery Time: 10-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month

Detail Information

Application: Building Works, Construction Projects, Bridges, Docks, Airport Power Type: Electric
Mixer: MAO3000 Condition: New
Material: Steel After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Installation, Commissioning And Training
Color: Customized, Blue, Changable, Yellow, Etc Discharging Height: 4.1m
Capacity: 180 CBM Per Hour Product Name: Concrete Mixing Plant
Control System: Automatic PLC Control Cement Silo: 100t,150t
Productivity: ≤180m3/h
High Light:

180 CBM Concrete Batching Plant

,

MAO3000 Concrete Batching Plant

,

4.1m small concrete batch plant

Product Description



180 CBM Per Hour Ready Mixed Concrete Mixing Plant





No. Name specifications Brand QTY UNIT
1 JS3000 double horizontal shaft mixer from SICOMA mixer JS3000 SICOMA 1 set
main gearbox JS3.0 SICOMA 2 set
main motor 55kw SICOMA 2 set
Electric heavy oil pump   SICOMA 1 set

· Hydraulic system



  SICOMA 1 set
Tube cover and eyelet loading   SICOMA 1 set
dust-collecting pipe   SICOMA 1 set

· Lining and blade



high-strength alloy SICOMA 1 set
3 PLD4200 batcher Electric roller

15 Kw

1.25m/s

Jinshengxi 1 Set
Belt tailstock   Achieve 1 Set
flat-belt 1200mm Shengyun 1 Strip
Belt frame   Achieve 1 Set
Passive roller   Achieve 1 Set
Slotted roller   Achieve 1 Set
sweeper   Achieve 1 Set
scale hopper 2.5m3 Achieve 4 Piece
aggregate bin 22m3 Achieve 4 Unit
vibrator   Hongyu 4 Unit
cylinder SC100×350 Jinneng 12 Unit
4 Aggregate belt feeding system and waiting hopper Electric roller

45Kw

2.0m/s

Jinshengxi 1 Unit
chevron form belt 1200mm Shengyun 1 Strip
Passive roller   Achieve 1 SET
Heavy lifting tensioning device   Achieve 1 SET
Adjust belt roller device   Achieve 3 SET
· Roller group   Achieve 1 SET
sweeper   Achieve 1 SET
unload control cylinder 125×200 Jinneng 2 Set
5 Water measuring system scale hopper 1000Kg Achieve 1 Unit
Frame   Achieve 1 Unit
Pneumatic butterfly valve φ150mm Great wall 1 Unit
Precise weighing pneumatic butterfly valve φ50mm Great wall 1 Unit
Water pump (external) 7.5Kw Pangding 1 Unit
Water pump frame   Achieve 1 Set
water pipe, valve     1 Set
6 Additive weighing system Additive measuring box 50Kg Achieve 1 Unit
Frame   Achieve 1 Unit
Pneumatic butterfly valve φ50mm Great wall 1 Unit
Additive pump(external) 2.2Kw Shanghai renmin 2 Unit
valve     1 Set
Pipes     1 Set
7

Cement

weighing system

weighing hopper 1000Kg Achieve 1 Unit
Frame   Achieve 1 Unit
Pneumatic butterfly valve φ300mm Great wall 1 Unit
8 Fly ash weighing system weighing hopper 800Kg Achieve 1 Unit
Frame   Achieve 1 Unit
Pneumatic butterfly valve φ300mm Great wall 1 Unit
9
screw conveyor
9m

Φ325,

273mm

Achieve

4 Unit
10 pneumatic control system pneumatic component     1 Unit
air compressor 7.5Kw JAGUAR 2 Unit
gasholder 1.0m³/0.3m³ ZENBO 2 Unit
Sensor solenoid valve   ZHEJIANG JULONG 1 Unit
oil-water separator     1 Unit
ball valve     1 Set
Pipeline and connection     1 Set
11 Cement silos bolted cement silo 150t Achieve 4 Unit
12 dust collector Electric dust collection 1 Set
13 control system



BOSURE SYSTEM, eight scale

1 Set


5 With Customers.jpg

MAO3000 Small Concrete Batching Plant Ready Mixed 4.1m 180 CBM Per Hour 1

                     Achieve Innovations (Changsha) Co.,Ltd.

♥. A leading Supplier in the Construction Machinery Industry for Premium quality China-made Products
♥. Specializing in Concrete Machinery, Used & Recondition, Tailor-made Equipment & Parts
♥. We are a professional team, over 10 years experience in this industry.



♥.Achieve batching plant factory focused on the domestic market and sells more than 200 sets of batching

plants in the local market every year. It has participated in many major construction projects in China, and

ranked top five in sales of the batching plant,it is the largest buyer of SICOMA mixer, which is the domestic

first-class mixer brand. Chinese customers have a better understanding of Chinese products,The huge sales

in China help us accumulated rich experience in the production and quality of our batching plant, and the large

procurement also help us reduced the procurement costs. Now, with the professional international trade ability

of the Achieve overseas team, Achieve batching plant has been exported to more than 10 countries in

Southeast Asia, Central Asia and Africa.In the future, Achieve batching plant will serve more countries and customers.
