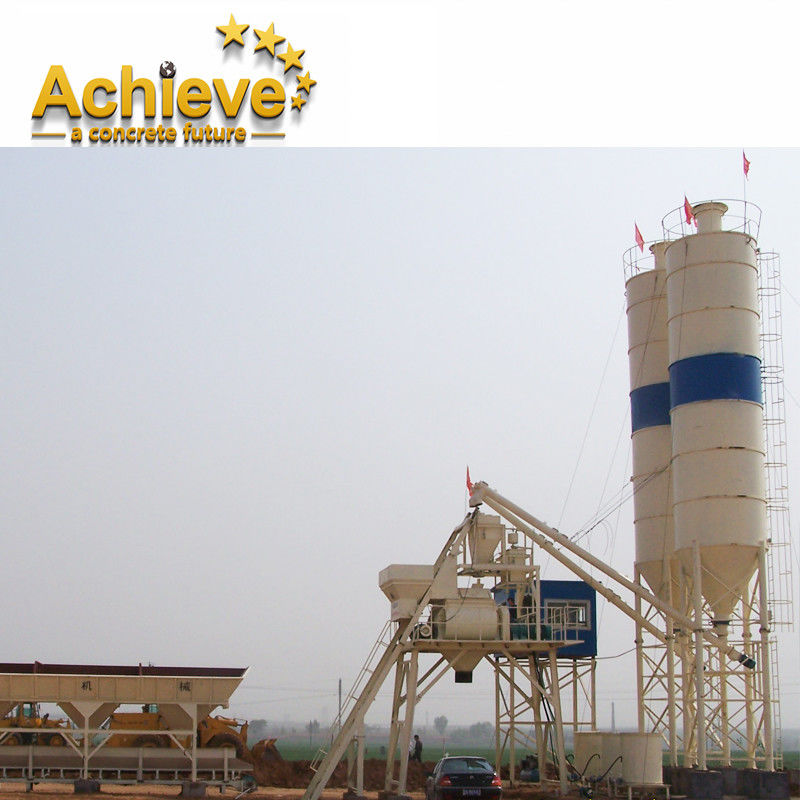

JS750 Ready Mix Concrete Batching Plant Systems 35 CBM Per Hour 3.8m

Product Details:
Place of Origin: Changsha,China
Brand Name: Achieve
Model Number: HZS35
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 20000--60000 per set
Packaging Details: nude
Delivery Time: 10-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month

Detail Information

Application: Building Works, Construction Projects, Bridges, Docks, Airport Power Type: Electric
Mixer: JS750 Condition: New
Material: Steel After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Installation, Commissioning And Training
Color: Customized, Blue, Changable, Yellow, Etc Discharging Height: 3.8m
Capacity: 35 CBM Per Hour Product Name: Concrete Mixing Plant
Control System: Automatic PLC Control Cement Silo: 50t
Productivity: ≤35m3/h
High Light:

35 CBM Concrete Batching Plant

,

JS750 Ready Mix Concrete Batching Plant

,

3.8m concrete batching systems

Product Description

35 CBM Per Hour Ready Mixed Concrete Mixing Plant



  Name Specifications Qty Unit
1. Mixer











JS750 double horizontal shaft mixer, 3.8m discharge height

Mixer JS750 1 set
Main Motor 30Kw 1 set
Main Gearbox JS0.75 1 set
Hand-operated heavy oil pump   2 set
Door open by Pneumatic   2 pieces
Tube cover and eyelet loading   1 pieces
Lining and blade high-strength alloy 1 set
2. The main body steel structure
  Lower Support 160mm steel column 1 set
Leg   1 pieces
Aggregate receiving hopper   1 pieces
Walking platform 500mm Width 3 set
Guide rail 120mm steel column 1 set
Protective Guard 2mm×3mm 1 set
Ladder   1 set
3.Measuring System
Cement Measuring System Scale hopper 300Kg 1 pieces
Frame 120mm steel column 1 set
Sensor 500Kg 3 pieces
Pneumatic butterfly valve Ф300mm 1 pieces
Water Measuring System Scale hopper 400Kg 1 pieces
Frame 120mm steel column 1 pieces
Sensor 500Kg 3 pieces
Pneumatic butterfly valve Ф300mm 1 pieces
Centrifugal Pump   1 pieces
Sewage Pump   1 pieces
water pipe, valve   1 set
Additive Measuring System Additive measuring box 70Kg 0 pieces
Sensor 50Kg 0 pieces
Pneumatic butterfly valve Ф50mm 0 pieces
Frame 120mm steel column 0 set
Additive pump 1.5Kw 0 pieces
Pipes,valve   0 set
5. Pneumatic System
Pneumatic Control System Pneumatic Component   1 set
Air Compressor 0.25m³ 1 set
Solenoid Valve 4v410-15 1 set
Oil-water Separator BFC1000 1 pieces
Ball Valve     set
Pipeline and connection     set
6. Cement Silo and Screw Conveyor
Cement Silo 50T Φ3000mm 0 pieces
Screw Conveyor 9 meter Ф219mm 1 set
7. Batching System
PLD 1200 Batching Plant Motor 3kw 4 set
Belt Tailstock 120mm steel column 1 set
Flat-Belt Width 500mm 4 pieces
Belt frame 120mm steel column 1 set
Passive roller Φ230 1 set
Sweeper   1 set
Scale hopper ≤1.5 1 pieces
Storage Hopper 2.5 3 pieces
Sensor 1000Kg 3 pieces
Whole Structure   1 pieces
8.Control System
Automatic Control System system Shandong BOSURE 1 set
Operation platform   1 set



5 With Customers.jpg

JS750 Ready Mix Concrete Batching Plant Systems 35 CBM Per Hour  3.8m 1

                     Achieve Innovations (Changsha) Co.,Ltd.

♥. A leading Supplier in the Construction Machinery Industry for Premium quality China-made Products
♥. Specializing in Concrete Machinery, Used & Recondition, Tailor-made Equipment & Parts
♥. We are a professional team, over 10 years experience in this industry.



♥.Achieve batching plant factory focused on the domestic market and sells more than 200 sets of batching

plants in the local market every year. It has participated in many major construction projects in China, and

ranked top five in sales of the batching plant,it is the largest buyer of SICOMA mixer, which is the domestic

first-class mixer brand. Chinese customers have a better understanding of Chinese products,The huge sales

in China help us accumulated rich experience in the production and quality of our batching plant, and the large

procurement also help us reduced the procurement costs. Now, with the professional international trade ability

of the Achieve overseas team, Achieve batching plant has been exported to more than 10 countries in

Southeast Asia, Central Asia and Africa.In the future, Achieve batching plant will serve more countries and customers.

JS750 Ready Mix Concrete Batching Plant Systems 35 CBM Per Hour  3.8m 2

JS750 Ready Mix Concrete Batching Plant Systems 35 CBM Per Hour  3.8m 3

JS750 Ready Mix Concrete Batching Plant Systems 35 CBM Per Hour  3.8m 4
