MAO1000 Aggregate Belt Conveyor 60 CBM Per Hour Ready Mixed Concrete Mixing Plant 100t

Product Details:
Place of Origin: Changsha,China
Brand Name: Achieve
Model Number: HZS60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50000--90000 per set
Packaging Details: nude
Delivery Time: 10-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month

Detail Information

Application: Building Works, Construction Projects, Bridges, Docks, Airport Power Type: Electric
Mixer: MAO1000 Condition: New
Material: Steel After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Installation, Commissioning And Training
Color: Customized, Blue, Changable, Yellow, Etc Discharging Height: 4.1m
Capacity: 60 CBM Per Hour Product Name: Concrete Mixing Plant
Control System: Automatic PLC Control Cement Silo: 50t,100t
Productivity: ≤60m3/h
High Light:

MAO1000 Aggregate Belt Conveyor

,

60 CBM Aggregate Belt Conveyor

,

100t Ready Mixed Concrete Mixing Plant

Product Description

Aggregate Belt Conveyor 60 CBM Per Hour Ready Mixed Concrete Mixing Plant

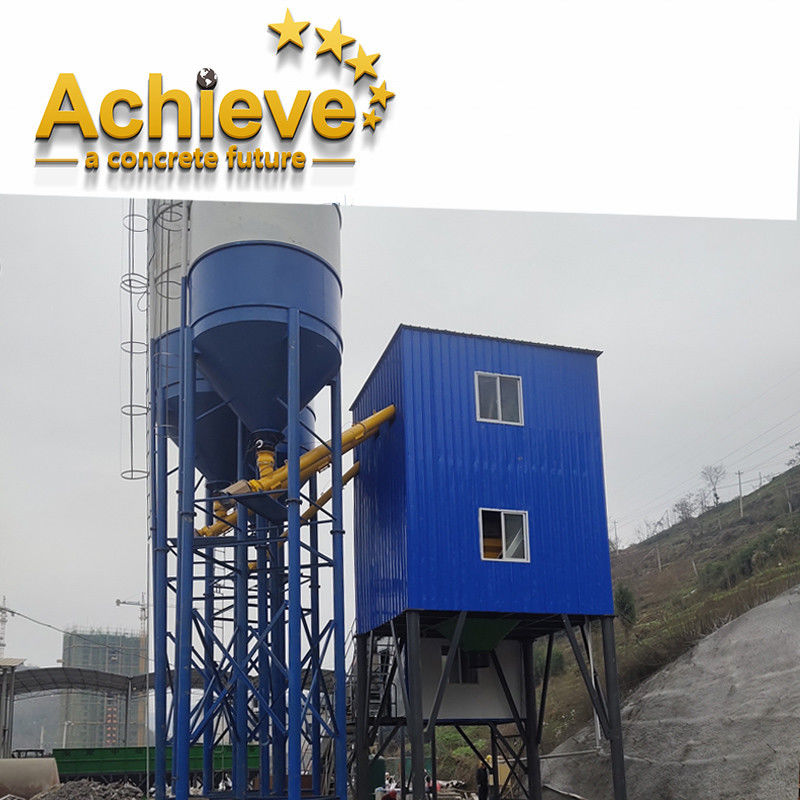

MAO1000 Aggregate Belt Conveyor 60 CBM Per Hour Ready Mixed Concrete Mixing Plant 100t 0





HZS60 concrete batching plant
No. Name specifications remark
1

Mixing system



1. Model:MAO1000

2. type:Double horizontal shaft

3. Charging Capacity:1600L

4. Discharge Capacity:1250L.

5. Unloading height :4m

6. Motor Power:18.5×2

7. Mixing Blade, liner plate:wear resistant material



SICOMA brand
2 electrical control system

The electrical control system consists of computer host, monitor, cabinet, printer, communication cable, weighing instrument, bridge frame, etc.

1.Operation and management all in one, easy to operate.

2.The batching system is controlled by industrial integration.

3.The formula can be expressed in Numbers, easy for user identification and dozens of recipes.

4.It has the function of error analysis and automatic detection.

5.In the absence of automatic control, the manual operating system can still complete the control of the mixing station, such as ingredients, stirring, discharging and so on.

6,The strong electric part of the system is self-contained, which is completely separated from the weak current part, which improves the anti-interference ability of the weak current and makes the strong electric part greatly simplified and the maintenance is more convenient.

7,Equipped with four screen monitoring system.



1,printer:EPSON

2,monitor 19”



3 Lift system

The aggregate lifting system adopts the chevron belt conveyor.

1,chevron belt has high friction, transport speed is fast.

2,Angle:28degree

3,lift speed:best speed

4,transport capacity:500t/h




4

aggregate-weighing system



Aggregate weighing system consists of: bone silo, rack, weighing hopper, aggregate conveyor, sensor, etc.

1,aggregate bin

(1)capacity:10m3×3

(2)discharge door:6sets

(3) air cylinder:80×310

2,weighing hopper

(1)capacity:1.2m3×3

(2)measuring type:cumulative measure

(3)sensor:2000kg×4

(4) measuring accuracy:±1%

3,belt conveyor

(1)belt model:800mm

(2)belt speed:1.6m/s

4, rolling power:11kw

5,vibrator:0.5KW*2

description:

the aggregate loaded to aggregate bins by wheel loader, there are three bins, every bin has two discharge door, In order to achieve the measurement of rough and fine. The weighing hopper is the three positions on the belt, the aggregate discharge to the belt to measuring by four sensors on the belt. The signals sent by the four sensors are processed and sent to the microcomputer in the main control room.







5

cement-weighing system



cement-weighing system consists of: cement weighing hopper, pneumatic butterfly valve and sensor etc.

1,cement weighing hopper:

(1)capacity:650L.

(2)weighing scale:0~1000kg

(3)weighing accuracy:±1%

2,sensor:1000kg×3

3,pneumatic butterfly valve:DN300

description:

The cement weighing device is fully sealed, and the weighing hopper is measured by 3 sensors. The weighing hopper door adopts the typical pneumatic butterfly valve, which is flexible and tightly sealed.


6

powder-weighing system



powder-weighing system consists of weighing hopper, pneumatic butterfly valve and sensor.

1,powder weighing hopper::

a)capacity:600L

b) weighing scale:0~880 kg

c) weighing accuracy:±1%

2,sensor:500kg×3

3,pneumatic butterfly valve:DN300

description:

The powder weighing system is filled with a full sealing device, and the weighing hopper is measured by three sensors. The weighing hopper door adopts the typical pneumatic butterfly valve, which is flexible and tightly sealed.


7 Water weighing system

Water weighing system consists of: water tank (customer own), water pump, water weighing hopper, pneumatic butterfly valve, etc..

1,water supply pump:3kW

2,water injection pump:3kW

3,weighing scale:400L

4,sensor:500kg×3

5,pneumatic butterfly valve:DN200

6,weighing accuracy:±1%

description:

Under the control of the control system, the pump will be pumped into the water weighing hopper, and the pump will stop when the sensor is measured to the preset value. When the water is discharged, the pneumatic butterfly valve is opened, the discharge pump is started, and the pump is pumped into the mixer.


8 Liquid admixture measurement system

The admixture weighing system consists of: admixture storage box, admixture, admixture pump, pneumatic butterfly valve, sensor and so on.

1,weighing accuracy:±1%

2,sensor:100kg×1

3,pneumatic butterfly valve:DN80×1

description:

With the control of the control system, the admixture pump pumped out the admixture, and the pump stops when the sensor is measured to the preset value. The pneumatic butterfly valve is opened when unloading, so that the admixture flows to the water weighing hopper and flows into the mixer with the water. At the same time, the water pump continues to work on the circulating admixture, stirring, in case the admixture is precipitated, the pump is controlled by the microcomputer.


9 Air system

Pneumatic system consists of air compressor, cylinder, solenoid valve and gas circuit element.

1,air compressor:12 Kw

2,air tank:warranty one year, 0.1m+0.6 m3

description:

1,control the discharge door.

2,control the butterfly valve.

3,control the broken arch of the cement silo.

4, Control the mixer double door.




10 Main building composed of ladder, platform, guardrail, steel frame and so on
11 Screw conveyer

Cement screw conveyer, powder and powder admixture screw conveyer.

(1)model:Φ219

(2)number:2 sets

(3)delivery capacity:65t/h

(4)motor power:11 kw

description:

1,The powder conveying adopts the whole sealing device. The soft connection between the outlet and the measuring bucket does not affect the measurement accuracy.

2,The feeding port is universal ball joint, adjustable Angle deviation and good sealing. The spiral blade has small clearance and high transmission efficiency..




12

Powder silo

1)capacity:100T*2

description:The top of the powder bin is equipped with a dust collector, which reduces the load pressure of the powder bin and prevents the dust from contaminating the air. The broken arch device is installed in the cone, combined with the gas road system and control system, which can automatically break the arch of the cement in real time, and also can break the arch manually.












































































































































MAO1000 Aggregate Belt Conveyor 60 CBM Per Hour Ready Mixed Concrete Mixing Plant 100t 1





What are belt conveyors?

MAO1000 Aggregate Belt Conveyor 60 CBM Per Hour Ready Mixed Concrete Mixing Plant 100t 2

Also called conveyor belts, these systems are designed to transport light-to-heavy bulk

loads through spaces and around corners. There are several types of conveyor belts

available on the market.

The applications for belt conveyors vary from industry to industry. They are used in several

fields such as food processing, mining, and agriculture, concrete batching plant,among

others, for the creative and efficient transportation of goods and concrete aggregate.

Conveyor belts can be installed almost anywhere in a work environment. They are highly

versatile and capable of supporting ridiculously heavy items. Belt conveyors are durable

and can be repaired with relative ease. Through splicing, they can also be expanded to

support heavier and more frequent loads.



5 With Customers.jpg

MAO1000 Aggregate Belt Conveyor 60 CBM Per Hour Ready Mixed Concrete Mixing Plant 100t 4

                     Achieve Innovations (Changsha) Co.,Ltd.

♥. A leading Supplier in the Construction Machinery Industry for Premium quality China-made Products
♥. Specializing in Concrete Machinery, Used & Recondition, Tailor-made Equipment & Parts
♥. We are a professional team, over 10 years experience in this industry.



♥.Achieve batching plant factory focused on the domestic market and sells more than 200 sets of batching

plants in the local market every year. It has participated in many major construction projects in China, and

ranked top five in sales of the batching plant,it is the largest buyer of SICOMA mixer, which is the domestic

first-class mixer brand. Chinese customers have a better understanding of Chinese products,The huge sales

in China help us accumulated rich experience in the production and quality of our batching plant, and the large

procurement also help us reduced the procurement costs. Now, with the professional international trade ability

of the Achieve overseas team, Achieve batching plant has been exported to more than 10 countries in

Southeast Asia, Central Asia and Africa.In the future, Achieve batching plant will serve more countries and customers.
