China Putzmeister Concrete Pump Parts manufacturer

Automatic Concrete Batching Plant 60 -240 CBM Per Hour Ready Mixed MAO4000 132kw

Product Details:
Place of Origin: Changsha,China
Brand Name: Achieve
Model Number: HZS240
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 187500--240000 per set
Packaging Details: nude
Delivery Time: 35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month

Detail Information

Application: Building Works, Construction Projects, Bridges, Docks, Airport Power Type: Electric
Mixer: MAO4000 Condition: New
Material: Steel After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Installation, Commissioning And Training
Color: Customized, Blue, Changable, Yellow, Etc Discharging Height: 4.1m
Capacity: 240 CBM Per Hour Product Name: Concrete Batching Plant
Control System: Automatic PLC Control Cement Silo: 200t
Productivity: ≤240m3/h
High Light:

MAO4000 Automatic Concrete Batching Plant

,

132kw Concrete Batching Plant

,

240 CBM concrete batching and mixing plant

Product Description

60 -240 CBM Per Hour Ready Mixed Concrete Batching Plant Operation Process And Attentions



concrete batching plant operation process and attentions

1. First, you need to observe the safety around the equipment to see if anyone is repairing the equipment.

2. Then power on the device, then check if the computer interface device is normal, If the equipment is abnormal,
it should be repaired in time.

3. After the equipment is normal, first open the air compressor.

4. After the air compressor is running normally at 5 to 8 Pressures, starts the equipment power switch
“Host – Skew Belt – Flat Belt” in sequence.

5. Click on the production details required by the interface to start production.

6. Concentrate on the work, pay attention to the observation system of the instrument, indicator, belt conveyor and
batcher. When there are large stones and materials, it should be removed in time.

7. The mixer should not stop when it is fully loaded. When a fault or power failure occurs, the power should be cut
off immediately, the switch box should be locked, the concrete in the mixer should be cleaned, and then the fault
should be eliminated or the power should be restored.

8. Maintenance, maintenance, lubrication, fastening, etc. cannot be performed during mechanical operation. I
t is forbidden to place your hands and feet near gates, belts, spiral tubes, motors, etc.

9. The operation completes the equipment shutdown, then closes the switches and pipeline equipment in sequence,
and the operator can confirm the safety before notifying the cleaning or maintenance personnel to clean or repair.




MODEL HZS 60 HZS 90 HZS 120 HZS 180 HZS 240
Theoretical production(m3/h) 60 90 120 180 240
Mixer Model JS1000 JS1500 JS2000 JS3000 JS4000
Power(kw) 2*18.5 2*30 2*37 2*55 2*75
Output(L) 1000 1500 2000 3000 4000
Batcher Hopper capacity(m3) 10 15 18 22 24
Hopper quantity 3 3 4 4 4
Hopper Quantily 100 150 250 350 500
Weighing Scope And Accuracy Aggregate(kg) 2000±2% 3000±2% 4800±2% 8000±2% 10000±2%
Cement(kg) 600±1% 900±1% 1200±1% 1800±1% 2000±1%
Powder(kg) 600±1% 900±1% 1200±1% 1800±1% 2000±1%
Water(kg) 200±1% 400±1% 500±1% 800±1% 900±1%
Admixture(kg) 30±1% 30±1% 30±1% 30±1% 30±1%
Total Power(kw) 132 177 220 280 320
Discharge Height(m) 4.1 4.1 4.1 4.1 4.1

Note:

1.The total power does not include the power of screw conveyor;

2.The quantity of hopper can be designed as required;

3.The design can be changed as the customer ask.

5 With Customers.jpg

Automatic Concrete Batching Plant 60 -240 CBM Per Hour Ready Mixed MAO4000 132kw 1

                     Achieve Innovations (Changsha) Co.,Ltd.

♥. A leading Supplier in the Construction Machinery Industry for Premium quality China-made Products
♥. Specializing in Concrete Machinery, Used & Recondition, Tailor-made Equipment & Parts
♥. We are a professional team, over 10 years experience in this industry.



♥.Achieve batching plant factory focused on the domestic market and sells more than 200 sets of batching

plants in the local market every year. It has participated in many major construction projects in China, and

ranked top five in sales of the batching plant,it is the largest buyer of SICOMA mixer, which is the domestic

first-class mixer brand. Chinese customers have a better understanding of Chinese products,The huge sales

in China help us accumulated rich experience in the production and quality of our batching plant, and the large

procurement also help us reduced the procurement costs. Now, with the professional international trade ability

of the Achieve overseas team, Achieve batching plant has been exported to more than 10 countries in

Southeast Asia, Central Asia and Africa.In the future, Achieve batching plant will serve more countries and customers.

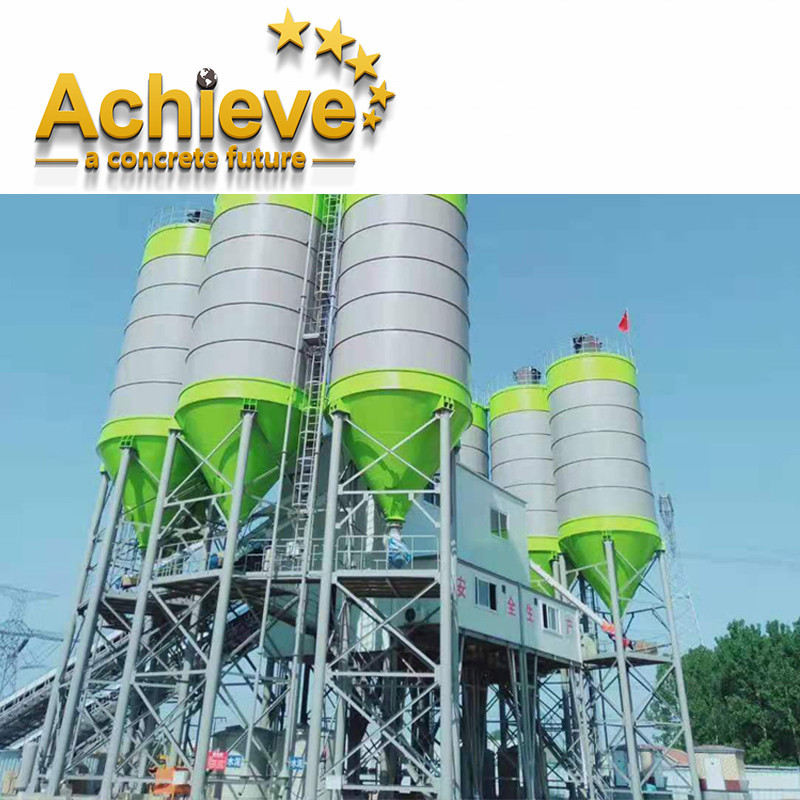

Automatic Concrete Batching Plant 60 -240 CBM Per Hour Ready Mixed MAO4000 132kw 2

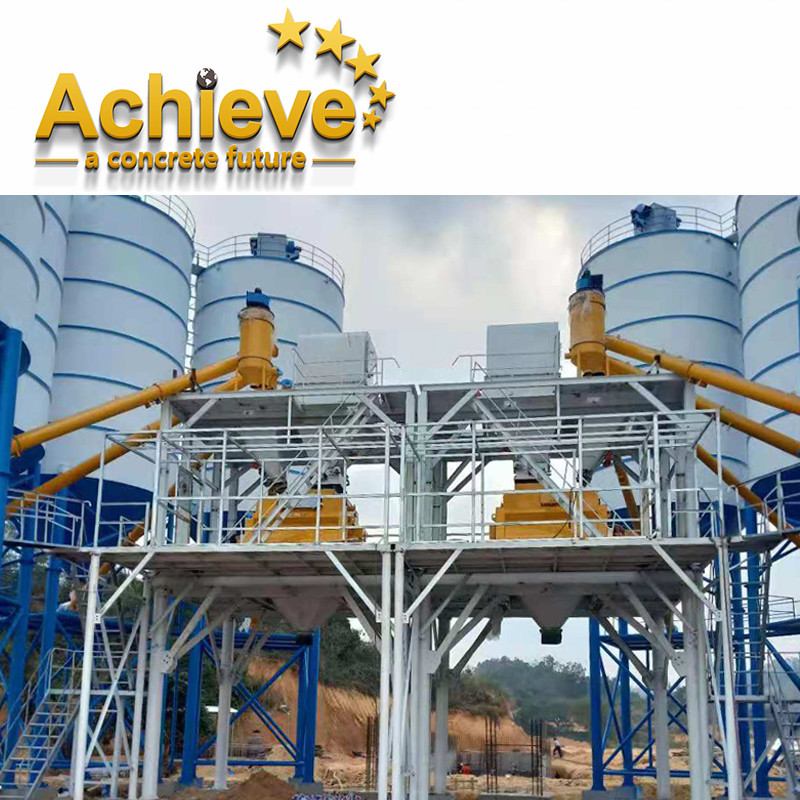

Automatic Concrete Batching Plant 60 -240 CBM Per Hour Ready Mixed MAO4000 132kw 3

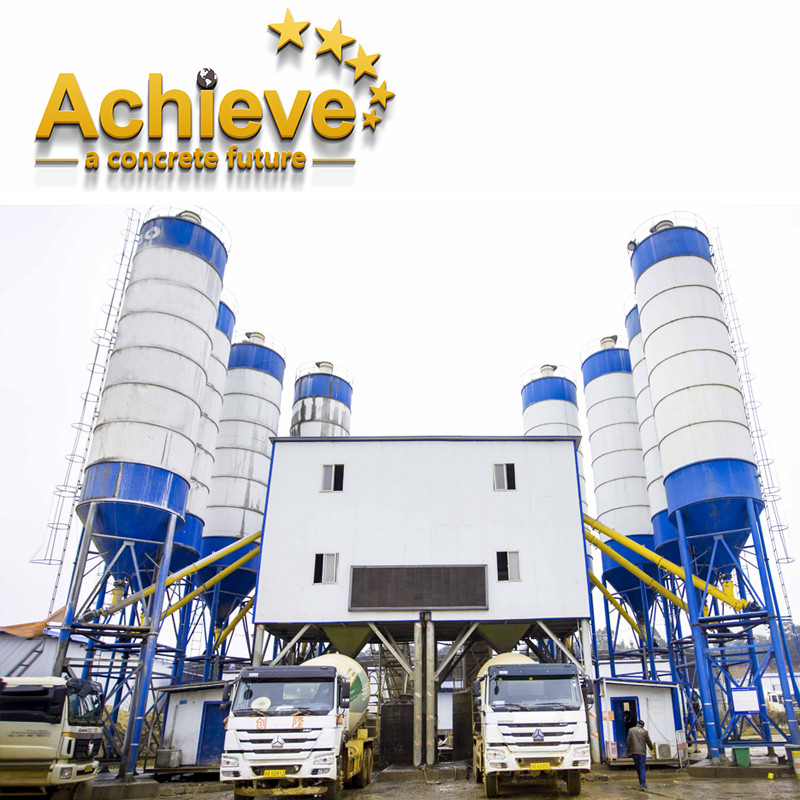

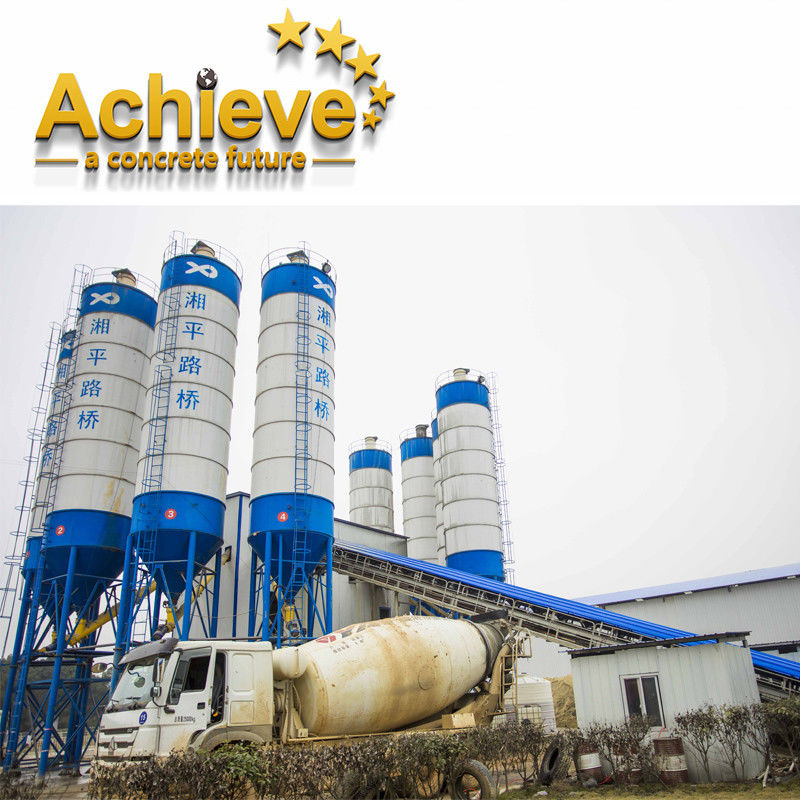

Automatic Concrete Batching Plant 60 -240 CBM Per Hour Ready Mixed MAO4000 132kw 4
