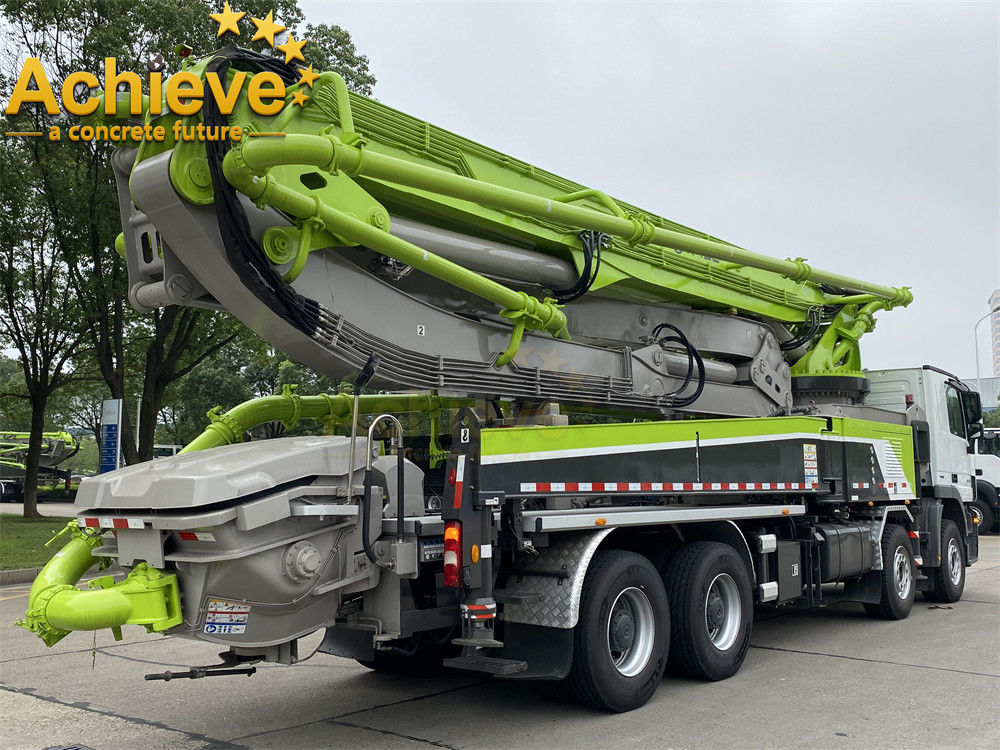

49X-6RZ Used ZOOMLION Concrete Pump MERCEDES BENZ 8X4 Green Gray

ZOOMLION 49X-6RZ on MERCEDES BENZ 8X4

• Compact in design, 49m pump mounted on a 4-axle truck.

• Efficient pump unit, ideal for long time use.

• Agile placing boom with 6 arms with unfolding height 9.5m only,which gives a wide work range.

• One side lateral support enables to work in narrow sites.

• Controller is designed for heavy duty use, with a monitor, itmonitors the pump intelligently on working data management,real-time diagnostics, alarm logging, and service interval notice.

• Rich in configurations and high quality components.

• Boom with damping technology.

• Stabilization control on boom.

• Multilingual man-machine interface system.

• PWM+CAN dual communication mode remote control

WHAT IS CONCRETE PUMP TRUCK

A Mobile Concrete Pump, also known as a Truck Mounted Mobile incorporates both a concrete pump and a placing boom mounted onto a truck chassis. Mobiles come with booms ranging from less than 20 metres to ones which can reach heights of over 60 metres. The advantage of a mobile pump is that it can turn up at a job and be pumping concrete very quickly to anywhere within the range of the boom. This makes mobile boom pumps very popular on the widest range of construction projects, being able to pump at very high volumes quickly to wherever concrete is needed with minimum labour requirements.

A concrete pump is a tool for conveying liquid concrete.

Over a period of more than half a century, concrete pumps have slowly taken over from other methods of transferring liquid concrete. A number of different designs of concrete pump were developed in the first half of the 20th century but it was Friedrich Wilhelm Schwing's company Schwing GmbH which invented the twin cylinder hydraulic concrete pump in 1957. The principle of this design was adopted by almost all other manufacturers and is still the worldwide standard design.

The pump works by one piston drawing liquid concrete into a cylinder from a hopper while the other one simultaneously pushes its concrete out into the discharge pipes. A valve which determines which cylinder is open to the concrete hopper and which one is open to the discharge pipes switches over each time the pistons reach the end point (see rock valve below and animation left - click to enlarge) and the process continues with the first cylinder now discharging and the second drawing fresh concrete from the hopper.

The Concrete Pump was particularly important in revolutionising the construction of large high rise buildings. Previously cranes had been employed to lift large buckets (or skips) full of concrete up to where it was needed. A crane could lift one bucket at a time, normally holding around 2 cubic yards of concrete.

There are many advantages in pumping concrete over this bucket and crane system. As well as being able to pump concrete much faster than buckets could lift it, it also means a constant supply of concrete to the top and the placing hoses can be positioned wherever they need to be so the liquid concrete can pour straight out of the hose where it's needed rather than having to distribute a two cubic yard mound of concrete over the desired area.
