10JB Used ZOOMLION Concrete Pump Mixer SINOTRUK HOWO 6X4 10M3

Product Details:
Place of Origin: China
Brand Name: ZOOMLION
Certification: EURO III
Model Number: 10JB HOWO 6X4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export standard.
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30Units per Month

Detail Information

Brand: ZOOMLION Color: Green + Gray
Chassis: HOWO 6X4
High Light:

10JB Used ZOOMLION Concrete Pump

,

10M3 Used ZOOMLION Concrete Pump

,

SINOTRUK HOWO 6X4

Product Description

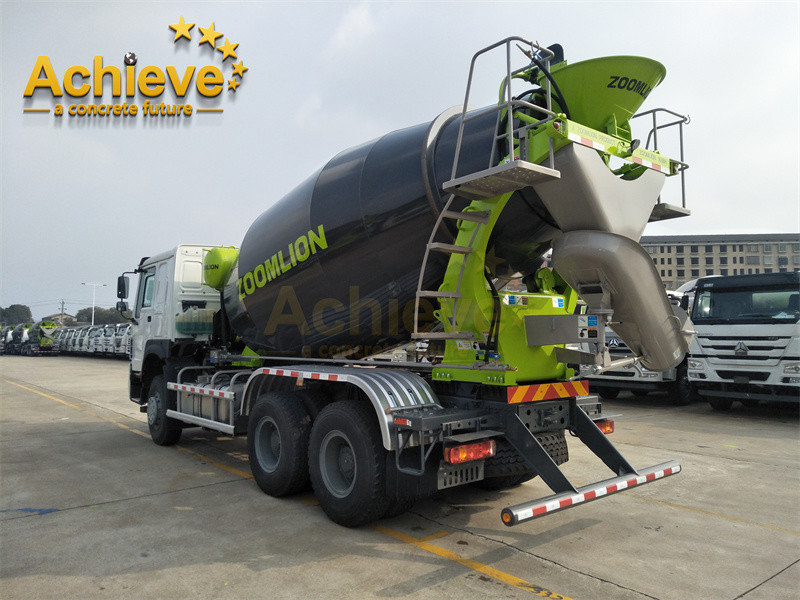

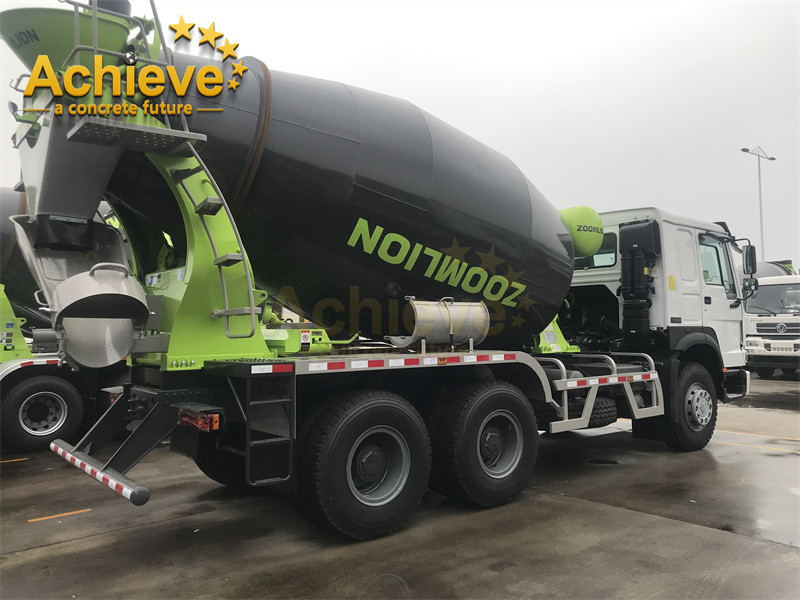

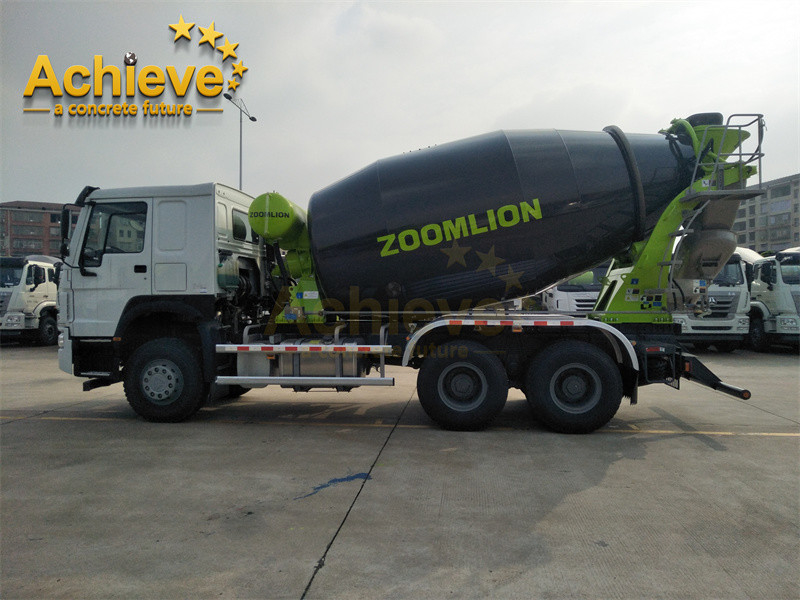

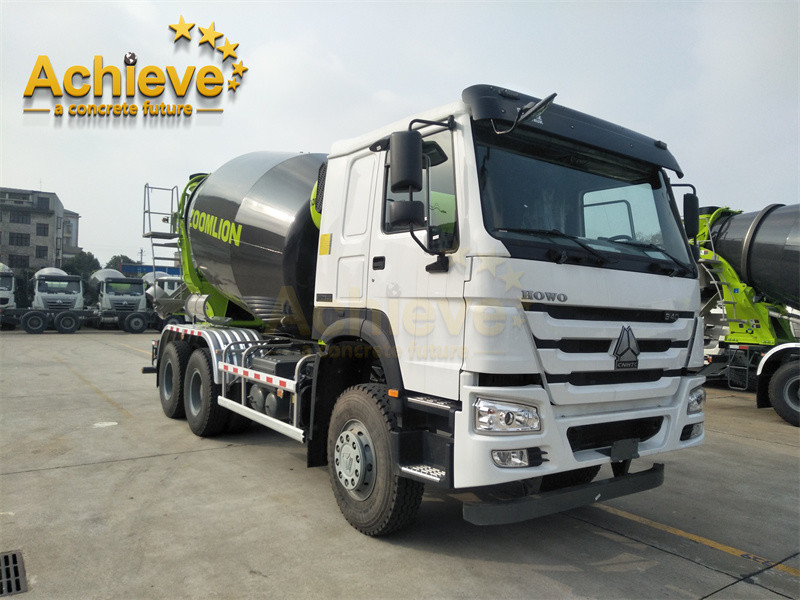

Refurbished Concrete Mixer Truck ZOOMLION 10JB on SINOTRUK HOWO 6X4 10M3



Double logarithmic variable pitch helical mixer blade enables higher charging and discharging speed, equal mixing and eliminates segregation. It is also suitable for the transportation of both dry and wet materials.



New generation technology of T-shaped blade. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance.



The geometric capacity of the agitator drum is very large and the filling rate is quite low, thus guaranteeing more mixing space. The small inclined angle and lower center of gravity help reduce the possibility of turning over.



Closed loop hydraulic system and constant hydraulic oil temperature controller are used. Key hydraulic accessories are all made by well-known brands with stable and reliable performances.



Pneumatic water supply system. The pressure is provided by the air tank on the chassis with pressure protection devices.



Three-point operation system includes one in the cab to allow control of the agitator drum and two at the rear with operation joystick at each side. Nonmetallic materials are used in joystick system to prolong lifetime and make it easy to operate as well as position accurately.



5%-10% lower fuel consumption via “Automatic Loading Mode Switching” Technology.



Feeding device with long lifespan up to 30,000 m³ due to “material wearing material” technology.



The degree of universality of vulnerable parts is high, and the cost of maintenance is low in the later stage of customers.



TECHNICAL DATA

OVERALL PARAMETER
Kerb Weight               KG               14000
Gross Weight               KG               25000
Derive Type                      6X4
Maxium Vehicle Speed             KM/H                 80
Maxium Grade Ability                %                 30
Min. Turning Diameter                M                 17
Overall Dimension              mm        9160X2500X3990

ENGINE PARAMETER
Power Rating        KW/R/Min             247/1900
Maxium Torque        N.M/R/Min         1490/1200-1500
Emission Quantity               L               9.726
Oil Consumed with Min. Ratio           g/(Kw.H)                198
DRUM PERFORMANCE PARAMETER
Agitator Capacity              M3

                10

Max. Speed of Drum             RPM               12-16
Filing Speed          M3/MIN                >=4
Discharge Speed          M3/MIN                >=3
Surplus Ratio               %                <=0.7
Range of Slump             mm               50-210







WHAT IS CONCRETE PUMP TRUCK

Special concrete transport trucks (in-transit mixers) are made to mix concrete and transport it to the construction site. They can be charged with dry materials and water, with the mixing occurring during transport. They can also be loaded from a "central mix" plant; with this process the material has already been mixed prior to loading. The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery. The interior of the drum on a concrete mixing truck is fitted with a spiral blade. In one rotational direction, the concrete is pushed deeper into the drum. This is the direction the drum is rotated while the concrete is being transported to the building site. This is known as "charging" the mixer. When the drum rotates in the other direction, the Archimedes' screw-type arrangement "discharges", or forces the concrete out of the drum. From there it may go onto chutes to guide the viscous concrete directly to the job site. If the truck cannot get close enough to the site to use the chutes, the concrete may be discharged into a concrete pump, connected to a flexible hose, or onto a conveyor belt which can be extended some distance (typically ten or more metres). A pump provides the means to move the material to precise locations, multi-floor buildings, and other distance-prohibitive locations. Buckets suspended from cranes are also used to place the concrete. The drum is traditionally made of steel but on some newer trucks, fibreglass has been used as a weight reduction measure.





10JB Used ZOOMLION Concrete Pump Mixer SINOTRUK HOWO 6X4 10M3 0

ZOOMLION HBT80.16.174RSU Concrete Stationary Pump Used Concrete Pump Trailer Pump Refurbished10JB Used ZOOMLION Concrete Pump Mixer SINOTRUK HOWO 6X4 10M3 2ZOOMLION HBT80.16.174RSU Concrete Stationary Pump Used Concrete Pump Trailer Pump Refurbished10JB Used ZOOMLION Concrete Pump Mixer SINOTRUK HOWO 6X4 10M3 410JB Used ZOOMLION Concrete Pump Mixer SINOTRUK HOWO 6X4 10M3 5

10JB Used ZOOMLION Concrete Pump Mixer SINOTRUK HOWO 6X4 10M3 6
