MAO4000 Universal Concrete Batching Plant 240 CBM Per Hour 4.1m

Product Details:
Place of Origin: Changsha,China
Brand Name: Achieve
Model Number: HZS240
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 187500--240000 per set
Packaging Details: nude
Delivery Time: 35 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month

Detail Information

Application: Building Works, Construction Projects, Bridges, Docks, Airport Power Type: Electric
Mixer: MAO4000 Condition: New
Material: Steel After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Installation, Commissioning And Training
Color: Customized, Blue, Changable, Yellow, Etc Discharging Height: 4.1m
Capacity: 240 CBM Per Hour Product Name: Concrete Batching Plant
Control System: Automatic PLC Control Cement Silo: 200t
Productivity: ≤240m3/h
High Light:

Concrete Batching Plant

,

240 CBM Concrete Batching Plant

,

4.1m universal batching plant

Product Description

240 CBM per hour concrete batching plant Electronic scale





Electronic scale

The electronic scale is used mainly in measuring water, additives, powder and aggregates. Many models

with many installation sizes and measuring ranges are available. The electronic scale consists mainly of

the measuring elements, control mechanism, executing mechanism and correcting devices.



1. Main functions and characteristics

- Automatic compensation of unbalanced sensor, eliminate error of imbalance by suspending;

- Stable mechanical vibration to eliminate digital fluctuations caused by mechanical vibration;

- Simple calibration and easy maintenance;

- Automatic compensation of fall;

- Full digital calibration with software;

- Interface for prescription printing output;

- Serial communication interface for computer.



       2 .Weighing principles

When batching is required, the control system will issue batching commands for fast batching operation.

The materials will enter the measuring hopper and sensors acquire weight data and cable them to the

weighing module. The module will then send the converted weight signals to the industrial control computer,

which will process these signals in a coordinated way. In consideration of the tare weight, fall and accuracy

of the final weight, the system will produce an advanced value. When the weight has come to this value, the

computer will signal to slow down batching for low-speed operation. When the weight has come to the pre-set

value, batching will stop, thus completing the batching process.



3. Calibration method

       - Test connections to ensure that sensors have been installed solidly and reliably.

- Adjust testing forces and weighing sensors to eliminate gravity deviations of bearers.

       - Switch on power to the system to set up the parameters of scale functions.

          Adjust the system to zero.

        - Start batching after zero adjustment

        - Carry out batching and ascertain its over measurement. Produce an advanced value of batching,

          based on this over measurement.



4. Maintenance and service

      -Avoid dramatic temperature changes, vibrations or wind strikes;

   -Ensure satisfactory earth of the system, the earth wire must not be shared by other equipment;

     -Keep system cables far away from the AC supply;

     -Do not bind system analog signal input cables together with its output cables;

     -Install the system in such a way as to make control cables as short as possible;

     -Install sensors horizontally and stably;

     -Avoid welding operations on the measuring hopper after completion of sensor installation;

     -Start up the equipment half an hour before its calibration so as to preheat the equipment for a sufficient

      period of time to ensure stable sensor and display temperature.



MODEL HZS 240
Theoretical production(m3/h) 240
Mixer Model JS4000
Power(kw) 2*75
Output(L) 4000
Batcher Hopper capacity(m3) 24
Hopper quantity 4
Hopper Quantily 500
Weighing Scope And Accuracy Aggregate(kg) 10000±2%
Cement(kg) 2000±1%
Powder(kg) 2000±1%
Water(kg) 900±1%
Admixture(kg) 30±1%
Total Power(kw) 320
Discharge Height(m) 4.1

Note:

1.The total power does not include the power of screw conveyor;

2.The quantity of hopper can be designed as required;

3.The design can be changed as the customer ask.



5 With Customers.jpg

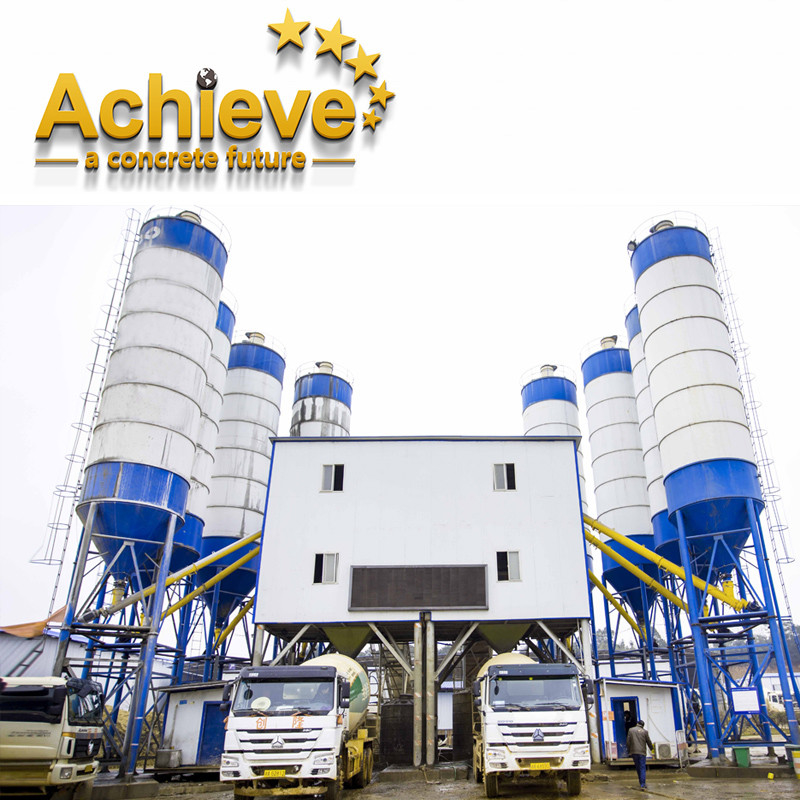

MAO4000 Universal Concrete Batching Plant 240 CBM Per Hour 4.1m 1

                     Achieve Innovations (Changsha) Co.,Ltd.

♥. A leading Supplier in the Construction Machinery Industry for Premium quality China-made Products
♥. Specializing in Concrete Machinery, Used & Recondition, Tailor-made Equipment & Parts
♥. We are a professional team, over 10 years experience in this industry.



♥.Achieve batching plant factory focused on the domestic market and sells more than 200 sets of batching

plants in the local market every year. It has participated in many major construction projects in China, and

ranked top five in sales of the batching plant,it is the largest buyer of SICOMA mixer, which is the domestic

first-class mixer brand. Chinese customers have a better understanding of Chinese products,The huge sales

in China help us accumulated rich experience in the production and quality of our batching plant, and the large

procurement also help us reduced the procurement costs. Now, with the professional international trade ability

of the Achieve overseas team, Achieve batching plant has been exported to more than 10 countries in

Southeast Asia, Central Asia and Africa.In the future, Achieve batching plant will serve more countries and customers.

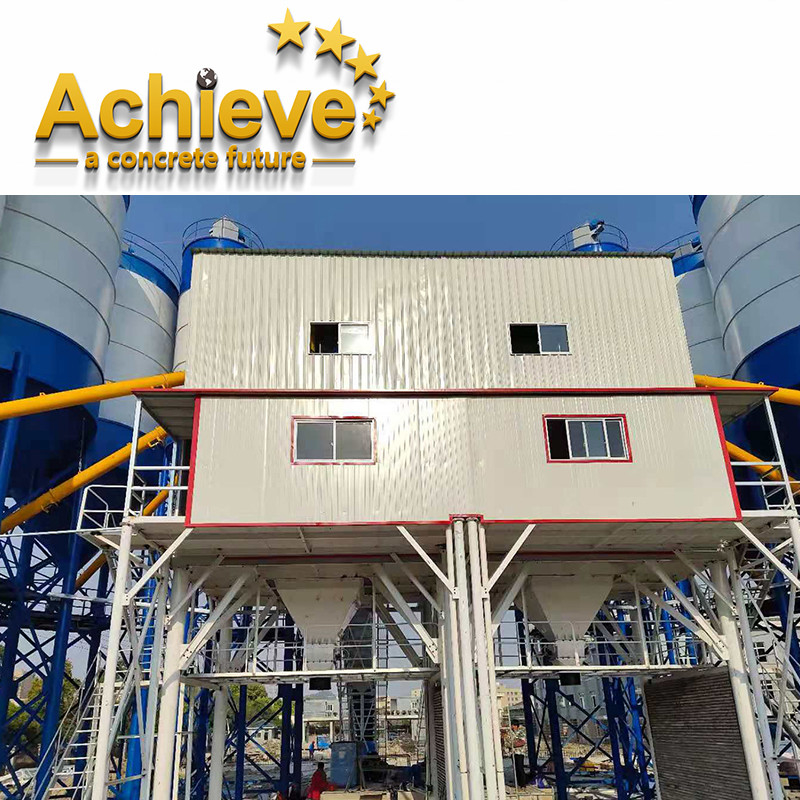

MAO4000 Universal Concrete Batching Plant 240 CBM Per Hour 4.1m 2

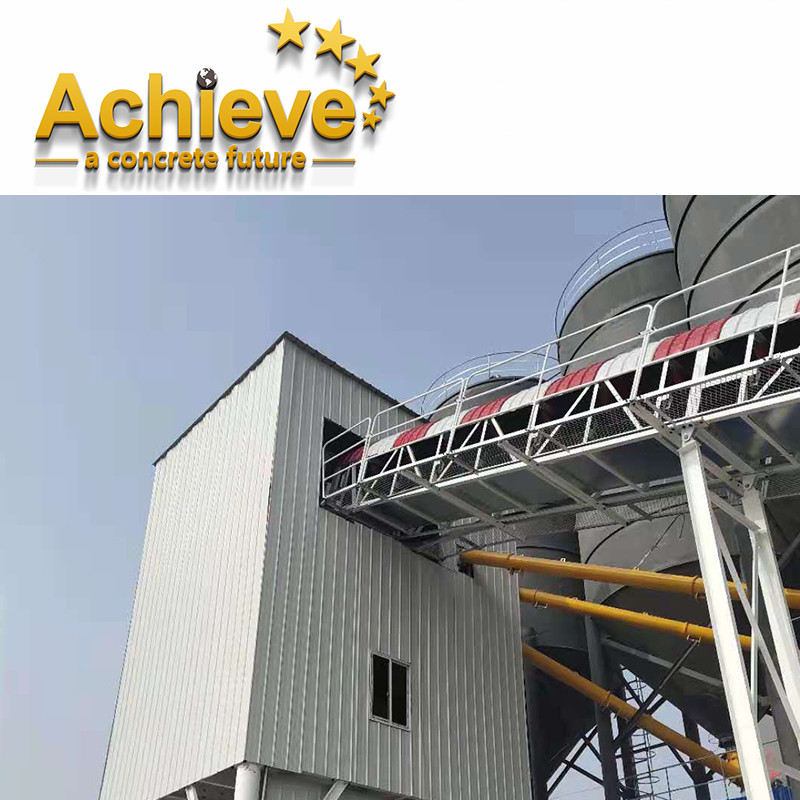

MAO4000 Universal Concrete Batching Plant 240 CBM Per Hour 4.1m 3

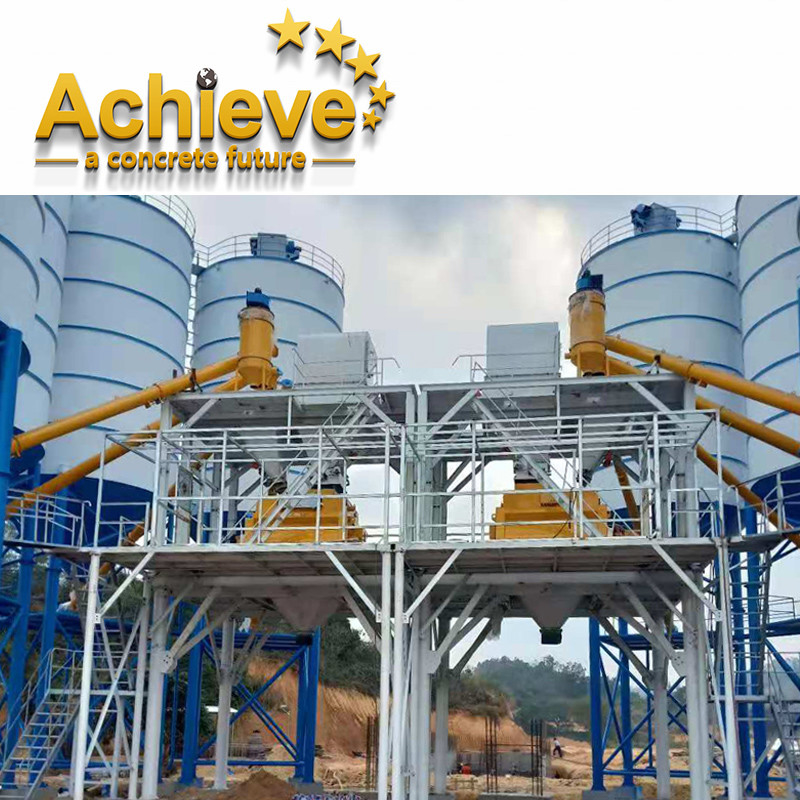

MAO4000 Universal Concrete Batching Plant 240 CBM Per Hour 4.1m 4
