Place of Origin:
Hunan, China
Brand Name:
ZOOMLION
Contact Us
|

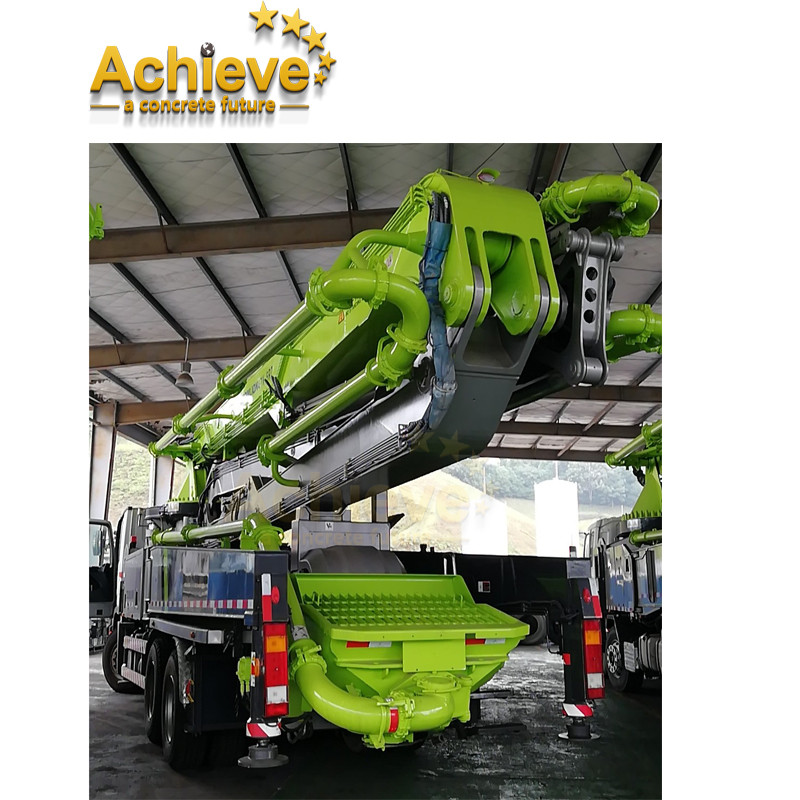

Model |
ZLJ5336THB 47X-5RZ |
|
|
Pumping system |
Max. Theor. output m3/h |
120/70 |
|
|
Max. Theor. concrete output Pressure MPa |
7/11 |
|
|
Rated working pressure MPa |
35 |
|
|
Pumping frequency min-1 |
22/13 |
|
|
Hopper capacity L |
550 |
|
|
Filling height mm |
1540 |
|
|
Hydraulic system type |
Close loop |
|
|
Distribution valve |
S valve |
|
|
Oil cylinder dia.×stroke mm |
φ130×2100 |
|
|
Concrete cylinder dia.×stroke mm |
φ230×2100 |
|
|
Hydraulic oil cooling |
Air cooling |
|
|
Recommended concrete slump cm |
12~23 |
|
|
Max. aggregate dimension mm |
40 |
|
Placing boom |
Structure type |
47X-5RZ |
|
|
Placing depth m |
47 |
|
|
Horizontal distance m |
42.7 |
|
|
Placing depth m |
33.4 |
|
|
Slewing angle |
±270° |
|
|
Boom number |
5 |
|
|
The length of boom section mm |
9380/8130/7930/8610/8950 |
|
|
Sections folding angle |
90°/180°/180°/250°/180° |
|
|
Pipe diameter mm |
125 |
|
|
End hose length mm |
3000 |
|
|
Min. height of opening placing boom mm |
9455 |
|
|
Outriggers span (front×rear×side) mm |
9230×9680×9385 |
|
Chassis and the whole machine |
Chassis model |
Actros 3341 6×4 |
|
|
Wheelbase mm |
4500+1350 |
|
|
Engine type |
OM501LA |
|
|
Engine power kW/(r/min) |
300/1800 |
|
|
Engine moment N.m/(r/min) |
2000/1080 |
|
|
Maximum displacement cc |
11946 |
|
|
Oil tank cubage L |
400 |
|
|
Tail gas exhaust standard |
Euro. Ⅲ |
|
|
Total weight kg |
33000 |
|
|
Overall dimensions mm |
12060×2500×4000 |
