Place of Origin:
Hunan
Brand Name:
ZOOMLION
Model Number:
HBT80.16.174RSU
Contact Us

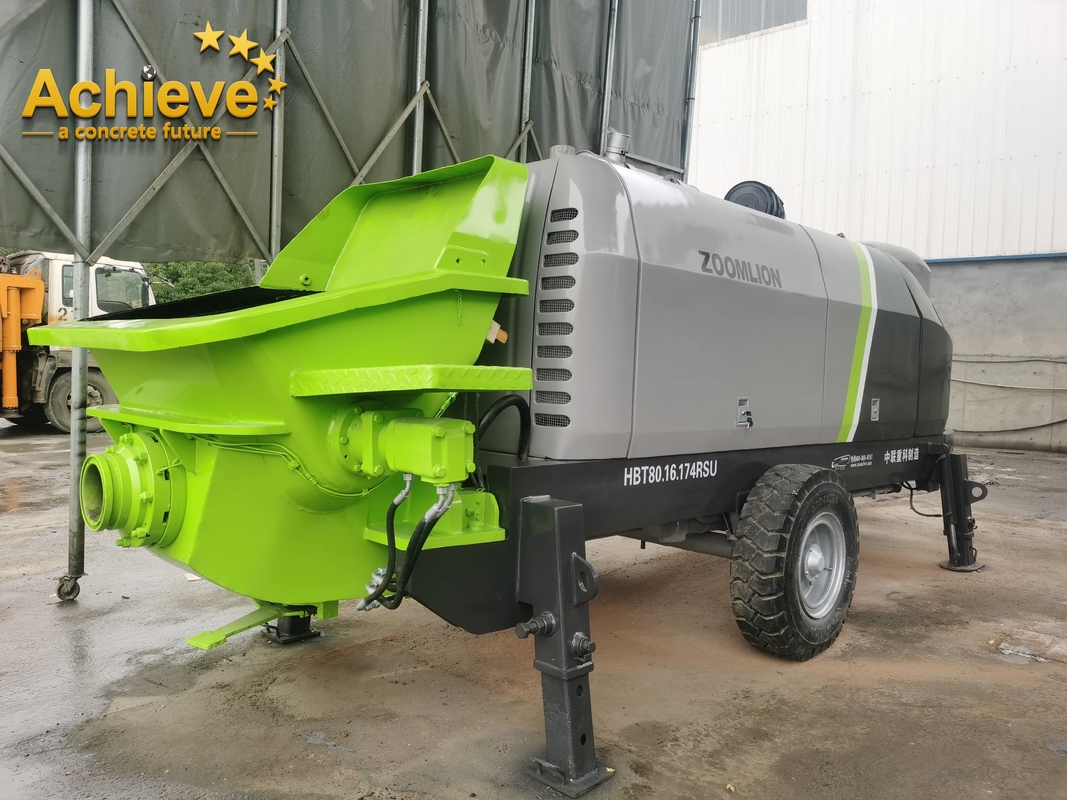

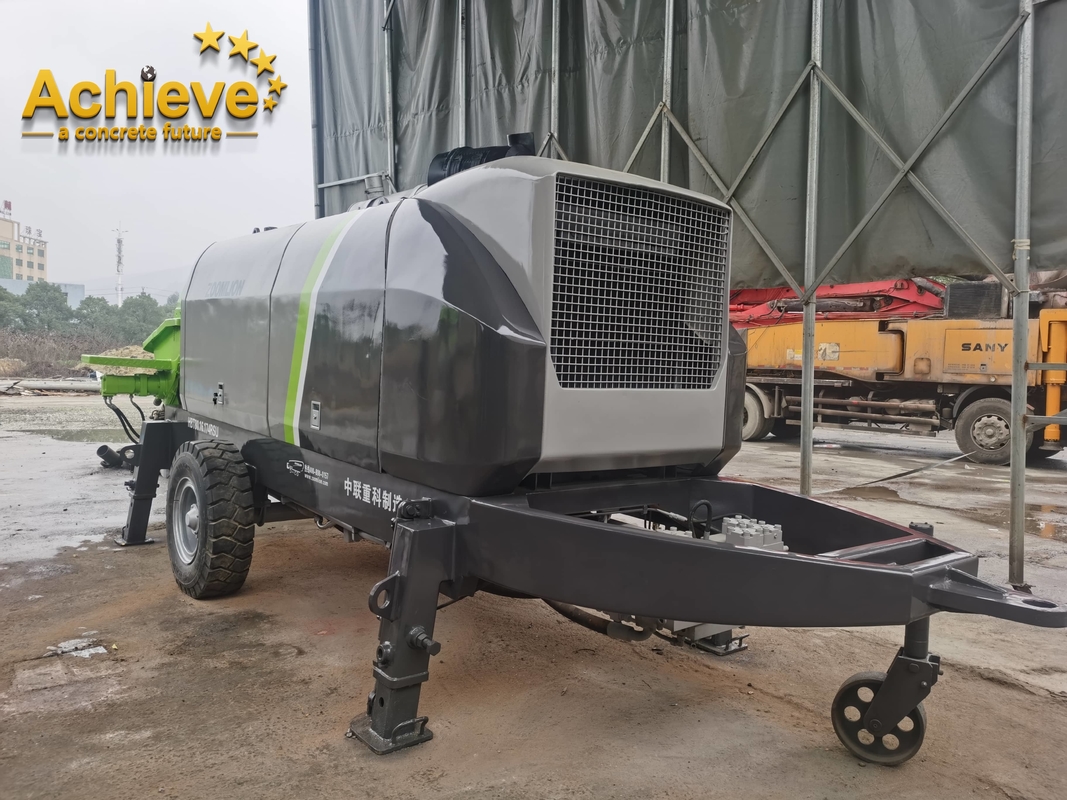

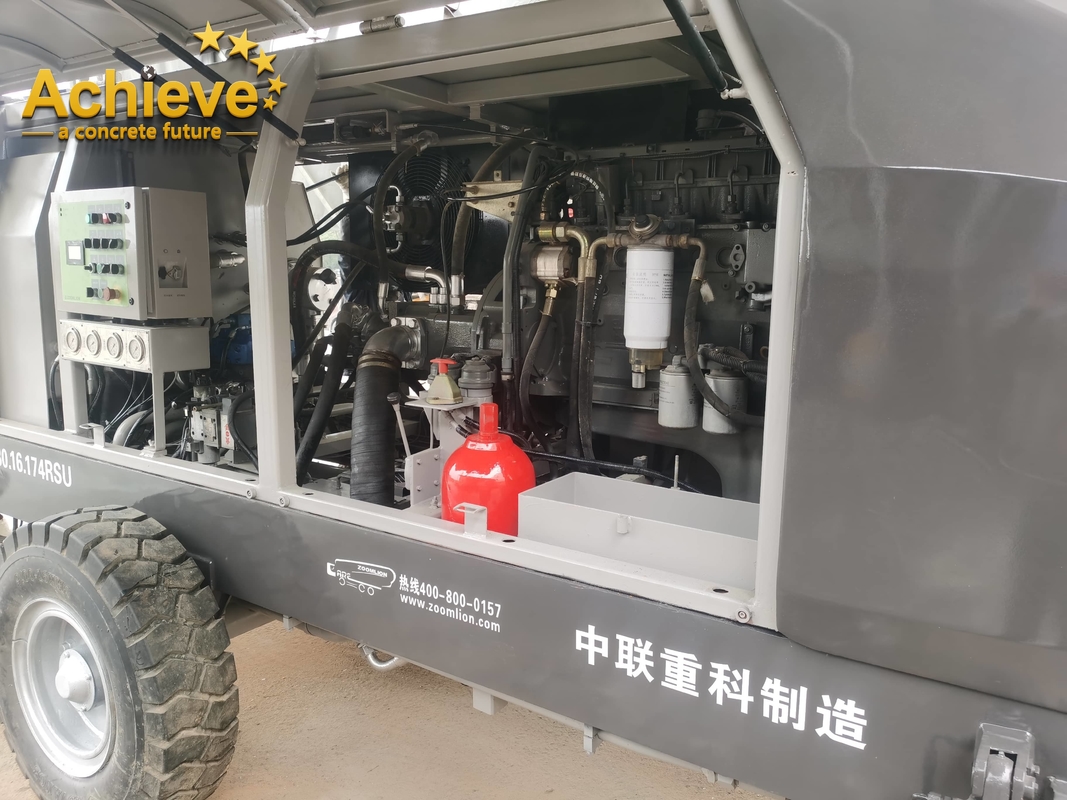

ZOOMLION HBT80.16.174RSU Concrete Stationary Pump
| Items | Units | Parameters | |
| 80.16.174RSU | |||
| Whole performance of pump | Max. theo. concrete output (L./H.) | m3/h | 85/55 |
| Max.concrete pumping pressure (H. /L.) | MPa | 16/9 | |
| Distributing valve style | / | S valve | |
| Concrete cylinder diameter×stroke | mm | φ200×1800 | |
| Hopper capacity×feeding height | L×mm | 600×1400 | |
| Outlet diameter | mm | φ180 | |
| Power system | Diesel engine model | / | BF6M1013EC |
| Rated power | kW | 174 | |
| Rated speed | r/min | 2300 | |
| Hydraulic system | Circuit type | / | Open circuit |
| Pumping system pressure | MPa | 34 | |
| Distributing system pressure | MPa | 23 | |
| Mixing system pressure | MPa | 14 | |
| Max mixing speed | r/min | 40 | |
| Capacity of oil tank | L | 600 | |
| Other parameters |
Max. aggregate diameter/ Inside diameter of delivering pipe |
mm |
50/Φ150 40/Φ125 |
| Inside diameter of delivering pipe | mm | φ125/φ150 | |
| Dimensions:length×width×height | mm | 6800×2200×2700 | |
| Total weight | kg | 7000 | |
