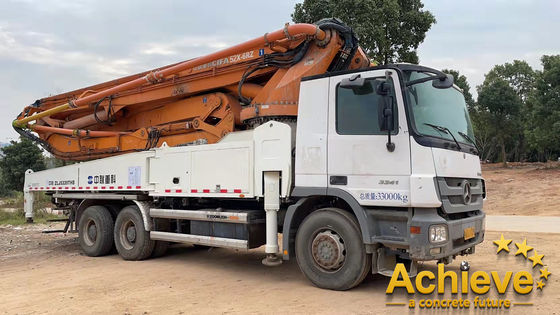

Used ZOOMLION49X-6RZ Beton pumping car 49 meter on BENZ Chassis
| Model | ZOOMLION49X-6RZ | ||
| Pumping system | Max. Theor. output | m3/h | 170/120 |
| Max. Theor. concrete output Pressure | MPa | 8.3/12 | |
| Rated working pressure | MPa | 35 | |
| Pumping frequency | min-1 | 25/18.5 | |
| Hopper capacity | L | 600 | |
| Filling height | 1540 | ||
| Hydraulic system type | Open loop | ||
| Distribution valve | S valve | ||
| Oil cylinder dia.×stroke | mm | Φ150mm×2100mm | |
| Concrete cylinder dia.×stroke | mm | Φ260mm×2100mm | |
| Hydraulic oil cooling | Air cooling | ||
| Recommended concrete slump | cm | 12~23 | |
| Max. aggregate dimension | mm | 40 | |
| Placing boom | Structure type | 49X-6RZ | |
| Placing depth | m | 48.1 | |
| Horizontal distance | m | 43.5 | |
| Placing depth | m | 34.5 | |
| Slewing angle | ±270° | ||
| Boom number | 6 | ||
| The length of boom section | mm | 9480/7800/7590/9475/5260/4500 | |
| Sections folding angle | 90°/180°/180°/240°/195°/120° | ||
| Pipe diameter | mm | 125 | |
| End hose length | mm | 3000 | |
| Min. height of opening placing boom | mm | 11000 | |
| Outriggers span (front×rear×side) | mm | 9300×9800×9950 | |
| Boom kit | Boom kit weight | kg | 28230 |
| Boom kit overall dimensions | mm | 9960×2500×3600 | |
| Others | Lubrication mode | Automatic lubrication | |
| Oil tank volume | L | 800 | |
| Control mode | Manual+remote control | ||
| Maximum water pressure | MPa | 2/12 | |
| Water tank volume | L | 800 | |
| Pipe cleaning mode | Water cleaning/dry cleaning | ||
Boom,swivel head,swivel framework,base structure and outriggers consist boom system.
3.1.1 Wide placing range: the 47X-5RZ placing boom’s horizontal radius is 42.7m, and the maximum vertical reach is 47m.
3.1.2 Equipped with X type outrigger, which makes the machine has higher adaptability.
3.1.3 Intelligent rotation buffer technology for boom
Introduce flexible control when boom is started, rotated and stoped, this reduces the impact and vibration for the boom ,which make the whole machine work more steady ,reliable and safe.
3.2.1 The pumping unit optimize design by ZOOMLION: when the suction area and stroke have increased,it can make the suction efficiency achieve to over 80% of the academic numerical value and higher 10%-15% than trade.
