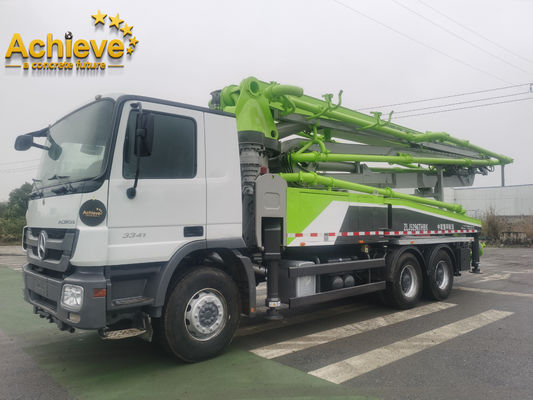

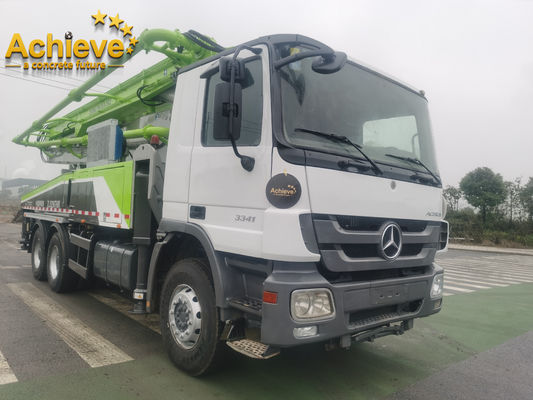

38X-5RZ Renewed Zoomlion Concrete Pump With Mercedes BENZ 3341 Chassis

38X-5RZ Renewed Zoomlion Concrete Pump With Mercedes BENZ 3341 Chassis

Used 35MPa Zoomlion Concrete Pump

BENZ 3341 Chassis Zoomlion Concrete Pump

550L Used Zoomlion Concrete Pump

Place of Origin:

China

Brand Name:

ZOOMLION

Certification:

EURO III

Model Number:

38X-5RZ ZOOMLION 6X4

Contact Us

Request A Quote
Product Details
Brand:
ZOOMLION
Color:
Green + Gray
Chassis:
Mercedes BENZ 3341
Rated Working Pressure:
35MPa
Pumping Frequency:
27/17min-1
Hopper Capacity:
550L
Product Description



38X-5RZ Renewed Zoomlion Concrete Pump With Mercedes BENZ 3341 Chassis 0

Renewed Concrete Pump Truck ZOOMLION 38X-5RZ on Mercedes BENZ 6x4

Model ZLJ5297THB 38X-5RZ
Pumping system Max. Theor. output m3/h 140/90
Max. Theor. concrete output Pressure MPa 7/11
Rated working pressure MPa 35
Pumping frequency min-1 27/17
Hopper capacity L 550
Filling height   1540
Hydraulic system type   Open loop
Distribution valve   S valve
Oil cylinder dia.×stroke mm Φ130×2100
Concrete cylinder dia.×stroke mm Φ230×2100
Hydraulic oil cooling   Air cooling
Recommended concrete slump cm 12~23
Max. aggregate dimension mm 40
Placing boom Structure type   38X-5RZ
Placing depth m 38
Horizontal distance m 34
Placing depth m 24.9
Slewing angle   ±270°
Boom number   5
The length of boom section mm 8890/8100/8105/5405/3500
Sections folding angle   90°/180°/180°/250°/90°
Pipe diameter mm 125
End hose length mm 3000
Min. height of opening placing boom mm 9610
Outriggers span (front×rear×side) mm 6190×8345×7045
Chassis and the whole machine Chassis model   ACTROS 3341 6×4
Wheelbase mm 4500+1350
Engine type   OM501LA
Engine power kW/(r/min) 300/1800
Engine moment N.m/(r/min) 2000/1080
Maximum displacement cc 11946
Oil tank cubage L 400
Tail gas exhaust standard   Euro. Ⅲ
Total weight kg 28700
Overall dimensions mm 11940×2500×3900
Others Lubrication mode   Automatic lubrication
Oil tank volume L 650
Control mode   Manual+remote control
Maximum water pressure MPa 7
Water tank volume L 400
Pipe cleaning mode   Water cleaning/dry cleaning





3.1 Performance of the whole

3.1.1 Chassis:This truck-mounted concrete pump adopts BENZ chassis.

3.1.2 Intelligent rotation buffer technology for boom

Introduce flexible control when boom is started, rotated and stoped, this reduces the impact and vibration for the boom ,which make the whole machine work more steady ,reliable and safe.

3.2 Boom system

Boom,swivel head,swivel framework,base structure and outriggers consist boom system.

3.2.1 Wide placing range: the 38X-5RZ placing boom’s horizontal radius is 34m, and the maximum vertical reach is38m.

3.2.2 Light weight: strong rigidity Boom frame is made of high strength alloy steel, which designed with the newest structure. Thus the placing boom becomes less weight with better mechanics performance and much stronger rigidity.

3.2.3 More steady: equipped with slewing reducer, slewing bearing which with advanced technique in world and electro-hydraulic proportional direction valve, etc. All of these ensure the boom’s motion of slewing and extension more steady.

3.2.4 High reliability: electro-hydraulic proportional valves and compensation valve with secondary pressure relief valves are all original ones imported from Germany HAWE. This prevents boom going at excessive speed while it being folded back. And this also prevents boom being damaged in case of the increase of pressure in boom cylinders caused by outside force. So, the reliability of the whole machine is improved effectively.

3.3 Pumping system

3.3.1 The pumping unit optimize design by ZOOMLION: when the suction area and stroke have increased,it can make the suction efficiency achieve to over 80% of the academic numerical value and higher 10%-15% than trade.
