Renewed Concrete Pump Truck Zoomlion with Mercedes BENZ 4141 Chassis

Product Details:
Place of Origin: China
Brand Name: ZOOMLION
Certification: EURO III
Model Number: 47X-5RZ ZOOMLION 8X4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export standard.
Delivery Time: 10 working DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 3 Units per Month

Detail Information

Brand: ZOOMLION Color: Green + Gray
Chassis: Mercedes BENZ 4141 Max. Theor. Output: 170/120m3/h
Max. Theor. Concrete Output Pressure: 8.3/12MPaMPa Distribution Valve: S Valve
High Light:

Used Zoomlion Concrete Pump Truck

,

BENZ 4141 Concrete Pump Truck

,

170m3/h Used Zoomlion Concrete Pump

Product Description

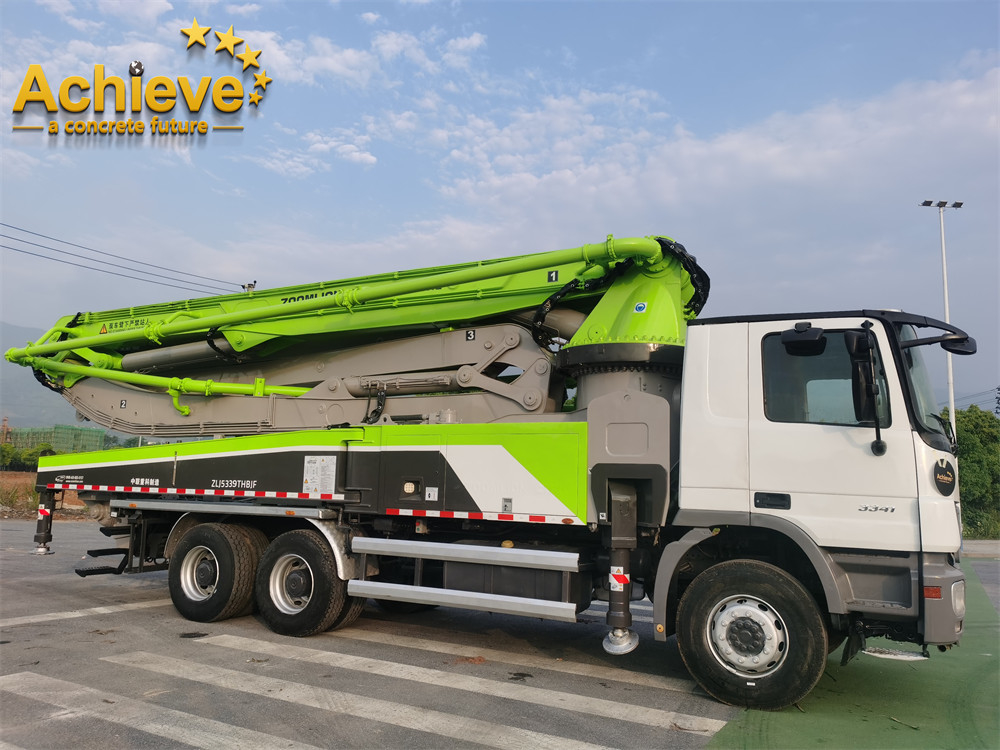

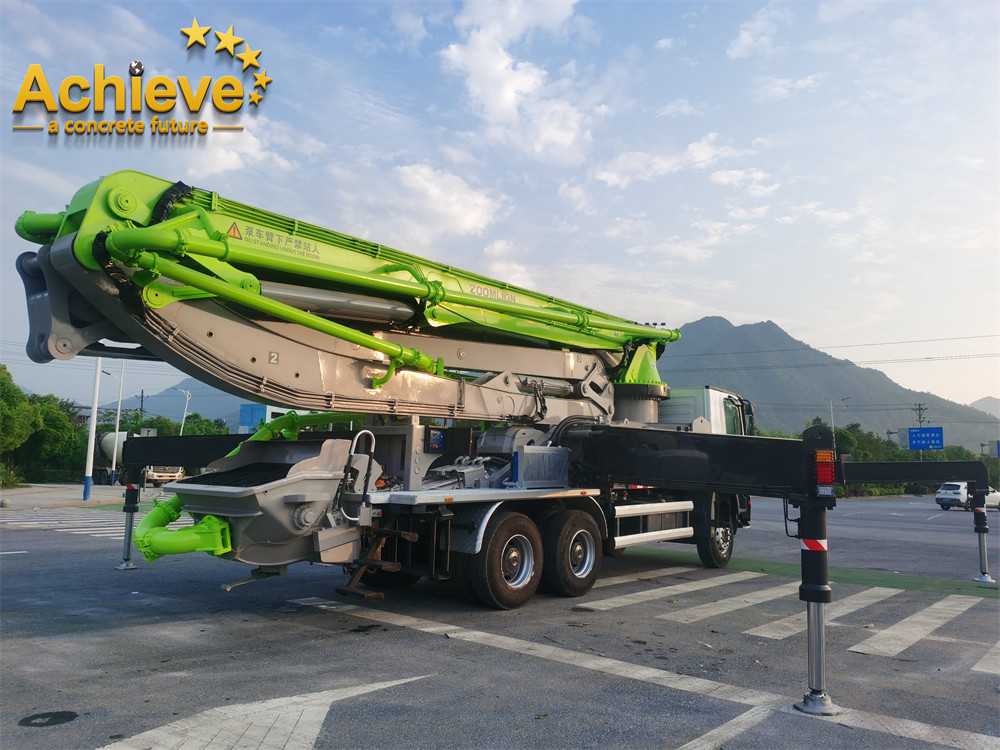

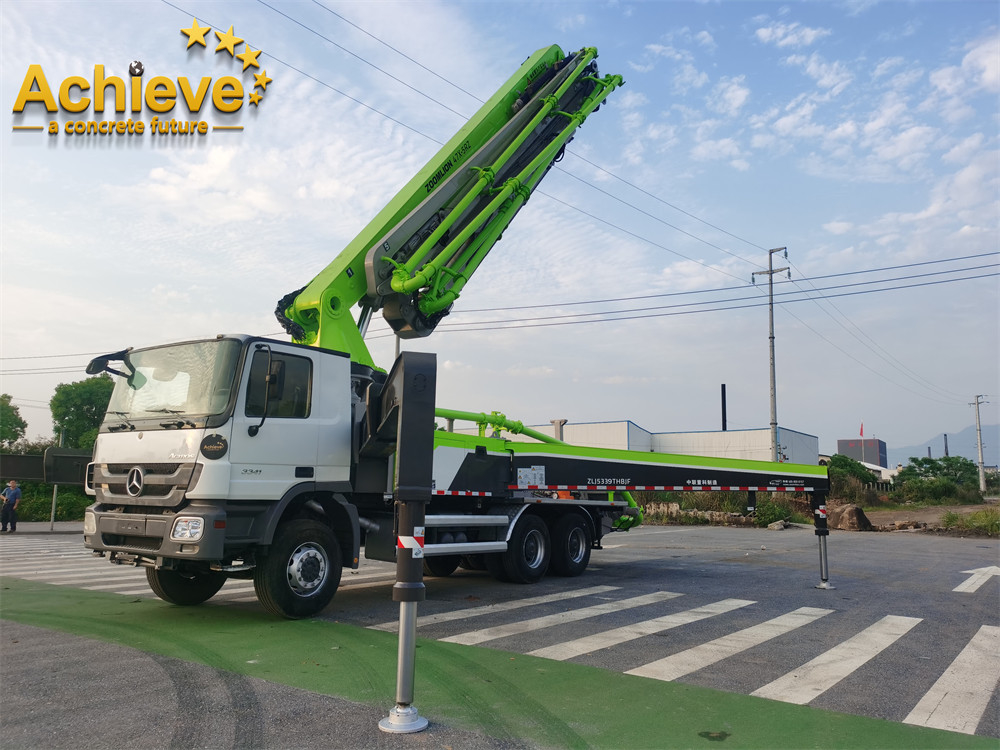

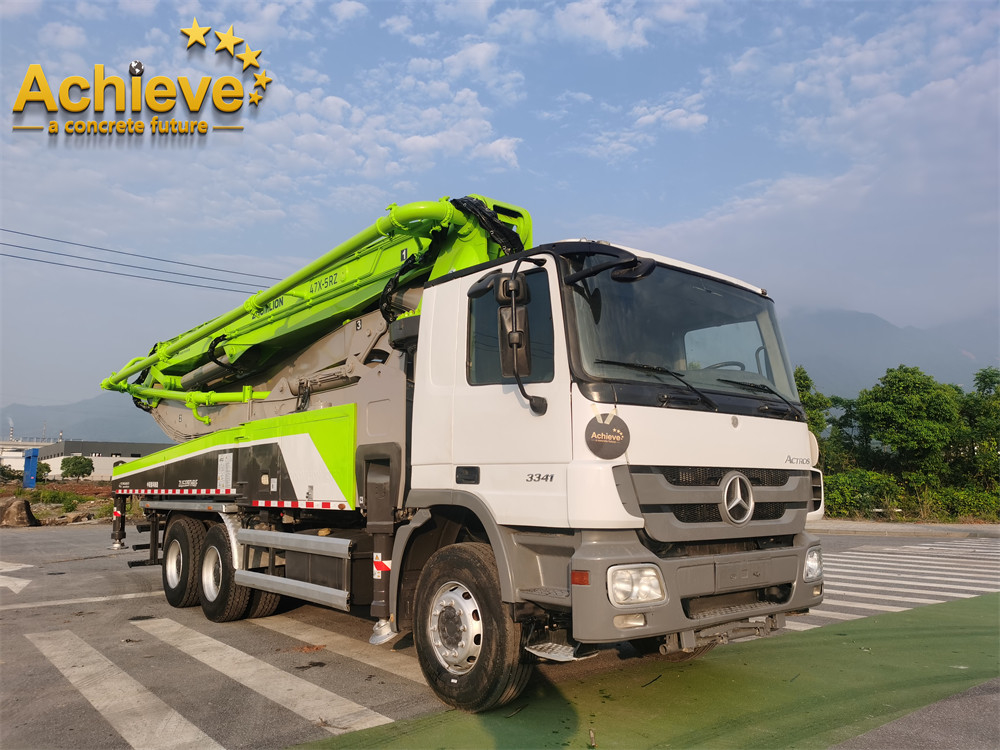

Renewed Concrete Pump Truck Zoomlion with Mercedes BENZ 4141 Chassis 0

Renewed Concrete Pump Truck ZOOMLION 47X-5RZ on Mercedes BENZ 8x4

Model ZLJ5339THB 47X-5RZ
Pumping system Max. Theor. output m3/h 170/120
Max. Theor. concrete output Pressure MPa 8.3/12
Rated working pressure MPa 35
Pumping frequency min-1 25/18.5
Hopper capacity L 600
Filling height   1540
Hydraulic system type   Open loop
Distribution valve   S valve
Oil cylinder dia.×stroke mm Φ150×2100
Concrete cylinder dia.×stroke mm Φ260×2100
Hydraulic oil cooling   Air cooling
Recommended concrete slump cm 12~23
Max. aggregate dimension mm 40
Placing boom Structure type   47X-5RZ
Placing depth m 47
Horizontal distance m 42.7
Placing depth m 33.4
Slewing angle   ±270°
Boom number   5
The length of boom section mm 9380/8130/7930/8610/8950
Sections folding angle   90°/180°/180°/240°/180°
Pipe diameter mm 125
End hose length mm 3000
Min. height of opening placing boom mm 9700
Outriggers span (front×rear×side) mm 9310×9675×9420
Chassis and the whole machine Chassis model   ACTROS 3341 6×4
Wheelbase mm 4500+1350
Engine type   OM501LA
Engine power kW/(r/min) 300/1800
Engine moment N.m/(r/min) 2000/1080
Maximum displacement cc 11946
Oil tank cubage L 400
Tail gas exhaust standard   欧Ⅳ
Total weight kg 34000
Overall dimensions mm 12020×2500×4000
Others Lubrication mode   Automatic lubrication
Oil tank volume L 780
Control mode   Manual+remote control
Maximum water pressure MPa 7
Water tank volume L 400
Pipe cleaning mode   Water cleaning/dry cleaning
