Place of Origin:
Hunan, China
Brand Name:

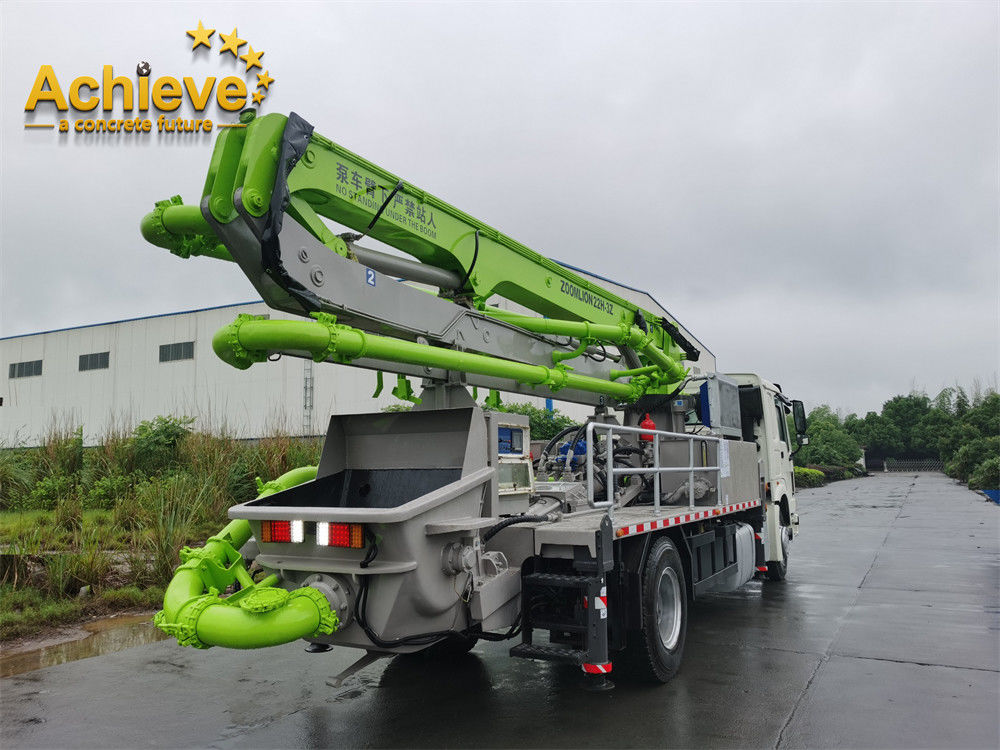

ZOOMLION
Model Number:
22H-3Z
Contact Us
| Model | ZOOMLION22H-3Z | ||
| Pumping system | Max. Theor. output | m3/h | 100/60 |
| Max. Theor. concrete output Pressure | MPa | 8/12 | |
| Rated working pressure | MPa | 35 | |
| Pumping frequency | min-1 | 14/23 | |
| Hopper capacity | L | 550 | |
| Filling height | 1540 | ||
| Hydraulic system type | Open loop | ||
| Distribution valve | S valve | ||
| Oil cylinder dia.×stroke | mm | Φ140mm×1700mm | |
| Concrete cylinder dia.×stroke | mm | Φ230mm×1700mm | |
| Hydraulic oil cooling | Air cooling | ||
| Recommended concrete slump | cm | 12~23 | |
| Max. aggregate dimension | mm | 40 | |
| Placing boom | Structure type | 22H-3Z | |
| Placing depth | m | 21.6 | |
| Horizontal distance | m | 18.2 | |
| Placing depth | m | 11.4 | |
| Slewing angle | 365° | ||
| Boom number | 3 | ||
| The length of boom section | mm | 6900/5700/5600 | |
| Sections folding angle | 90°/180°/250° | ||
| Pipe diameter | mm | 125 | |
| End hose length | mm | 3000 | |
| Min. height of opening placing boom | mm | 6410 | |
| Outriggers span (front×rear×side) | mm | 3500×2290×5300 | |
| Boom kit | Total weight | kg | 10380 |
| Overall dimensions | mm | 7990×2500×3205 | |
| Others | Lubrication mode | Automatic lubrication | |
| Oil tank volume | L | 800 | |
| Control mode | Manual+remote control | ||
| Maximum water pressure | MPa | 7 | |
| Water tank volume | L | 400 | |
| Pipe cleaning mode | Water cleaning/dry cleaning | ||
| SN | Name | Company | Country |
| 1 | Placing boom | ZOOMLION | China |
| 2 | Base structure and outrigger | ZOOMLION | China |
| 3 | Swivel reducer | BREVINI/DINAMICOIL | Italy |
| 4 | Transfer box | Stiebel | Germany |
